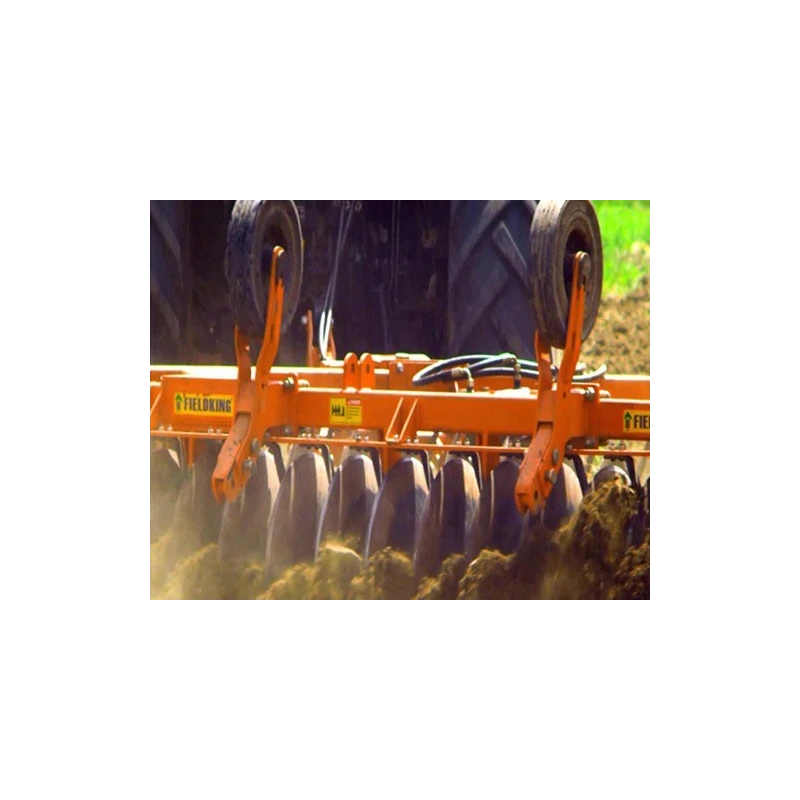

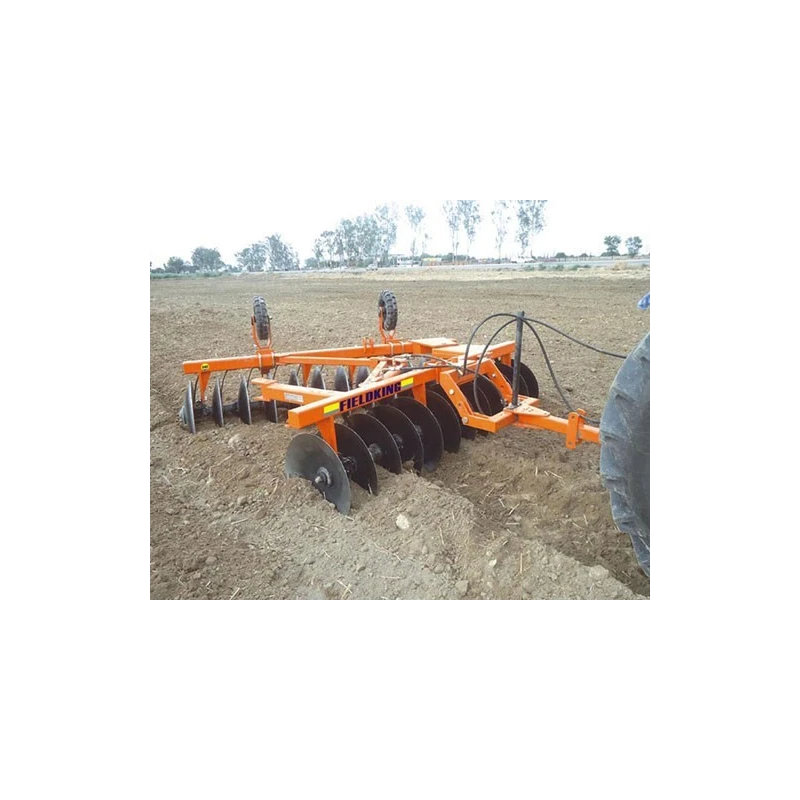

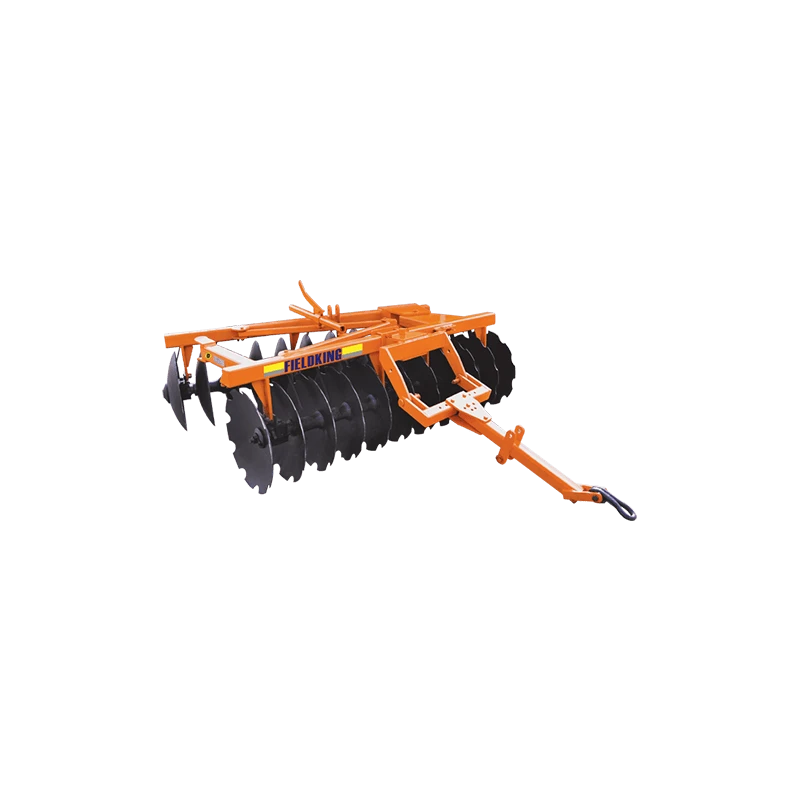

Compact Model Disc Harrow 18 Disc FKCMDH-26-18
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKCMDH-26-18 |
| Weight | 960 KG |
| Type of disc | Notched Disc In Front Gang & Plain Disc In Rear Gang |
| Tractor Power (HP) | 60- 70 |
| No. of Disc | 18 |
| Bearing Hubs | 8 |
| Disc Diameter(mm) | 610 X 4.5 T (24 inch) 660 X 6 T (26 inch) |
| Type Of Disc Harrow | Tractor Disc Harrow |
| Types of Bearing | Agri Hub |
| Distance Between Disc (mm/inch) | 228/9 |
| Tillage Width (mm/ inch approx.) | 2128/83 |
| Gang Axle/Bolt (mm/inch) | 28/1.1/40/1.6 (Solid Sq. Rod) |
Key Features
- Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It can be used in both forms i.e. mounted as well as trailed.
Product Description
Compact Model Disc Harrow, 18 Disc, FKCMDH-26-18, Disc harrows are farming implements used to prepare the soil for planting or sowing by breaking up the clods and surface crusts, thus improving soil granulation and destroying the weeds. They consist of concave cutting blades (disks), mounted on a common shaft, that form a gang
- High quality boron steel disc with 48~52 HRC hardness.
- Tillage depth of the harrow is 152~203 mm.
- Easily transportable - as it gets easily attached and mounted.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tillage depth of this model ranges from 152 mm to 203 mm.
It features notched discs in the front gang and plain discs in the rear gang.
This disc harrow has a weight of 960 kg.
It requires a tractor power of 60 to 70 HP for optimal operation.
The disc diameter is 610 mm x 4.5 T (24 inch) and 660 mm x 6 T (26 inch).
The tillage width is approximately 2128 mm (83 inches).
This model is equipped with a total of 18 discs.
The harrow is made from mild steel, ensuring a balance of strength and weight.
It is primarily used in agriculture for superficial ploughing, soil preparation, and burial of organic substances.
The distance between the discs is 228 mm (9 inches).
It uses Agri hubs for its bearing types, with a total of 8 bearing hubs included.
Yes, it is designed to be easily transportable and can be mounted or trailed as needed.
