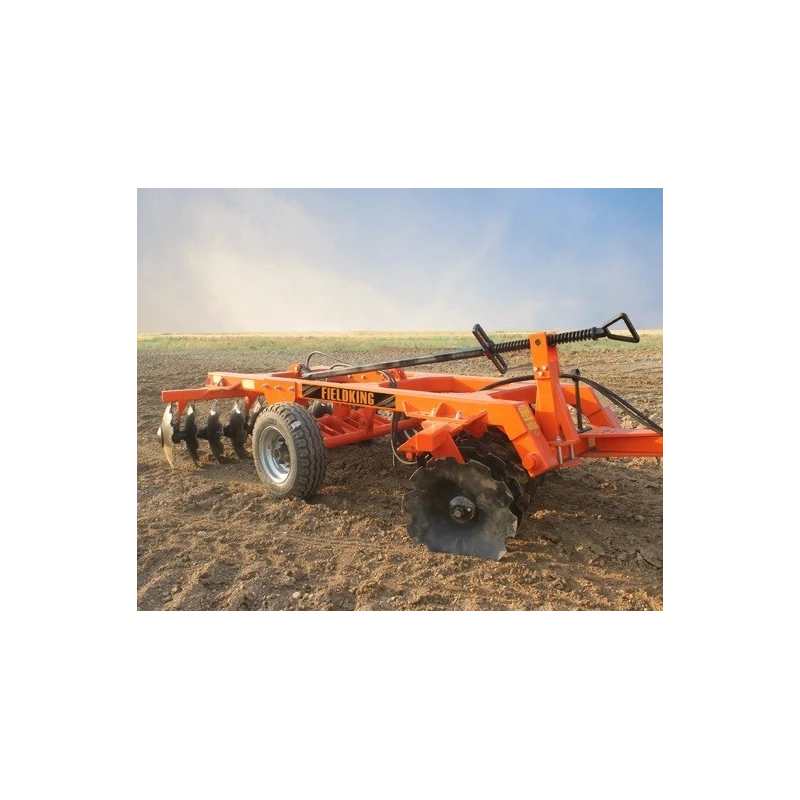

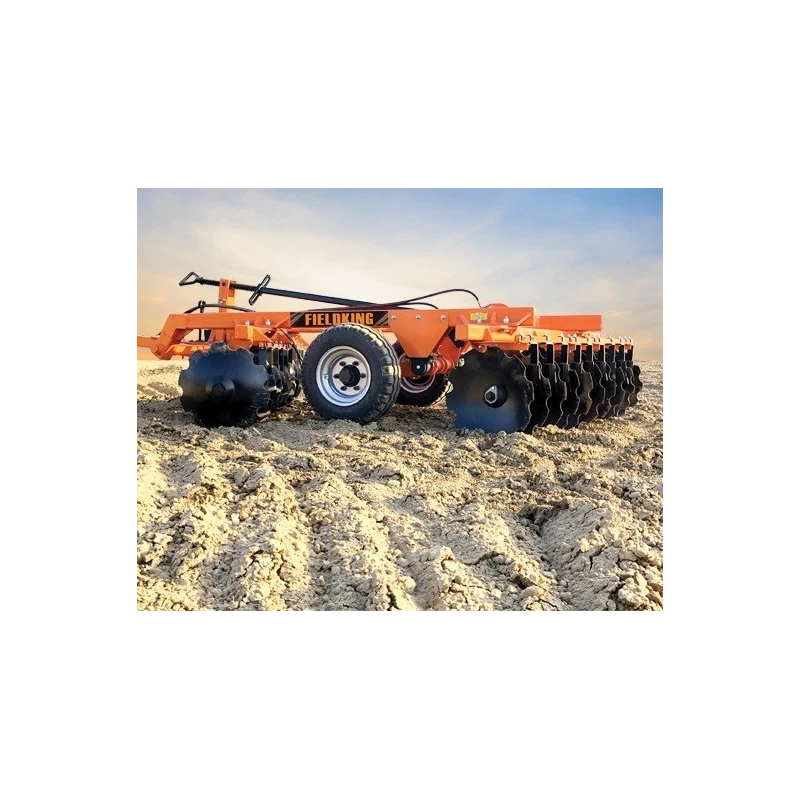

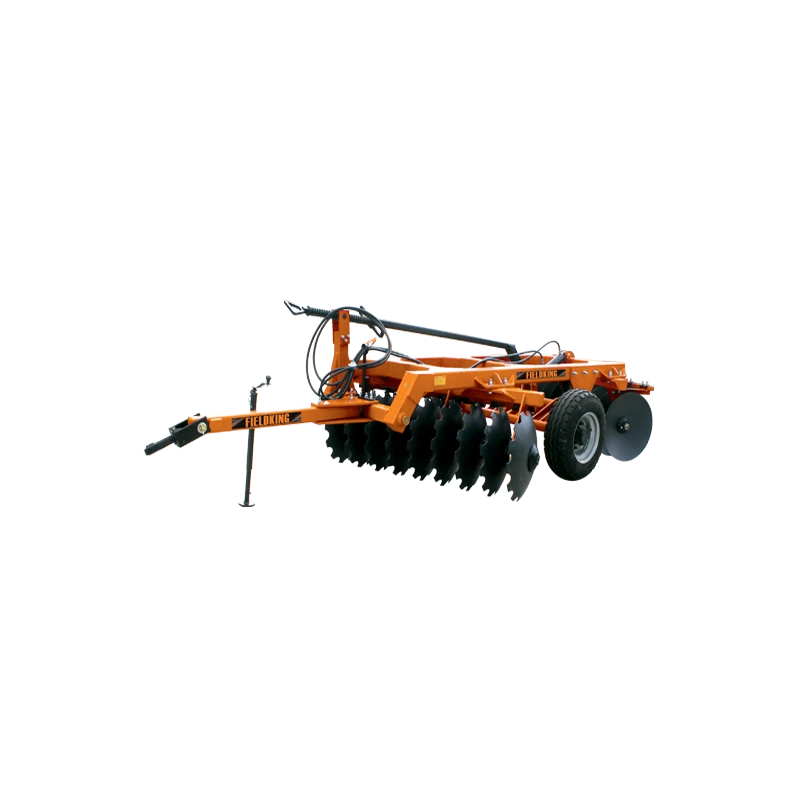

Heavy Duty Hydraulic Harrow 22 Disc FKHDHH-26-22
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKHDHH-26-22 |
| Weight | 1760 Kg |
| Tyre Size | 10.0/75-15.5 (8-16 PR) 13.0/55-16 (14 PR) 400/60-15.5 (18 PR) |
| Type of disc | Notched Disc In Front Gang & Plain Disc In Rear Gang |
| Tractor Power (HP) | 90- 110 |
| No. of Disc | 22 |
| Bearing Hubs | 8 |
| Disc Diameter(mm) | 610 X 4.5 T (24 inch) or 660 X 6 T (26 inch) |
| Type Of Disc Harrow | Tractor Disc Harrow |
| Types of Bearing | Agri Hub |
| Distance Between Disc (mm/inch) | 228/9 |
| Gang Axle(mm/inch) | 40/1.6 inch (Solid sq. Rod) |
| Tillage Width (mm/ inch approx.) | 2500/98 |
Key Features
- Used in open field workings for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It can be easily transported on the tyres using the hydraulic system.
Product Description
Heavy Duty Hydraulic Harrow, 22 Disc, FKHDHH-26-22, A hydraulic harrow is a farm implement used for preparing the soil for planting crops. It is designed to break up clods of soil, level the ground, and create a fine seedbed. The hydraulic system of the harrow uses hydraulic cylinders to control the depth and angle of the harrow, which helps to improve the efficiency and effectiveness of the tillage process.
- High quality boron steel disc with 48~52 HRC hardness.
- Effectively break up heavy clods because of sturdy design and weight.
- Bearing spools for better lubrication and less load on tractor.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model weighs 1760 Kg, making it suitable for heavy-duty agricultural tasks.
The tillage width is approximately 2500 mm (98 inches), allowing for efficient soil preparation.
It features notched discs in the front gang and plain discs in the rear gang, enhancing its soil breaking capabilities.
This hydraulic harrow requires a tractor power of 90 to 110 HP for optimal operation.
The harrow uses discs with a diameter of either 610 mm x 4.5 T (24 inch) or 660 mm x 6 T (26 inch).
The harrow is constructed from mild steel and features high-quality boron steel discs with a hardness of 48-52 HRC.
The distance between the discs is 228 mm (9 inches), which aids in effective soil tillage.
The tyre sizes include 10.0/75-15.5 (8-16 PR), 13.0/55-16 (14 PR), and 400/60-15.5 (18 PR).
This hydraulic harrow is equipped with 22 discs, which aids in effective soil preparation.
The hydraulic system allows for control over the depth and angle of the harrow, improving tillage efficiency.
It features Agri Hub bearing types, which provide better lubrication and reduce load on the tractor.
This model is primarily designed for agricultural applications, including soil preparation for planting crops.
