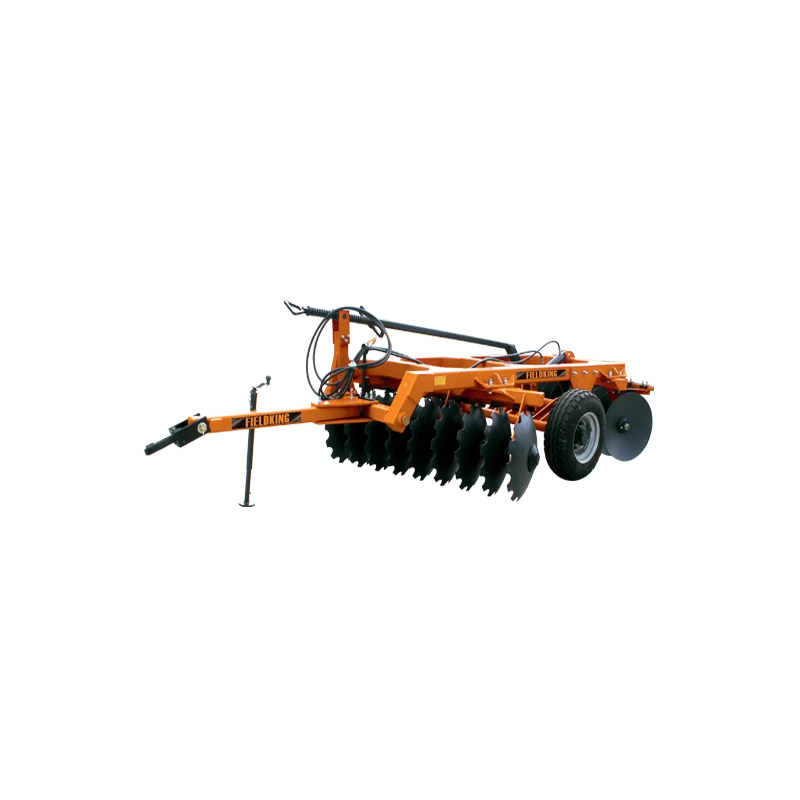

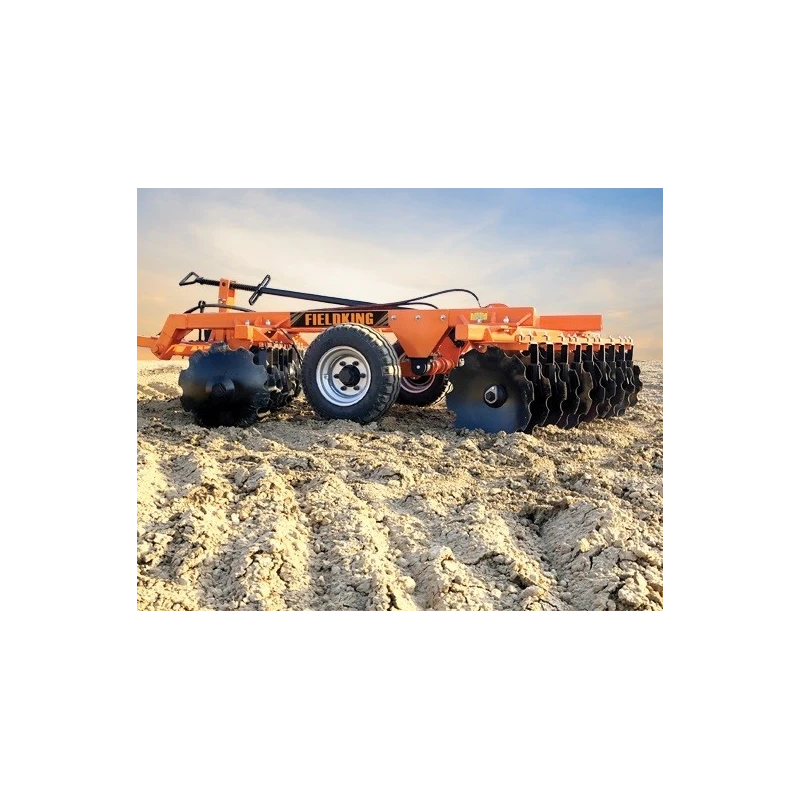

Heavy Duty Hydraulic Harrow 18 Disc FKHDHH-26-18
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKHDHH-26-18 |
| Weight | 1548 Kg |
| Tyre Size | 10.0/75-15.5 (8-16 PR) 13.0/55-16 (14 PR) 400/60-15.5 (18 PR) |
| Type of disc | Notched Disc In Front Gang & Plain Disc In Rear Gang |
| Tractor Power (HP) | 70- 80 |
| No. of Disc | 18 |
| Bearing Hubs | 6 |
| Disc Diameter(mm) | 610 X 4.5 T (24 inch) or 660 X 6 T (26 inch) |
| Type Of Disc Harrow | Tractor Disc Harrow |
| Types of Bearing | Agri Hub |
| Distance Between Disc (mm/inch) | 228/9 |
| Gang Axle(mm/inch) | 40/1.6 inch (Solid sq. Rod) |
| Tillage Width (mm/ inch approx.) | 2100/82 |
Key Features
- Used in open field workings for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It can be easily transported on the tyres using the hydraulic system.
Product Description
Heavy Duty Hydraulic Harrow, 18 Disc, FKHDHH-26-18, A hydraulic harrow is a farm implement used for preparing the soil for planting crops. It is designed to break up clods of soil, level the ground, and create a fine seedbed. The hydraulic system of the harrow uses hydraulic cylinders to control the depth and angle of the harrow, which helps to improve the efficiency and effectiveness of the tillage process.
- High quality boron steel disc with 48~52 HRC hardness.
- Effectively break up heavy clods because of sturdy design and weight.
- Bearing spools for better lubrication and less load on tractor.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model weighs 1548 Kg, making it suitable for heavy-duty agricultural tasks.
The tillage width is approximately 2100 mm (82 inches), allowing for efficient soil preparation.
It features notched discs in the front gang and plain discs in the rear gang, designed for effective soil tillage.
This unit requires a tractor power of 70 to 80 HP for optimal performance.
The harrow uses discs with a diameter of either 610 mm x 4.5 T (24 inch) or 660 mm x 6 T (26 inch).
The distance between the discs is 228 mm (9 inches), which aids in effective soil breaking and leveling.
The harrow is made of mild steel, ensuring a sturdy structure for agricultural applications.
It is compatible with tire sizes of 10.0/75-15.5, 13.0/55-16, and 400/60-15.5, allowing for easy transportation.
This model is equipped with 18 discs, providing extensive coverage for tillage.
It features 6 bearing hubs, designed for better lubrication and reduced load on the tractor.
This harrow is specifically designed for agricultural applications, including soil preparation for planting crops.
The gang axle measures 40 mm (1.6 inches) and is constructed from solid square rod for durability.
