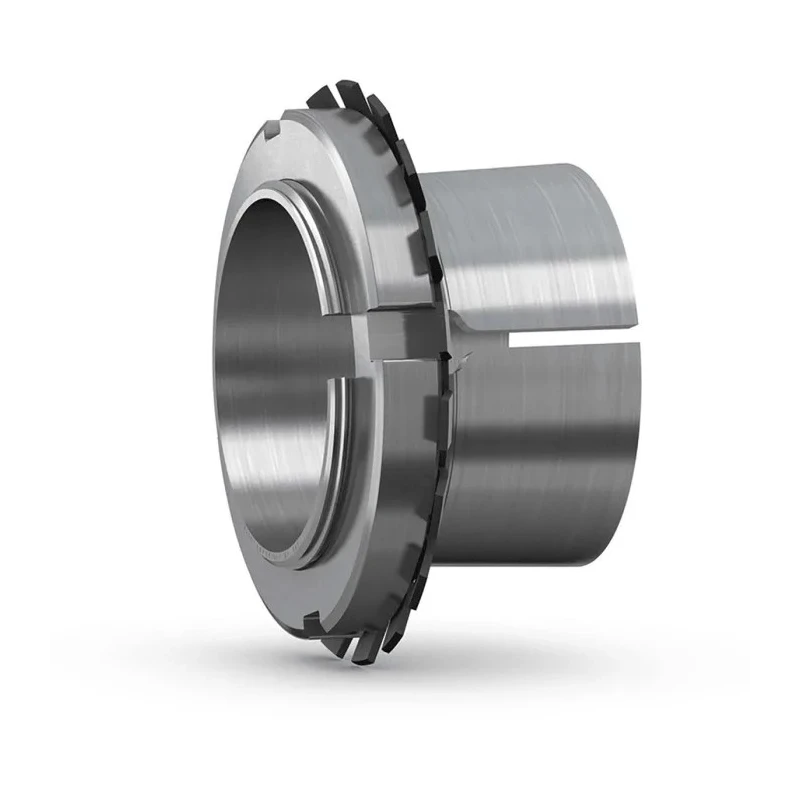

SKF Adapter Sleeve Bore Diameter 38.1mm Outside Diameter 65 mm Thread Size M45 x 1.5 mm Overall Length 33 mm HE 209

The SKF HE 209 Adapter Sleeve provides an effective solution for adjusting shaft diameters, enabling the use of bearings with cylindrical bores by permitting wider diameter tolerances. This adapter sleeve allows for quick and easy mounting onto shafts, enhancing assembly efficiency in mechanical and industrial applications.

The thread size is M45 x 1.5 mm, and the overall length measures 33 mm, ensuring compatibility with various shaft and bearing sizes.

This adapter sleeve is essential for complementing bearings and is part of SKF’s comprehensive range of bearing accessories, which includes adapter sleeves, withdrawal sleeves, and lock nuts. Its robust design facilitates secure fitting in rotary bearing and housing unit assemblies commonly used in industrial machinery, manufacturing equipment, and fluid power systems.

Although no standards or approvals are specified for this particular model, the product adheres to SKF’s high-quality manufacturing standards, suitable for demanding industrial environments such as construction, machine tools, and automotive engineering.

The adapter sleeve enables easy shaft diameter adjustment with wider tolerance accommodation. Designed for quick and secure mounting onto shafts for improved assembly efficiency. Measures 38.1 mm bore diameter and 65 mm outside diameter for precise fitment.

Thread specification is M45 x 1.5 mm to comply with relevant mechanical threading standards. Overall length of 33 mm ensures versatility in various bearing assemblies. Compatible with a wide range of SKF bearing accessories, including lock nuts and withdrawal sleeves.
