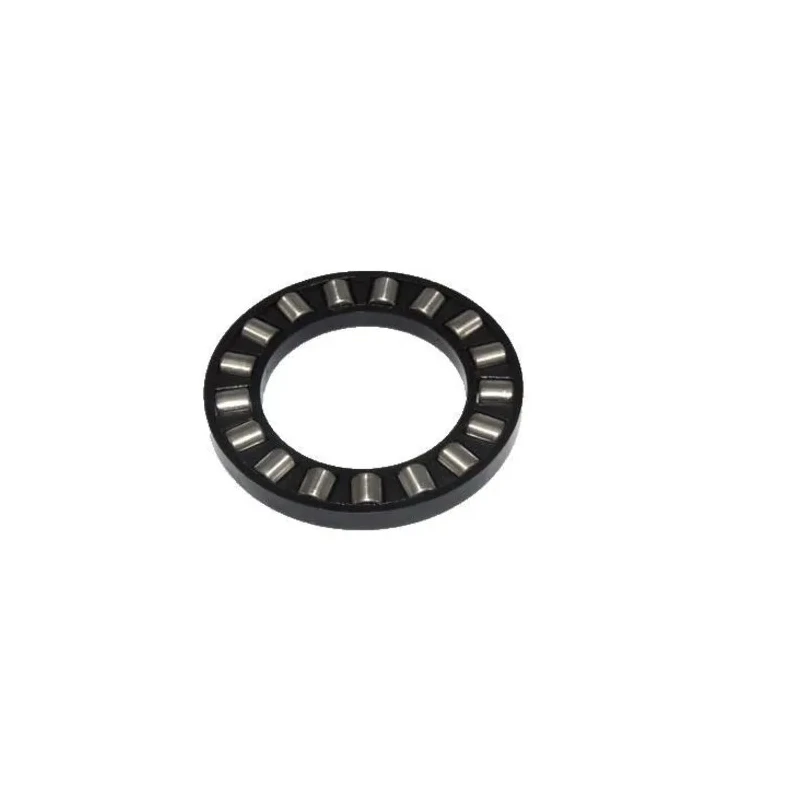

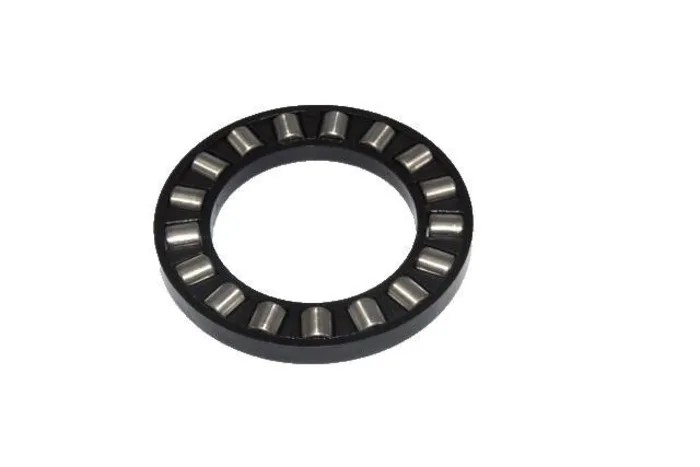

INA 40 mm ID Roller Bearing, 68 mm OD, Race Width 9 mm, Open End Type K81208-TV/0-8

INA K81208-TV/0-8 is a high-quality roller bearing designed with a 40 mm inside diameter and 68 mm outside diameter, featuring a 9 mm race width. This roller bearing is engineered specifically for applications demanding high axial and shock loads in one direction without radial loads. It has a parallel bore type and an open end design to facilitate easy installation and maintenance.

The bearing offers a static load rating of 265 kN and a dynamic load rating of 107 kN, making it suitable for use in various industrial machinery, manufacturing equipment, and mechanical power transmission systems. Its compact axial rigidity and small axial space requirements enable this bearing to be employed where space constraints are critical.

Constructed to endure significant shock loads, these single and double row axial cylindrical roller bearings are perfect replacements or upgrades where axial deep groove ball bearings' load capacity is insufficient. They deliver high axial rigidity and can be mounted either as separate parts or as ready-to-fit standard bearings for cost efficiency and flexibility.

Applications include industrial automation, mechanical and fluid power equipment, and systems requiring precise axial load handling with minimal radial load involvement. The bearing design supports configurations where axial space is scarce but high load carrying capacity is required.

This model is optimized for environments with high axial and shock loads in one direction. The bearing parts can be mounted separately, enabling flexible arrangements. It can be used where ready-to-fit standard bearings are preferred to reduce costs.

The small axial space requirement makes it ideal for compact machinery designs. It provides very high axial rigidity for demanding mechanical applications. Open end type design allows simple assembly and servicing. Explore EnvMart’s extensive category of Roller Bearings for compatible products and technical solutions in mechanical machinery and spares.
