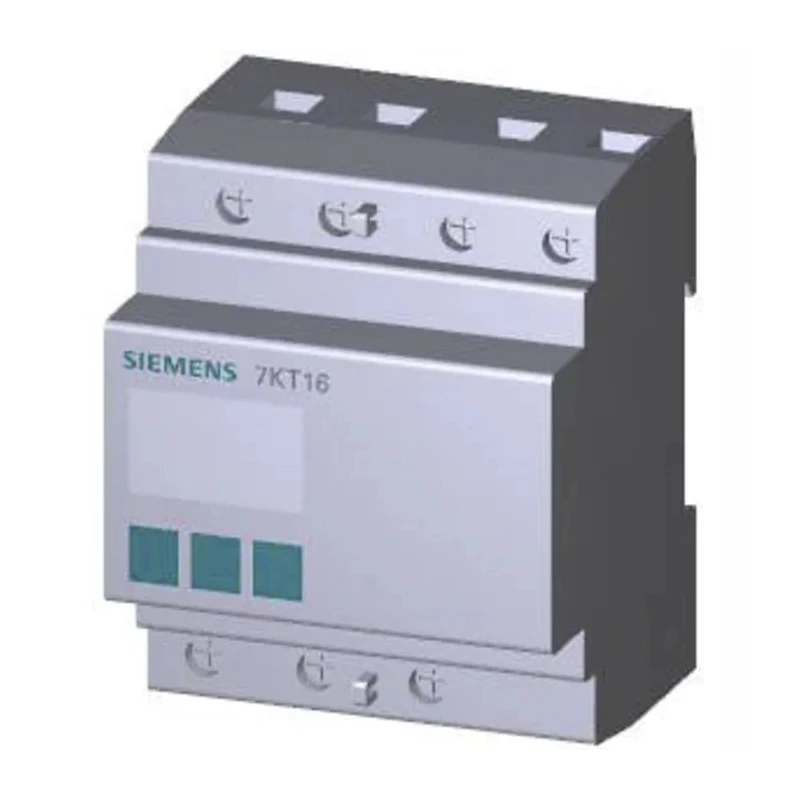

Siemens SENTRON PAC1600 3-Phase Digital LCD Energy Meter 7KT1668
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | LCD |
| Brand | Siemens |
| Model | 7KT1668 |
| Depth | 63mm |
| Number of inputs | 1 |
| Series | SENTRON PAC1600 |
| Maximum Operating Temperature | 55°C |
| Meter Type | Digital |
| Minimum Operating Temperature | -25°C |
| Digit height | 85mm |
| Number of Phases | 3 |
| Standards/Approvals | CE |
| Cutout Height | 90mm |
| Cutout Width | 71.6mm |
| Maximum Measurement | 80 A, 66 Hz, 400 V ac |
| SENTRON, measuring device, 7KT PAC1600, LCD, L-L | 400 V, L-N: 230 V, 80 A, strd rail instr., 3-phase, M-Bus + MID, apparent /active/reactive energy, self-powered, screw terminals |
Key Features
- Features a clear LCD display with 85mm digit height for easy readability.
- Supports 3-phase electrical systems with 1 input for accurate energy measurement.
- Operates within temperature range of -25°C to 55°C, suitable for various environments.
- Measures up to 80 A current with rated voltage of 400 V AC line-to-line and 230 V line-to-neutral.
- Complies with CE standards ensuring regulatory conformity and safety.
- Includes functionalities for measuring apparent, active, and reactive energy via M-Bus and MID protocols.
- Self-powered meter utilizing screw terminals for secure installation on standard rails.
- Compact design with cutout dimensions of 90mm height and 71.6mm width and depth of 63mm for panel mounting.
Product Description
Siemens 7KT1668 SENTRON PAC1600 Digital LCD Energy Meter is a high-performance instrument designed for industrial and commercial energy measurement applications. This meter features a large, clear LCD display with 85mm digit height, allowing operators to easily monitor energy consumption and electrical parameters in real time.
Engineered for 3-phase systems, it supports a single input channel and can measure electrical currents up to 80 amperes while handling line-to-line voltage up to 400 V AC and line-to-neutral voltage of 230 V. The meter operates reliably within a temperature range from -25°C to 55°C, making it suitable for various industrial and environmental conditions.
Certified with CE approval, the 7KT1668 model conforms to industry safety and performance standards. It provides precise measurement of apparent, active, and reactive energy, communicated via integrated M-Bus and MID protocols, ensuring compatibility with modern energy management systems.
The device is self-powered and designed for straightforward installation on standard DIN rails using screw terminals. Its compact dimensions - cutout height 90mm, cutout width 71.6mm, and depth 63mm - enable convenient panel mounting without occupying excessive space.
This Siemens Energy Meter is ideal for use in industrial automation, electrical distribution monitoring, energy audits, and commercial energy management systems. It aids in enhancing operational efficiency, reducing energy costs, and complying with regulatory requirements.
Features a clear LCD display with 85mm digit height for easy readability. Supports 3-phase electrical systems with 1 input for accurate energy measurement. Operates within temperature range of -25°C to 55°C, suitable for various environments.
Measures up to 80 A current with rated voltage of 400 V AC line-to-line and 230 V line-to-neutral. Complies with CE standards ensuring regulatory conformity and safety. Includes functionalities for measuring apparent, active, and reactive energy via M-Bus and MID protocols.
Self-powered meter utilizing screw terminals for secure installation on standard rails. Compact design with cutout dimensions of 90mm height and 71.6mm width and depth of 63mm for panel mounting. Explore the comprehensive range of Siemens measurement and automation products at EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure currents up to 80 A.
It supports a rated line-to-line voltage of 400 V AC and a line-to-neutral voltage of 230 V.
It operates reliably within a temperature range of -25°C to 55°C.
It communicates measurements via integrated M-Bus and MID protocols.
It features an LCD display with an 85mm digit height for easy readability.
The cutout dimensions are 90mm in height, 71.6mm in width, and 63mm in depth.
Yes, it is a self-powered meter designed for easy installation using screw terminals.
It is designed for 3-phase electrical systems and supports a single input channel.
It complies with CE standards, ensuring regulatory conformity and safety.
It measures apparent, active, and reactive energy.
The series name is SENTRON PAC1600.
It is manufactured in Italy.
