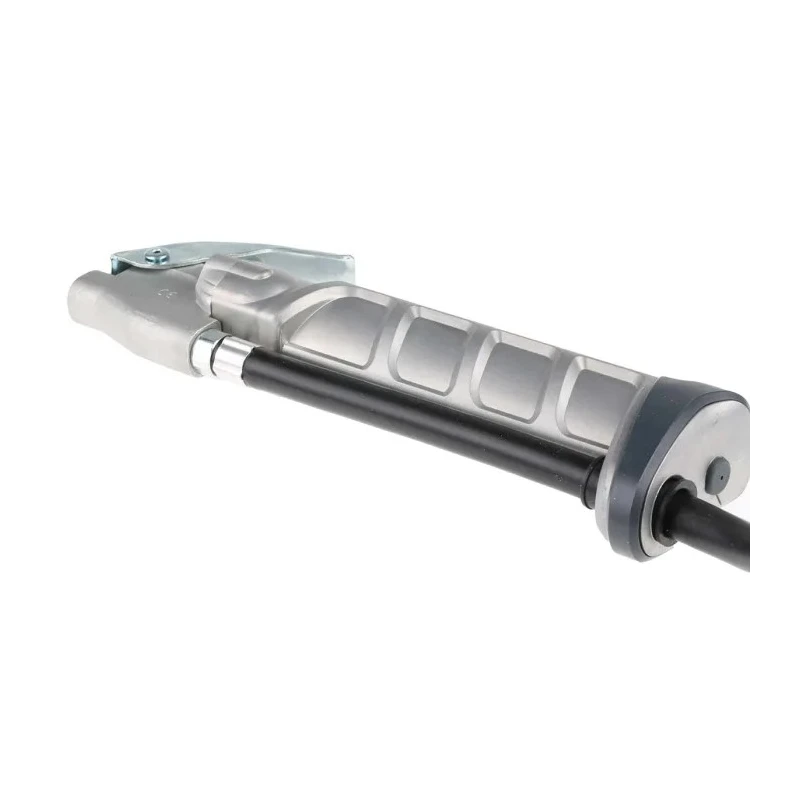

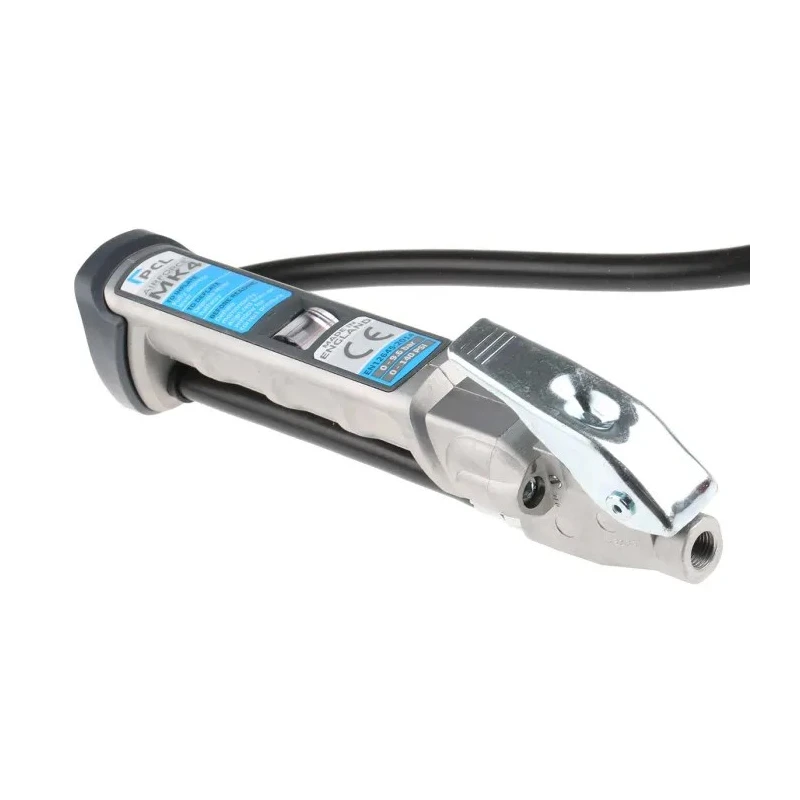

PCL Tyre Inflator 9.8 kg/cm², 6.35 mm Air Inlet (BSP) AFG4H03

PCL AFG4H03 Tyre Inflator is a high-precision pneumatic tool designed for accurate tyre pressure inflation and measurement with an inflation pressure range of 9.8 kg/cm². It features a 6.35 mm air inlet (BSP) connection that fits standard industrial air hose fittings.

Built as an improved successor to the respected AIRFORCE® MK3 model, this tyre inflator is widely used in automotive workshops, petrol forecourts, and tyre depots over many years. It boasts a lightweight design at 923 grams and a biomorphic ergonomic shape that reduces user fatigue and enhances ease of use.

The instrument includes a larger viewing window for 20% better visibility of pressure readings and a new two-stage valve mechanism that prevents excessive force requirements while deflating, reducing operator strain. The piston and seal assembly has been optimized to minimize friction and wear, ensuring long-lasting performance without internal corrosion or loss of accuracy.

This tyre inflator is validated to EC Directive 86/217/EEC and BS EN 12645:2014 standards, tested for over 400,000 cycles maintaining 100% accuracy, suitable for professional industrial use. Operating temperature ranges from -10 to 60 degrees Celsius, and the maximum input pressure is 138 psi.

Its compact overall dimensions of 265 mm height and 50 mm width allow convenient handling and storage. This tool is suitable for automotive repair, maintenance shops, garage applications, and industrial fleet vehicle servicing.

The ergonomic biomorphic shape reduces user fatigue and improves handling. The lightweight gauge body at 923 g is suitable for repetitive use. Features a large viewing window providing 20% greater field of view for easier reading.

The new two-stage valve mechanism reduces user effort during deflation. Designed to operate reliably between -10°C and 60°C temperature range. Maximum input pressure rating of 138 psi ensures durability under high pressure.

Complies with EC Directive 86/217/EEC and BS EN 12645:2014 standards for accuracy and safety. Overall dimensions are 265 mm height by 50 mm width for compact use. Explore our extensive collection of professional industrial Tyre Inflators and air tools at EnvMart to find the right fit for your workshop or service center needs.
