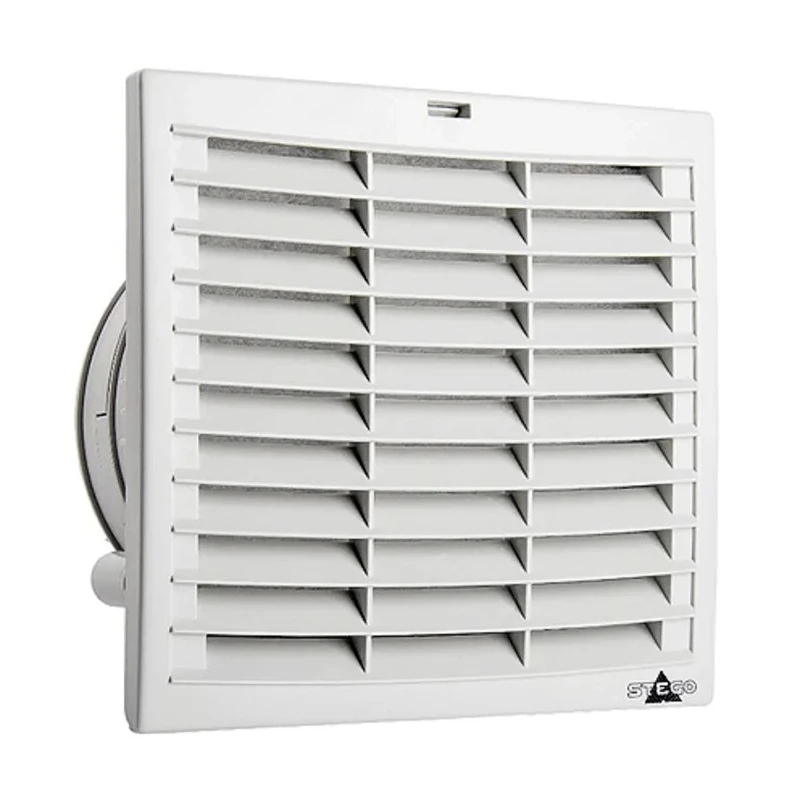

STEGO Filter Fan Plus FPO Series Filter Fan 230V AC 64W 281 m³/h Filtered Airflow 536 m³/h Unimpeded Airflow 257 mm x IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | STEGO |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 65dBA |
| Series | Filter Fan Plus FPO |
| Configuration | Rectangular |
| Input power | 64W |
| Installation Depth | 147mm |
| Input current | 340mA |
| Terminal type | Clamp |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | UL, VDE, CE, RoHS, EAC, EN, cULus |
| AC or DC Operation | AC |
| Unimpeded Air Flow | 536m³/h |
| Filtered Air Flow | 281m³/h |
| Face Height | 257mm |
| Face Width | 257mm |
Key Features
- Filtered airflow capacity of 281 cubic meters per hour.
- Unimpeded airflow capacity rated at 536 cubic meters per hour.
- Rectangular configuration with face dimensions of 257 mm by 257 mm.
- Equipped with a ball bearing type for durability and smooth operation.
- IP54 rated for protection against dust and water ingress.
- Low noise level operating at 65 dBA for quieter performance.
- Input current specification at 340 mA ensuring efficient energy usage.
- Simple installation with clamp terminal type and quick-mount ratchet system.
Product Description
STEGO IP54 Filter Fan Plus FPO Series is a high-performance filter fan operating at 230V AC with a power rating of 64W, optimized for maintaining efficient climate control within electronic and electrical enclosures and cabinets. This unit draws in filtered air at a rate of 281 m³/h and supports unimpeded air flow of 536 m³/h to effectively dissipate heat generated by internal components, enhancing device reliability and lifespan.
The fan features a rectangular design with face dimensions of 257 mm by 257 mm and an installation depth of 147 mm, making it suitable for various cabinet setups. It utilizes a durable ball bearing mechanism and offers low noise operation at 65 dBA, supporting quieter working environments.

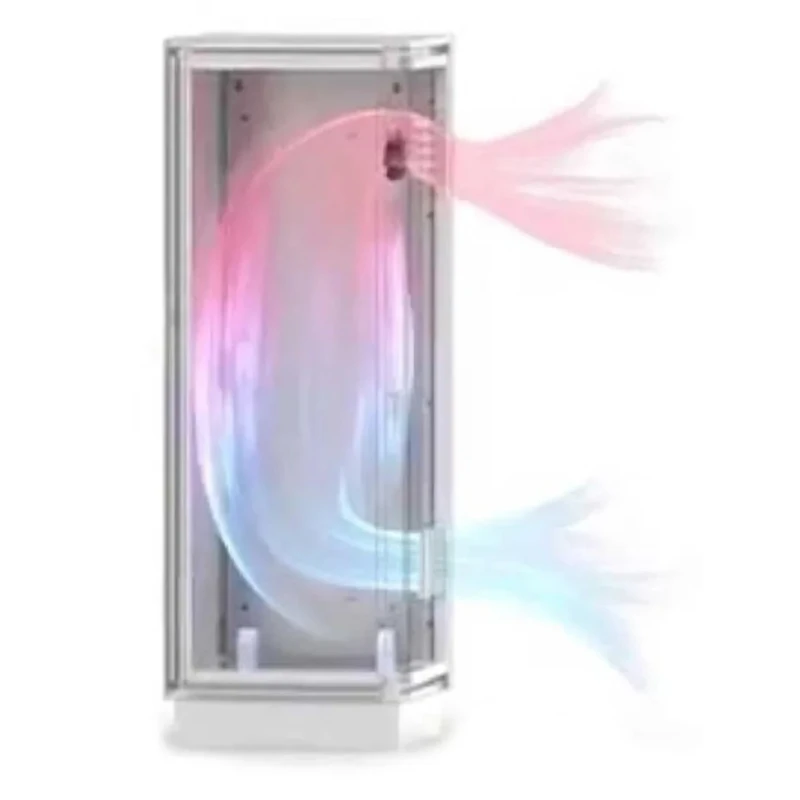

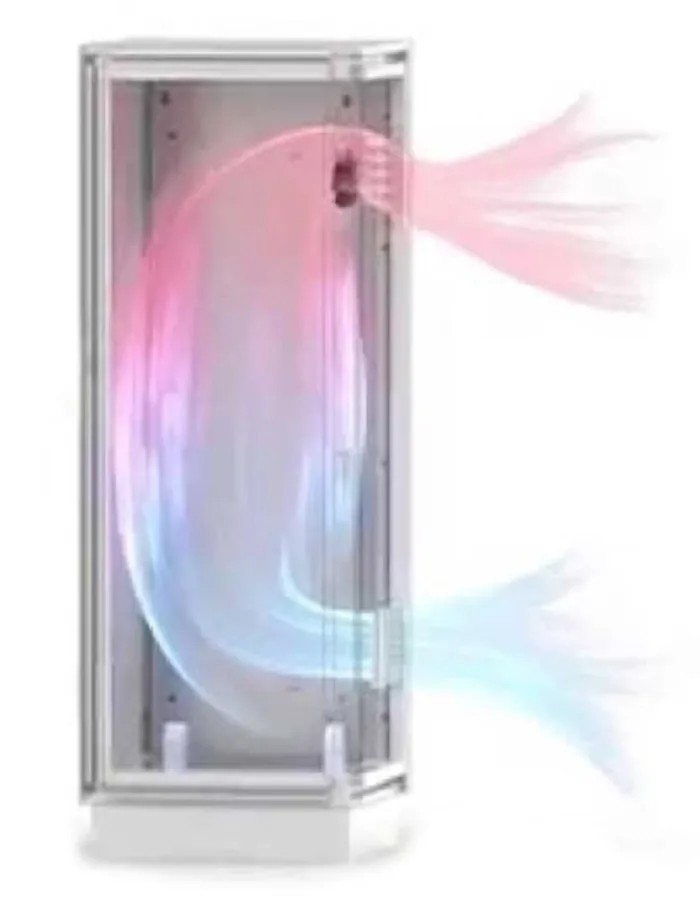

Its IP54 rating makes it resistant to dust and water splashes, suitable for industrial environments requiring robust enclosure protection. The series employs a new air-flap outlet technology that improves airflow efficiency. The FPO configuration places the fan on the outlet side, pushing air out and drawing cooler air from the intake filter at the lower enclosure end, ideal for enclosures with hot air pockets at the top.
Installation is simplified by a clamp terminal and ratchet type mounting system allowing fast assembly and easy maintenance. The product is compliant with international standards including UL, VDE, CE, RoHS, EAC, EN, and cULus, assuring safety and quality.
This filter fan is manufactured in Germany, emphasizing high standards in quality and engineering. The filter fan plus series is essential in industrial, HVAC, manufacturing, electrical cabinets, and automation applications for effective thermal management.
Filtered airflow capacity of 281 cubic meters per hour. Unimpeded airflow capacity rated at 536 cubic meters per hour. Rectangular shape with face dimensions of 257 mm by 257 mm. Durable ball bearing type supports long operational life.
IP54 rated for protection against dust and water ingress. Low noise emission at 65 dBA ensures quiet operation. Installation depth of 147 mm suitable for varied cabinet thicknesses. 230V AC power supply with input current of 340 mA.
Complies with UL, VDE, CE, RoHS, and other international standards. New air-flap outlet technology for enhanced airflow efficiency. Explore more industrial Filter Fans and cooling solutions on EnvMart for optimized enclosure climate management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The filtered airflow capacity of this model is 281 cubic meters per hour.
It has an unimpeded airflow capacity rated at 536 cubic meters per hour.
The face dimensions of this unit are 257 mm by 257 mm.
This filter fan operates at an input power of 64W and an input current of 340 mA.
The installation depth of this model is 147 mm, making it suitable for various cabinet thicknesses.
It operates at a noise level of 65 dBA, ensuring quieter performance.
This model utilizes a durable ball bearing type for smooth operation.
It has an IP54 rating, providing protection against dust and water ingress.
The unit complies with several international standards including UL, VDE, CE, RoHS, EAC, EN, and cULus.
It features a clamp terminal type for easy installation.
This fan has a rectangular configuration, designed to optimize airflow efficiency.
It is manufactured in Germany, emphasizing high standards in quality and engineering.
