STEGO Filter Fan Plus FPO Series Filter Fan, 230V AC, 19W, 47 m³/h Filtered Air, 97 m³/h Unimpeded Air Flow, , 152 mm x IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | STEGO |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 49dBA |
| Series | Filter Fan Plus FPO |
| Configuration | Rectangular |
| Input power | 19W |
| Installation Depth | 79mm |
| Input current | 120mA |
| Terminal type | Wire |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | VDE, CE, EN, RoHS, cULus, EAC, UL |
| AC or DC Operation | AC |
| Unimpeded Air Flow | 97m³/h |
| Filtered Air Flow | 47m³/h |
| Face Height | 152mm |
| Face Width | 152mm |
Key Features
- Provides 47 m³/h filtered air flow and 97 m³/h unimpeded air flow capacity.
- Operates with low noise level of 49 dBA ensuring quiet operation.
- Equipped with ball bearing for long service life and reliability.
- Compact installation depth of 79 mm with rectangular configuration.
- Rated IP54 for protection against dust and water ingress.
- Complies with VDE, CE, EN, RoHS, cULus, EAC, and UL standards.
- Designed for optimized airflow using new air-flap outlet technology.
- Suitable for cabinet enclosures in industrial HVAC and electrical systems.
Product Description
STEGO IP54 Filter Fan Plus FPO Series is a robust filter fan operating at 230V AC and consuming 19W of power. It is engineered to optimize climate control in enclosures and cabinets housing electronic and electrical components, preventing overheating and ensuring reliable performance.
The fan facilitates airflow with a filtered air volume of 47 m³/h, while allowing an unimpeded air flow rate of 97 m³/h. It features a durable ball bearing for enhanced lifespan and quiet operation with a noise level of 49 dBA.
Its rectangular configuration and compact 152 mm square face dimensions allow easy integration with a shallow installation depth of 79 mm. The unit carries an IP54 rating, offering excellent protection against dust and water ingress, making it suitable for industrial and commercial applications.

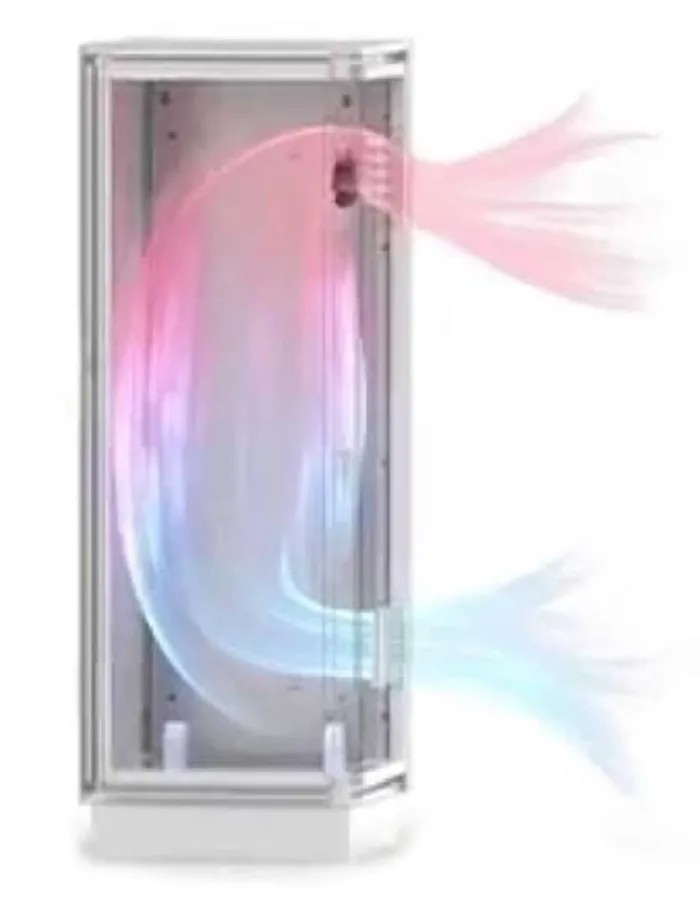

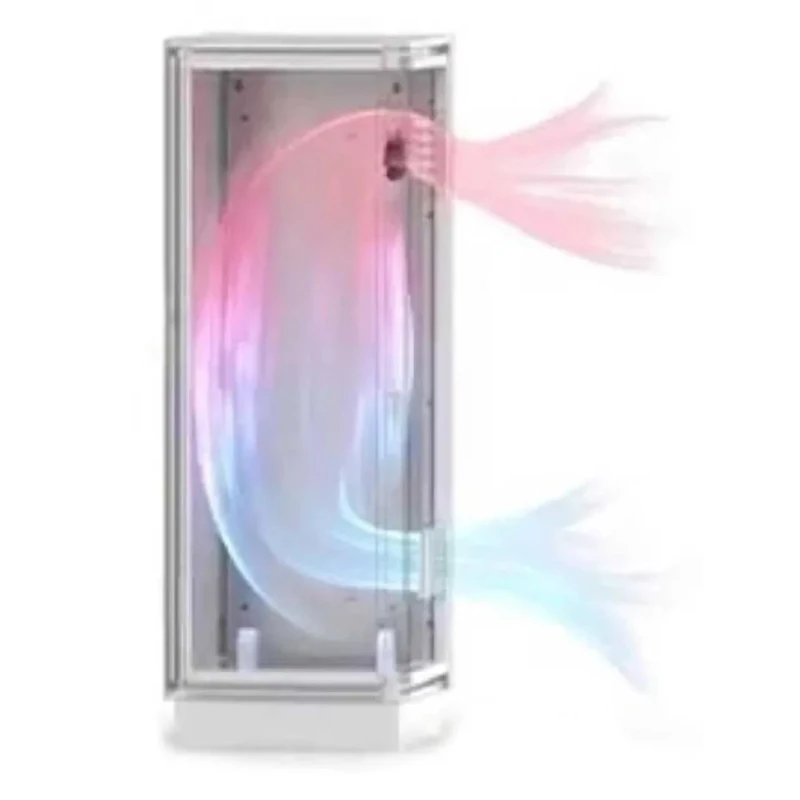

The Filter Fan Plus technology includes new air-flap outlet design for high-efficiency air expulsion. Two system options are available: the FPI system with a fan pulling filtered air in from the lower enclosure part and expelling it at the top; and the FPO system with a fan pushing heated air out at the top, drawing filtered air in from below, advantageous for enclosures with hot air pockets.
This model requires separate ordering of inlet and outlet units. The front section mounts easily with a ratchet system to accommodate various panel thicknesses, allowing for quick installation and maintenance.
Compliant with recognized international standards including VDE, CE, EN, RoHS, cULus, EAC, and UL, this filter fan supports reliable operation in a variety of industrial, HVAC, and automation environments.
Provides 47 m³/h filtered air flow and 97 m³/h unimpeded air flow capacity. Operates with low noise level of 49 dBA ensuring quiet operation. Equipped with ball bearing for long service life and reliability. Compact installation depth of 79 mm with rectangular configuration.
Rated IP54 for protection against dust and water ingress. Complies with VDE, CE, EN, RoHS, cULus, EAC, and UL standards. Designed for optimized airflow using new air-flap outlet technology. Suitable for cabinet enclosures in industrial HVAC and electrical systems.
Explore more Filter Fans and accessories in the Industrial Coolers Blowers & Fans category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a power consumption of 19W.
It provides a filtered air flow capacity of 47 m³/h.
The unimpeded air flow rate is 97 m³/h.
The fan operates with a noise level of 49 dBA, ensuring quiet operation.
The fan has a face height and width of 152 mm each, with a compact installation depth of 79 mm.
It is rated IP54, providing protection against dust and water ingress.
This unit is equipped with a ball bearing for enhanced lifespan and reliability.
It operates on a supply voltage of 230V AC.
It complies with VDE, CE, EN, RoHS, cULus, EAC, and UL standards.
The front section mounts easily with a ratchet system to accommodate various panel thicknesses, allowing for quick installation and maintenance.
The two system options are the FPI system, which pulls filtered air in from the lower part and expels it at the top, and the FPO system, which pushes heated air out at the top while drawing filtered air in from below.
The country of origin for this filter fan is Germany.
