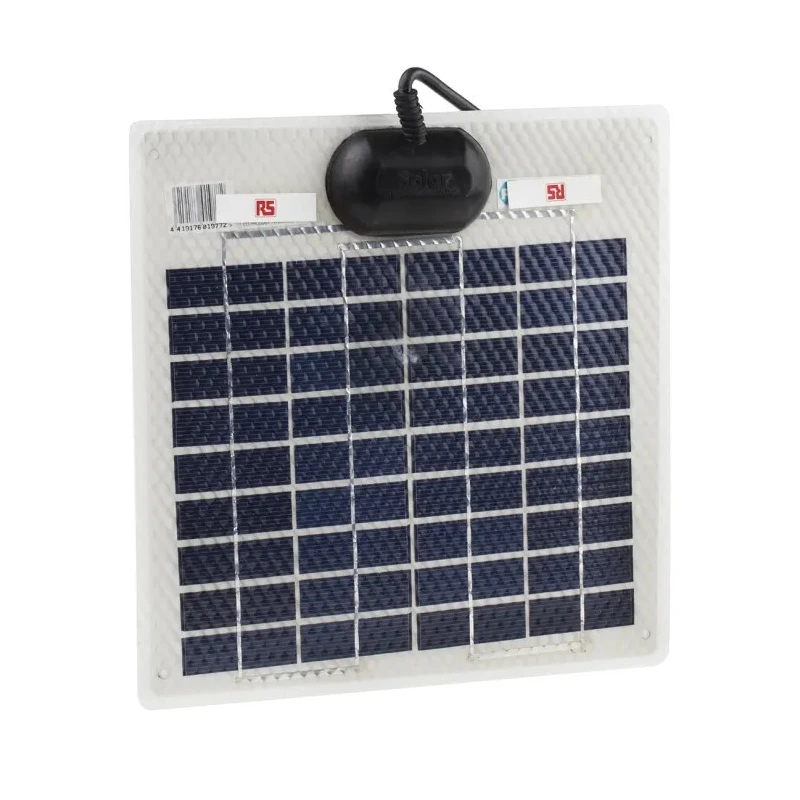

RS PRO Surface Mount Polycrystalline Solar Panel 5W, 36 Cells, 21.6V Open Circuit Voltage 914-8445

RS PRO 914-8445 Surface Mount Polycrystalline Solar Panel 5W provides an efficient and compact photovoltaic solution for renewable energy needs.

This panel features 36 polycrystalline silicon cells delivering a peak power output of 5 watts with an open circuit voltage rating of 21.6 volts. Its surface mount type and compact dimensions (240mm x 250mm x 3mm) allow installation on flat or slightly curved surfaces, ideal for marine buoys, boat decks, camper vans, and other applications requiring lightweight, flexible power systems.

The panel is designed to operate reliably under extreme environmental conditions, with a maximum operating temperature of 80°C and a minimum operating temperature of -40°C. It meets multiple international standards including IEC 61215:1993, CE, TUV, and ISO 9001 (2008), ensuring quality and durability.

The robust 6-layer heavy duty laminate and self-healing top surface provide waterproof protection and safeguard cells from hot spots. The integrated junction box is silicon injected to prevent water ingress, making the panel suitable for outdoor and marine environments.

Applications include off-grid power solutions, charging 12/24V batteries for critical telecommunications, telemetry, marine, RVs, and remote equipment installations where reliable solar power is essential. This panel supports renewable energy initiatives by providing a sustainable power source.

Features a polycrystalline silicon solar cell design for effective energy conversion. Comprises 36 individual cells delivering a peak power output of 5 watts. Operates at an open circuit voltage of 21.6 volts for optimized electrical performance.

Dimensions measure 240mm length by 250mm width and a depth of 3mm for easy surface mounting. Engineered for durability with a wide operating temperature range from -40°C to 80°C. Complies with IEC 61215:1993, CE, TUV, ISO 9001 (2008), and IEC 61710 certifications.

Equipped with cable terminal contacts ensuring secure electrical connectivity. Lightweight and low-profile design suitable for marine, caravan, and outdoor applications. Explore the RS PRO Solar Panels range at EnvMart to find reliable, high-quality solar solutions for diverse industrial and commercial applications.
