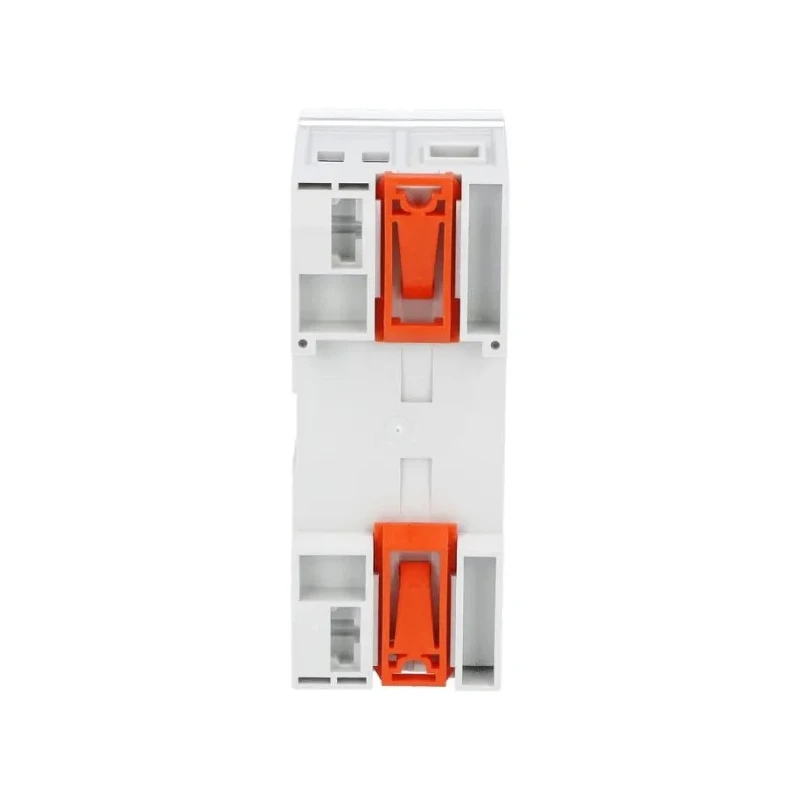

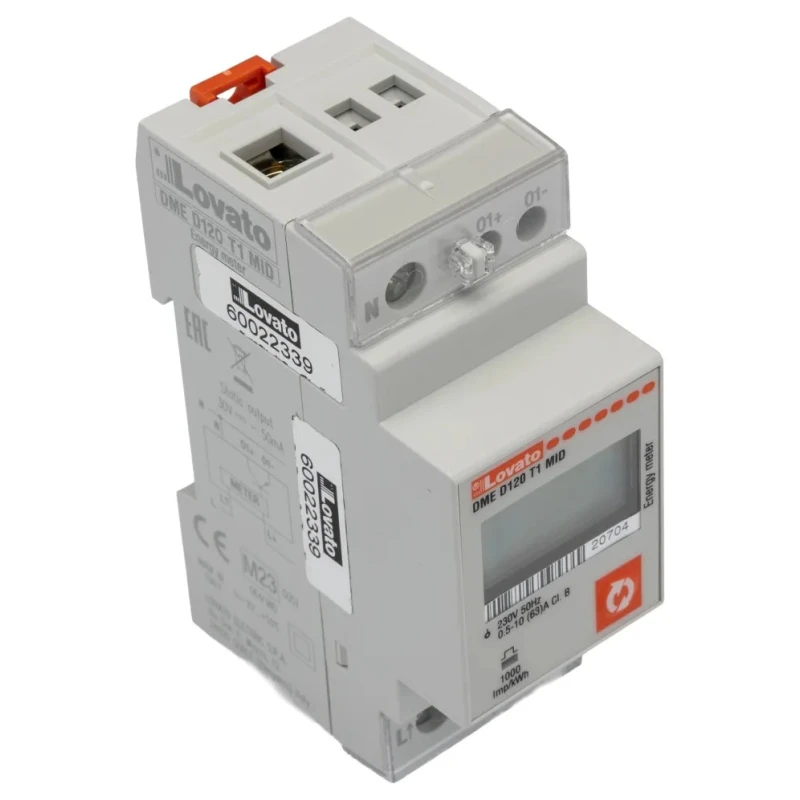

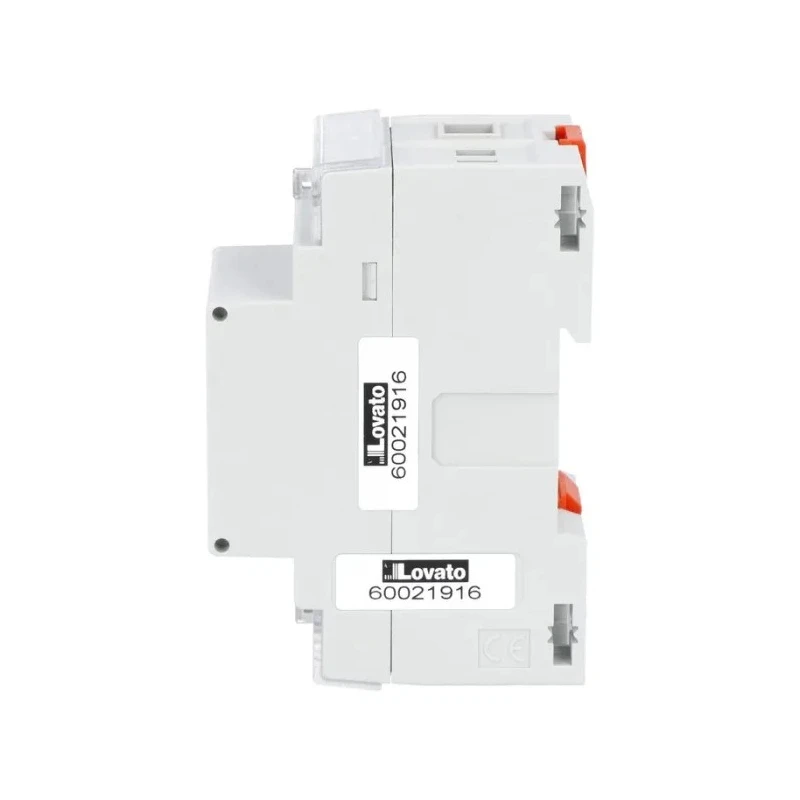

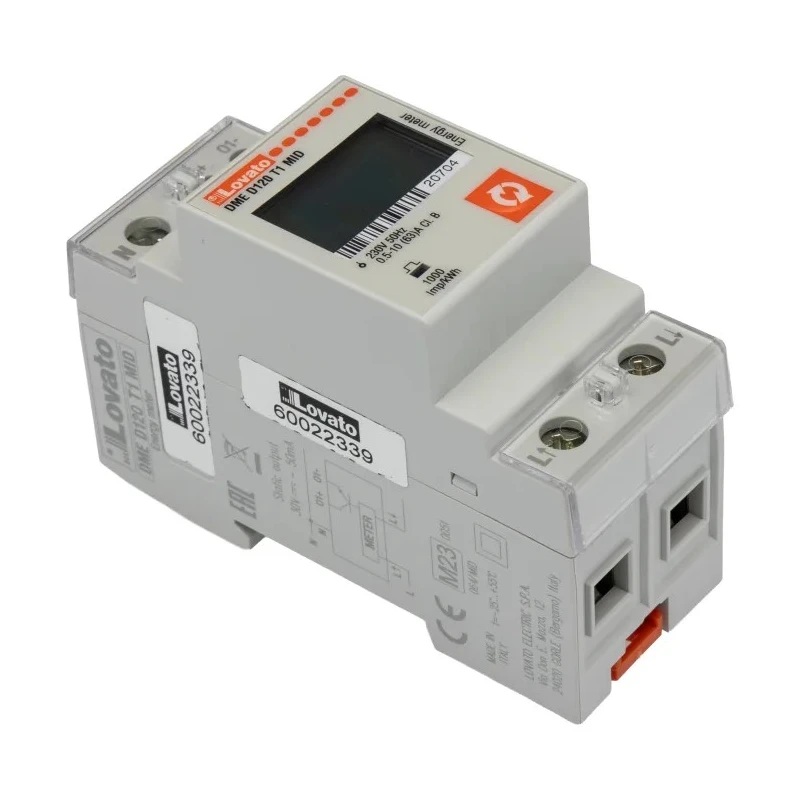

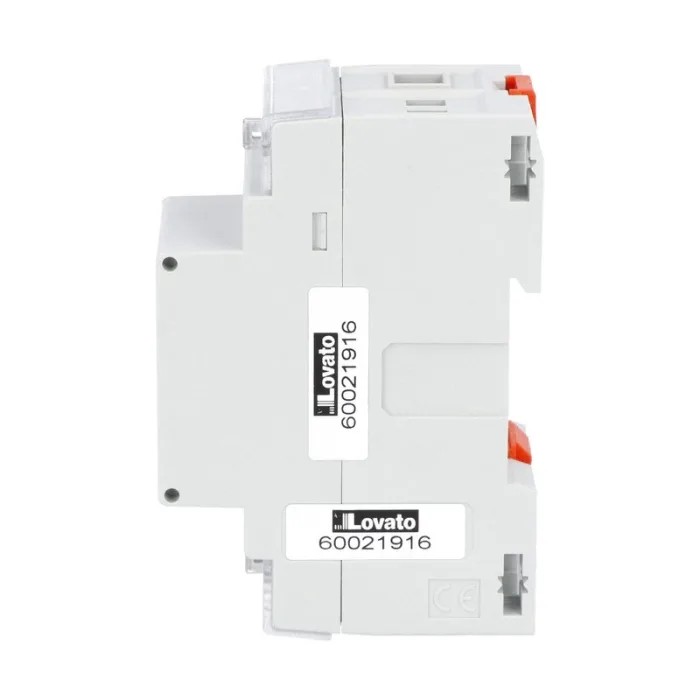

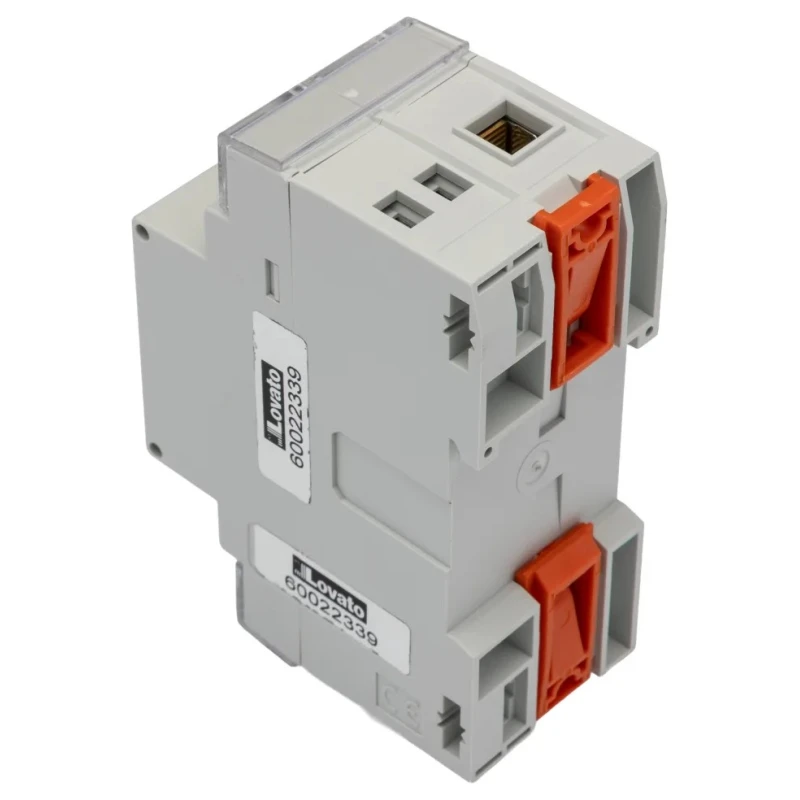

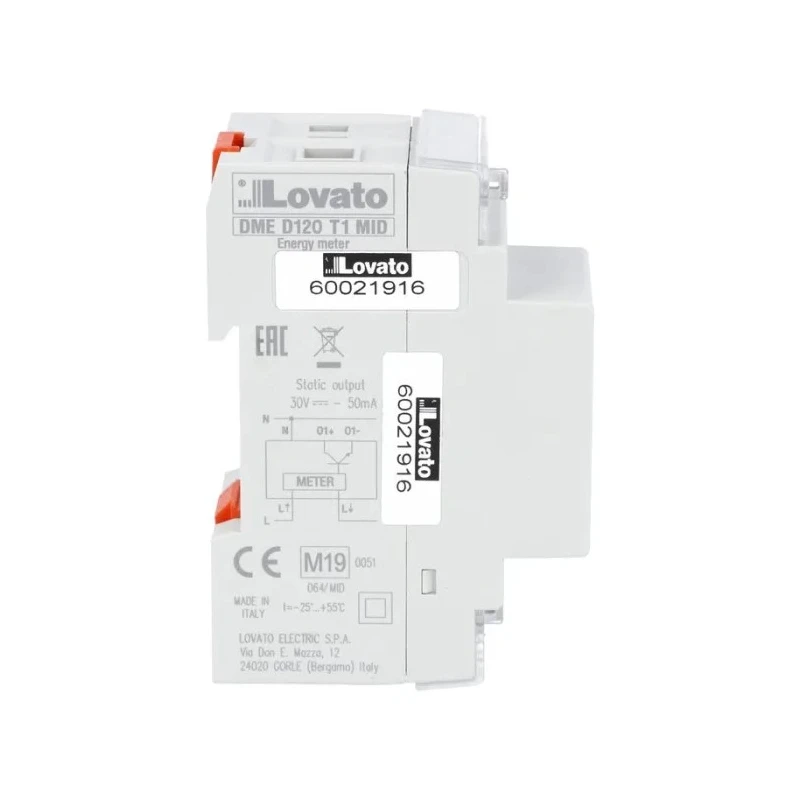

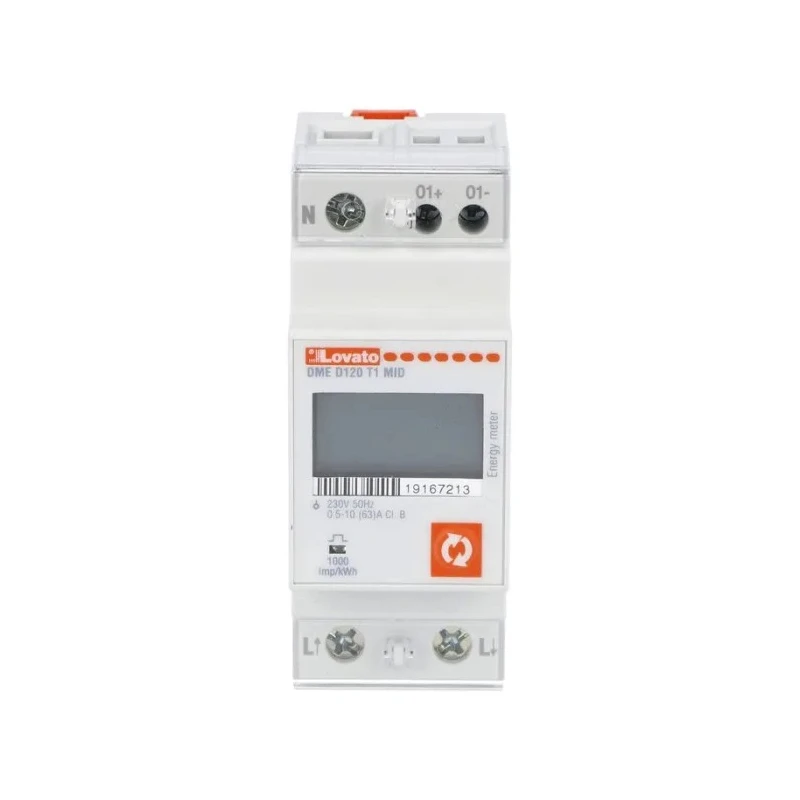

Lovato Electric Single Phase Type Energy Meter with LCD Display 104.7mm x 35.8mm Cutout, 63A, Class B Accuracy DMED120T1MID
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | LCD |
| Brand | Lovato Electric |
| Model | DMED120T1MID |
| Depth | 63mm |
| Series | DME |
| Maximum Operating Temperature | 55°C |
| Meter Type | Energy Meter |
| Number Of Digits | 6 |
| Meter Accuracy | Class B |
| Minimum Operating Temperature | -25°C |
| Digit height | 85mm |
| Number of outputs | 1 |
| Number of Phases | 1 |
| Standards/Approvals | EN 50470-1, EN 50470-3, EN Protection Degree, MID Class B |
| Cutout Height | 104.7mm |
| Cutout Width | 35.8mm |
| Maximum Measurement | 264 A |
Key Features
- Features a clear LCD display with 6 digits and digit height of 85mm for easy reading.
- Supports direct connection with a maximum current of 63A and voltage range of 184 to 264V AC.
- Equipped with a programmable pulse output to enable integration with monitoring systems.
- Operates accurately within a temperature range of -25°C to +55°C, suitable for diverse environments.
- Certified with EN 50470-1, EN 50470-3 standards and MID Class B approval ensuring legal metrology compliance.
- Compact meter dimensions including cutout size of 104.7mm height and 35.8mm width, with a depth of 63mm.
Product Description
Lovato Electric DMED120T1MID is a robust single phase energy meter designed for reliable and precise electrical energy consumption monitoring. Featuring a clear LCD display with 6 digits and an 85mm digit height, it ensures easy readability of measurements. The meter supports direct connection with a maximum current capacity of 63A and accommodates voltage from 184V to 264V AC, making it suitable for various electrical systems.
This product is MID approved and complies with EN 50470-1 and EN 50470-3 standards, delivering Class B accuracy for legally recognized measurements. It includes a programmable pulse output which simplifies system integration for energy monitoring or automation solutions.
Compact in size with cutout dimensions of 104.7mm height and 35.8mm width, and a depth of 63mm, the meter is designed to fit standard installations. Clear LCD display with 6 digits and 85mm digit height. Supports maximum current of 63A and voltage range 184-264V AC.
Programmable pulse output for customizable monitoring. Operates from -25°C to +55°C environment temperature. Certified EN 50470-1, EN 50470-3 and MID Class B accuracy. Compact size with 104.7mm x 35.8mm cutout, 63mm depth.
Explore more measuring and testing instruments in the EnvMart Industrial Machines & Instruments category for reliable and precise Energy Metering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This energy meter supports a maximum current capacity of 63A.
It accommodates a voltage range of 184V to 264V AC.
The cutout dimensions for this model are 104.7mm in height and 35.8mm in width.
The meter has a Class B accuracy rating, ensuring legally recognized measurements.
It operates accurately within a temperature range of -25°C to +55°C.
It features an LCD display with 6 digits and a digit height of 85mm for easy readability.
Yes, it includes a programmable pulse output to enable integration with monitoring systems.
It is certified with EN 50470-1, EN 50470-3 standards and has MID Class B approval.
The depth of this model is 63mm.
The energy meter is manufactured in Italy.
This model operates on a single phase.
It belongs to the DME series of energy meters.
