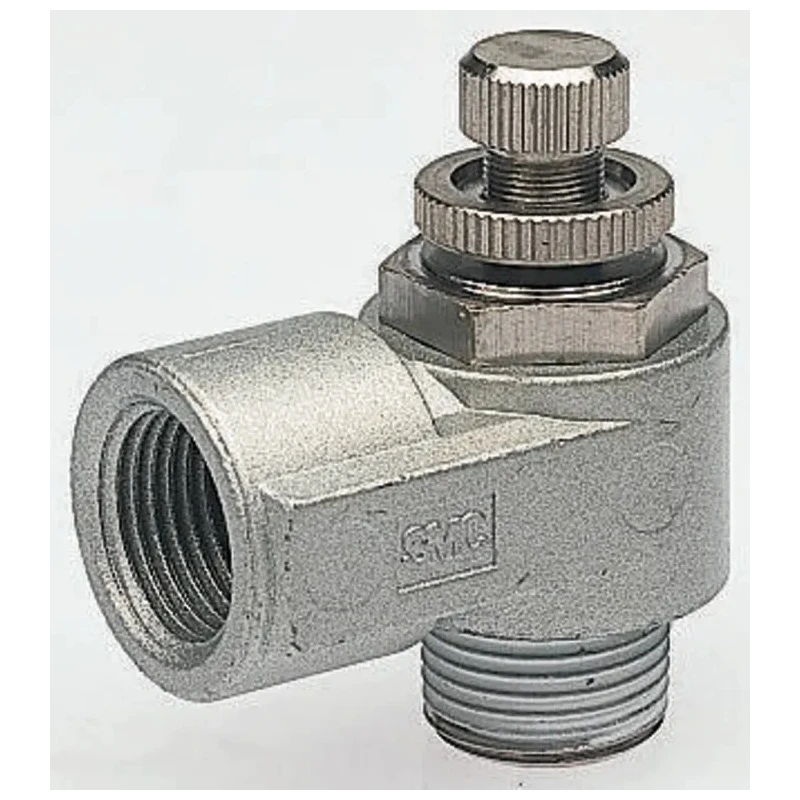

SMC AS Series Exhaust Flow Regulator, Inlet Male Threaded R, Outlet Male Threaded R EAS2200-F02-S

SMC EAS2200-F02-S AS Series Exhaust Flow Regulator features a durable metal body with elbow design and male threaded R type inlet and outlet ports. It is designed for controlling the exhaust air flow precisely in pneumatic actuator systems, commonly used in industrial, manufacturing, HVAC, and automation applications.

The regulator minimizes installation time and cost with its integrated metal elbow body. It facilitates fine-tuning of speed control even at low air velocities, ensuring smooth operation of pneumatic cylinders and actuators. Its retaining function prevents accidental loss of the needle, enhancing system reliability.

The meter out only free flow return design maintains consistent exhaust flow. Tapered port threads (non-M5 size) ensure secure connections and avoid leaks, while the elbow format allows the body to rotate fully by 360 degrees, providing versatile mounting options.

Operating pressure range spans from 0.1 MPa minimum to a maximum of 1 MPa, with capability to withstand proof pressure of 1.5 MPa. It operates reliably within temperature limits from -5°C to 60°C, suitable for various industrial and pneumatic control environments. This exhaust flow regulator does not carry any specific hazardous area certification.

Typical use cases include pneumatic circuit speed control in automation, fluid power machinery, laboratory systems, and manufacturing equipment requiring precise pneumatic exhaust regulation.

Set includes one SMC AS Series Exhaust Flow Regulator with inlet male threaded R and outlet male threaded R connections. Metal body elbow design minimizes installation time and cost. Precise speed control is possible even at low air flow velocities.

Consistent flow speed is maintained easily for pneumatic actuators. Retaining function prevents accidental needle loss ensuring reliability. Meter out only free flow return ensures controlled exhaust flow. Tapered port threads provide secure and leak-free connections.

Elbow style allows 360-degree body rotation for flexible installation. Explore more Pneumatic Function Fittings and flow regulators in the SMC series at EnvMart for your industrial and manufacturing needs.
