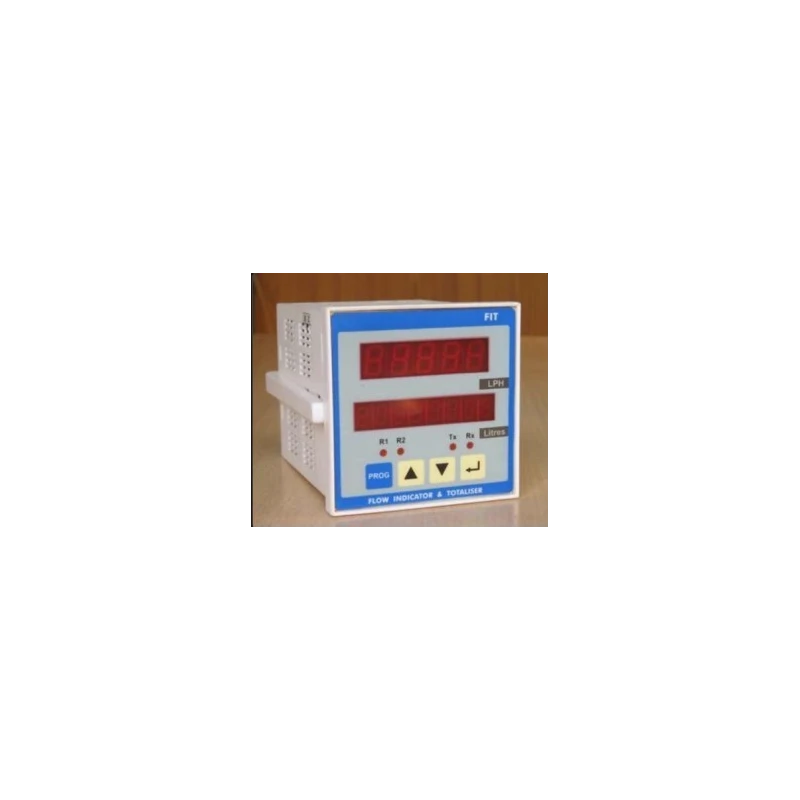

Flow Indicator Totalizer-FIT

Name: Flow Indicator Totalizer-FIT
Brand: ESPL
SKU: ABNUD
Price: 136.2 USD
Availability: InStock



SKU ABNUD Category Flow Totalizers Brand ESPL Condition New

Specifications

Resolution	4 and 1/2 digit for Flow rate.
Accuracy	0.3% of FS 1 LSD (Flow) and 2 Count (Totalizer ).
Display	7 Segment LED 5 - Digit Flow rate 8 - Digit Totalizer.
Connections	On Screw Type Connectors.
Input	4 - 20 mA DC Linear or Square root corresponding to flow rate Factory set.
Keyboard	4 Key Tack-tile Keyboard.
Supply	230 VAC or 110 VAC 10 % Single Phase 50 Hz. Factory set.
Excitation	24 VDC100 mA excitation supply for external Flow Transmitter.
Data Storage	Totalizer value and set points stored in battery backup RAM.
Cabinet	Panel mounting type. Bezel 96 x 96mm (H x W) Depth 120 mm Cutout 92 x 92 mm (H x W)
LED indications	LED indications for Relays and Serial Communication.
Scaling	Flow Rate and Totalizer span and zero are scalable by front keypad.
Re-transmission (Optional)	True 4 - 20 mA re-transmission output for external indicators / recorders or PLC. Maximum load resistance 500 Ohms.
Totaliser	8 Digit Totalizer for flow.
Remote Reset (Optional)	Remote Totalizer reset facility through potential free switch input.
Alarm Output (Optional)	Relay output for 2 set points on flow rate or one for flow rate and one for totaliser or Batching relay. (Refer to ordering info)
Serial Port (Optional)	RS485 port with MODBUS RTU protocol for on-line communication.

Key Features

Ruggedised, State-of-the-art Micro-controller based system.
Dual functionality flow rate indication / 8 digit flow totalizing and Batch Counter mode.
User configurable flow rate range.
Field settable flow totalizing rate.
Relay outputs - Optional for Batch or Set point operation.

Product Description

Flow Indicator Totalizer model FIT is a panel mounted Instrument With Multi-Functionality Viz. Flow Rate Indication, Flow Totalizing, Batch Counter & Alarm For Instantaneous Flow. It Accepts MA Signal Proportional To Flow Rate From Flow Transmitter. Flow Transmitter Can Be DPT With Orifice Assembly, Rotameter, Magnetic Flowmeter Etc. With Output Of 4-20 MA.FIT Displays The Instantaneous Flow Rate On 5 Digit LED Display. Flow Rate And Totalizer Range Can Be Configured As Required Even At the Site. Totalizer Is A 8 Digit LED Display. Totalizer Can Be Reset Manually Or Remotely As Optional. The Unit Incorporates Two Relays, From Which One Can Be Used For Alarm For Instantaneous Flow & One For Batch Counter Or Both For Alarm. On Each Set Point, One Contact Output Is Given, Which Can Be Used For Control Or Hooter Applications. Power Supply For External Transmitter (24 VDC @ 100mA) Is A Standard Feature. It Eliminates the Need For a Separate Power Supply To Power The Transmitter. For Batch Counting, Batch Count Can Be Set. When Flow Total Equals Preset Count, System Gives A Contact Output. It Can Be Used For Control Operations Like Dosing, Stoppage Etc. Optional Type of input 4-20 mA Linear / Square root type.There Are Two Relay Outputs Which Operate On Flow Rate And/Or Totaliser As Per Combination Selected.FIT Also Provides Linear 4 - 20 MA True Retransmission Signal For Other Panel Mounted Instruments Like Recorders, Controllers Etc.Serial Connectivity On RS485 Port With MODBUS RTU Protocol.

24VDC 100 mA Excitation Supply for external use.
Retransmission output - Optional.
Serial communication port with MODBUS protocol - Optional.
Flameproof enclosure - Optional.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The accuracy of this model is 0.3% of full scale for flow and 2 counts for the totalizer.

It features a 5-digit LED display for flow rate and an 8-digit LED display for totalizer.

The unit can be powered by either 230 VAC or 110 VAC at 10% single phase, operating at 50 Hz.

It accepts a 4-20 mA DC input, which can be linear or square root corresponding to the flow rate.

The cabinet dimensions are 96 x 96 mm (H x W) with a depth of 120 mm and a cutout size of 92 x 92 mm (H x W).

Yes, it incorporates two relay outputs that can be used for alarms or batch counting based on flow rate or totalizer settings.

Yes, both the flow rate and totalizer span can be scaled using the front keypad.

Yes, there is an optional remote totalizer reset facility available through a potential-free switch input.

The serial port supports RS485 communication with MODBUS RTU protocol for online communication.

The resolution for flow rate measurement is 4 and 1/2 digits.

Totalizer values and set points are stored in battery backup RAM, ensuring data retention even during power loss.

Yes, there is an optional true 4-20 mA re-transmission output available for external indicators or recorders, with a maximum load resistance of 500 Ohms.
