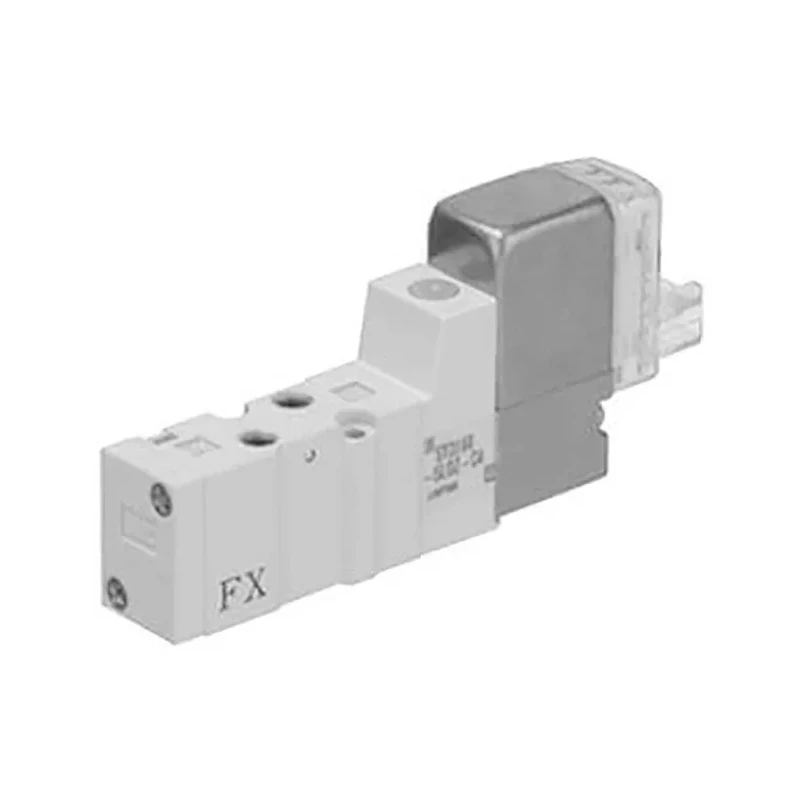

SMC Solenoid Pilot Valve Solenoid Rc 5-Port 0.15-0.7 MPa Die Cast Zinc Body SYJ3000

SMC SYJ3243-5LOZ-Q is a solenoid pilot valve of the SYJ3000 series featuring an Rc connection thread and 5 ports, engineered for pneumatic fluid power control. Constructed with a die cast zinc body, it ensures mechanical durability and longevity in industrial environments.

The valve functions as a 5/2 type with 2 positions, supporting operating pressure ranges from 0.15 MPa to a maximum of 0.7 MPa. It operates reliably within ambient and fluid temperature limits from -10°C up to 50°C, suitable for diverse pneumatic applications.

The maximum flow rate of 122 L/min allows efficient air control, while the minimum pilot pressure requirement of 0.1 MPa guarantees sensitive actuation. Its effective area specifications include 0.9 Cv for the 5 port body ported version and 1.8 Cv for the 5 port base mounted with sub-plate configuration, enabling flexible installation setups.

This valve is suitable for use with air as the fluid medium and is designed to meet rigorous industrial standards, though it does not carry specific approvals. It supports coil voltages of 3, 5, 6, 12, and 24 VDC, as well as 100, 110, 200, and 220 VAC, providing compatibility with various power sources.

The valve body is crafted from die cast zinc for strength and corrosion resistance. Actuation via solenoid ensures fast and precise valve operation. 5 port configuration facilitates complex pneumatic circuit control. Designed for a temperature range from -10°C to 50°C suitable for diverse environments.

Maximum operating pressure of 0.7 MPa supports robust pneumatic systems. Minimum pilot pressure set at 0.1 MPa for reliable valve actuation. Japanese engineering and quality manufacturing standards. Coil rated voltages cover a wide range for flexible application.

Valve offers 2 positions for effective pneumatic control.

This solenoid valve is ideal for industrial automation, pneumatic control systems, manufacturing machinery, HVAC, and fluid handling applications in commercial and industrial settings. It offers reliable performance, ease of integration, and robust material construction suitable for demanding pneumatic environments.
