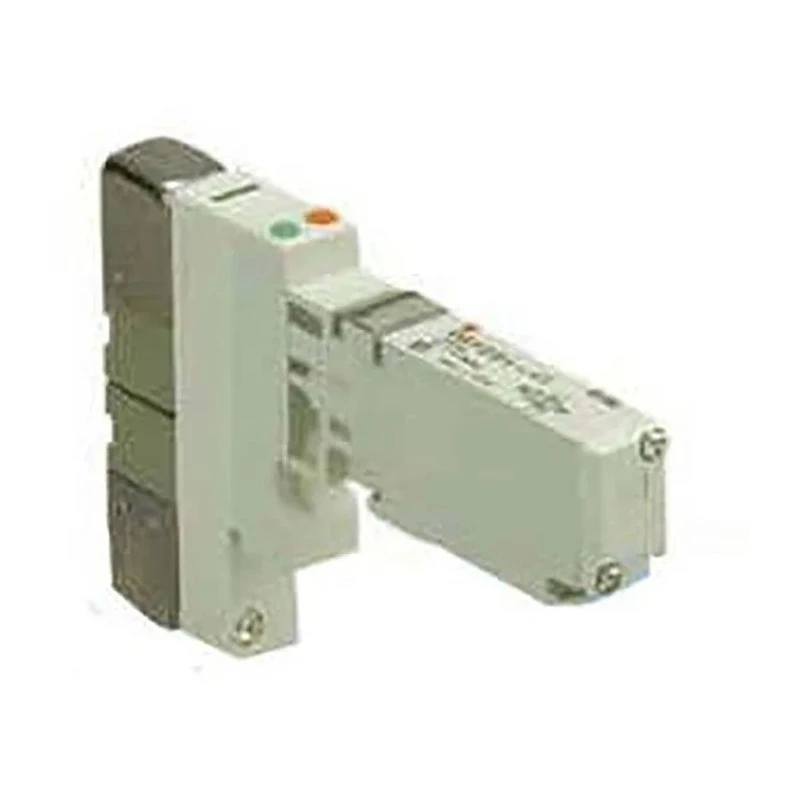

SMC Solenoid Pilot Valve 5/3 Solenoid Rc VQ Series 24V Double Solenoid Actuation Die Cast Zinc Body VQ1300N-51-Q

SMC VQ1300N-51-Q Solenoid Pilot Valve 5/3 Solenoid Rc VQ Series 24V is an industrial-grade pneumatic solenoid valve designed for precise control of air and inert gases in various applications. Constructed with a durable die cast zinc body and rubber seal materials, it offers excellent reliability and long service life in demanding environments.

This valve features five threaded ports with the Rc connection thread standard and female port gender. It supports a 5/3 valve function with three positions, making it suitable for complex pneumatic control circuits where multiple flow paths are needed.

Operating within an ambient and fluid temperature range from -10°C to 50°C, and pressure ranges from 0.1 MPa to 0.7 MPa (maximum operating pressure at 0.7 MPa), it adapts well to varied pneumatic systems. The effective area for metal seals is 3.6 mm² and for rubber seals is 5.4 mm², allowing efficient flow management.

The valve coil is rated for 24 VDC with a power consumption of 0.95 W, ensuring energy efficiency. Dimensions of 123 mm length, 63.5 mm width, and 93.5 mm height offer a compact footprint for integration in pneumatic assemblies. This model adheres to CE approval standards and is made in Japan, reflecting high manufacturing quality.

Typical industrial applications include fluid power control in automation systems, manufacturing lines, and pneumatic tool actuation. It is widely used in sectors such as automotive production, packaging, and laboratory instrumentation.

Operates within an ambient and fluid temperature range of -10 to 50°C. 5 threaded ports with female Rc connection for secure fittings. Supports 5/3 valve function with 3 positions for versatile flow control. Maximum flow rate of 178 L/min for high-performance pneumatic systems.

Die cast zinc body with rubber seal material for durability and reliability. Coil rated voltage of 24 VDC and low power consumption of 0.95 W. Compact dimensions suitable for tight installation spaces. CE standards compliant and manufactured in Japan.

This SMC solenoid pilot valve is a reliable component essential for precise pneumatic fluid control in diverse industrial, manufacturing, laboratory, and automation environments. For more pneumatic valves and related equipment, explore EnvMart’s extensive category of industrial valves and valve fittings.
