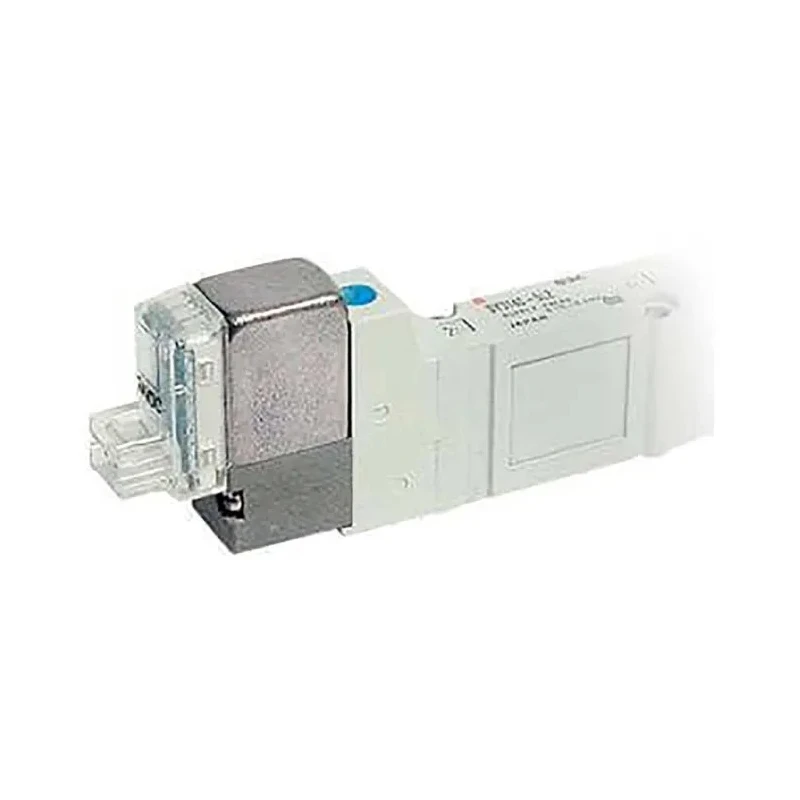

SMC Solenoid Pilot Valve 24V DC, 0.7 Mpa, 746 L/min Flow Rate, Body Ported Aluminium SY5000

SMC SY5120-5YD-C6F-Q Solenoid Pilot Valve SY5000 Series is engineered for pneumatic applications utilizing air as the working fluid. It is built to support industrial, manufacturing, HVAC, and fluid power systems requiring reliable pilot valve operation at pressures up to 0.7 Mpa.

This valve provides a 5/2 valve function with two positions and five ports, allowing accurate directional control of compressed air flow in pneumatic circuits. The body is constructed from aluminium, offering strength and corrosion resistance, while the seal material uses halogenated nitrile rubber ensuring durability under varying temperature conditions from -10°C to 50°C.

The valve operates reliably in these ambient and fluid temperature ranges without freezing and requires a minimum pilot pressure of 0.15 MPa to actuate. It features a coil rated for 24V DC (also compatible with 12V DC) to energize the solenoid.

Mounting is body ported with a base design for stable and secure installation. Its compact physical dimensions make it suitable for integration in confined industrial pneumatic assemblies. The valve body conforms to NPT thread standards with a 6 mm thread size for straightforward piping connection.

5-port, 5/2 solenoid pilot valve function enables versatile air flow control. Aluminium body ensures robustness and low weight. Halogenated nitrile rubber seals for high reliability and tight sealing. Operating temperature range suitable for common industrial environments.

Maximum flow rate of 746 L/min supports high efficiency. Coil voltage options: 24V DC and 12V DC. Compact dimensions allow installation flexibility. Meets RoHS standards for environmental compliance.

This product is ideal for industrial pneumatic systems, fluid power tool assemblies, and HVAC pneumatic controls where durability, precision, and reliable pilot valve performance are required. It represents a premium SMC pneumatic valve solution made in Japan, assuring quality and long operational life.
