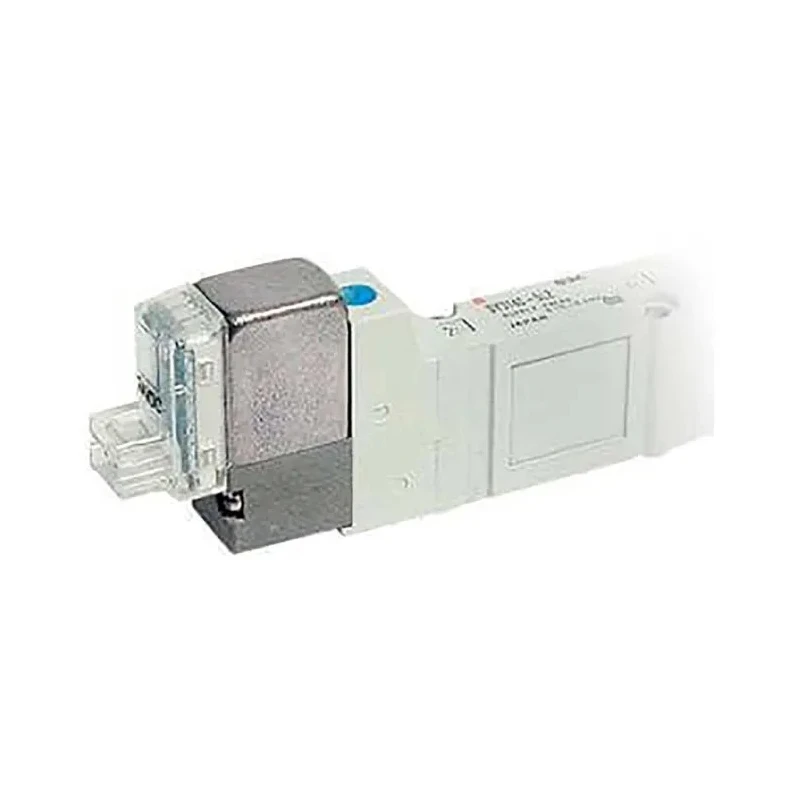

SMC Solenoid Pilot Valve Rc Series , 5 Ports, 0.7 Mpa, 24V DC, Body Ported, Air Fluid SY3000

SMC SY3220-5MOU-C6-Q Solenoid Pilot Valve Rc Series is engineered for pneumatic applications requiring a reliable solenoid pilot valve with precise control. This valve includes five ports with a one-touch fitting type for quick and secure connections, making installation and maintenance efficient.

Constructed with a die cast zinc body, the valve offers durability in industrial environments. It operates with a maximum pressure of 0.7 Mpa, suitable for a range of pneumatic fluid power uses. The valve’s function features include single action, exhaust, pressure center, closed, and double-acting mechanisms, supporting diverse operational requirements.

The valve seals are made from halogenated nitrile rubber combined with aluminium, ensuring resistance to wear and leakage. It supports a coil rated voltage of 24 V DC and 12 V DC, typical for industrial pneumatic systems. Designed to work within an ambient and fluid temperature range from -10°C to 50°C without freezing, it offers robust performance in varied conditions.

This solenoid pilot valve is compliant with RoHS standards, guaranteeing reduced environmental impact. With a maximum flow rate of 276 L/min, it sustains efficient air flow for pneumatic controls. The mount type is body ported with a base, facilitating stable and secure fitting within pneumatic assemblies.

Manufactured in Japan, this valve upholds stringent quality and reliability standards, ideal for industrial, manufacturing, HVAC, pneumatic automation, and fluid power applications. The valve requires a minimum pilot pressure of 0.1 MPa to initiate operation ensuring precision and reliability in control systems.

The valve features a one-touch fitting port type for easy connection. It has a die cast zinc body material ensuring durability. The valve functions with a single action, double acting, pressure centre and exhaust closed design.

Suitable for operating temperatures ranging from -10°C to 50°C without freezing. The seal material combines halogenated nitrile rubber and aluminium for effective sealing. Mount type is body ported with a base configuration.

The maximum flow rate is 276 L/min for efficient air flow. It is RoHS compliant ensuring environmental safety. The product is manufactured in Japan maintaining high quality standards. The valve operates with a minimum pilot pressure of 0.1 MPa.
