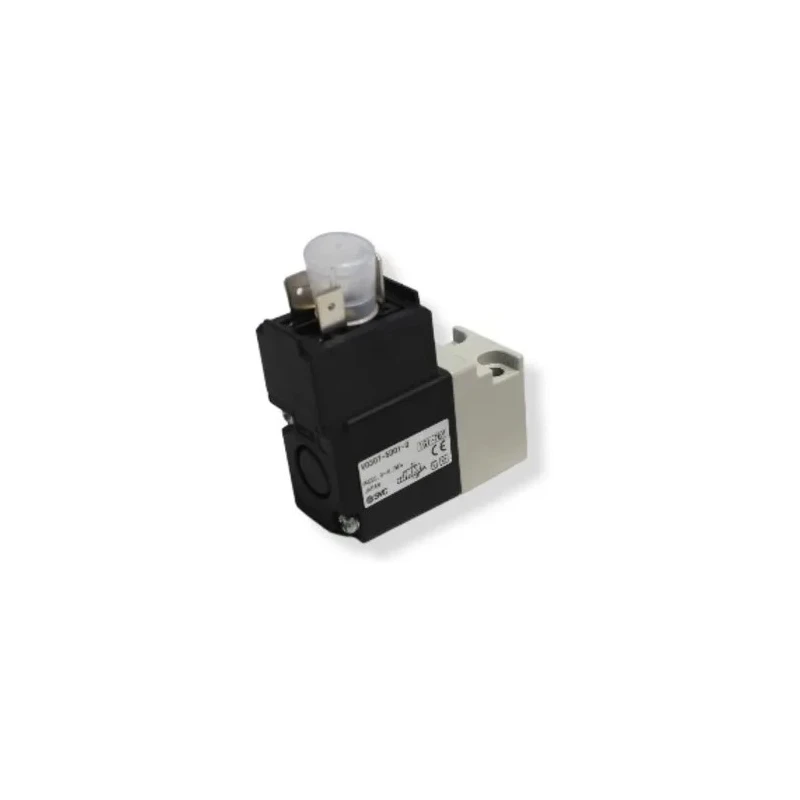

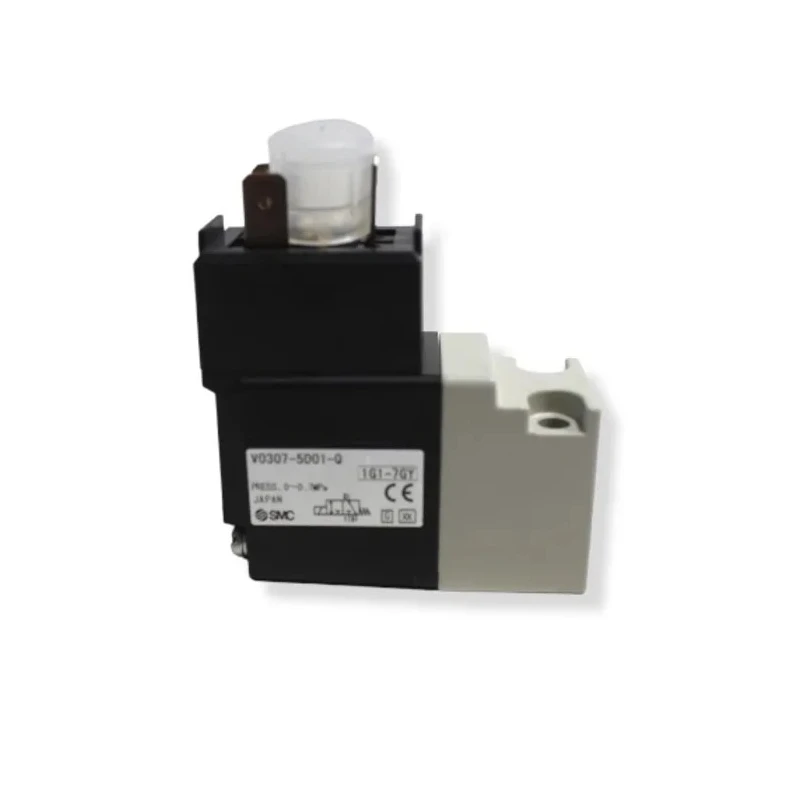

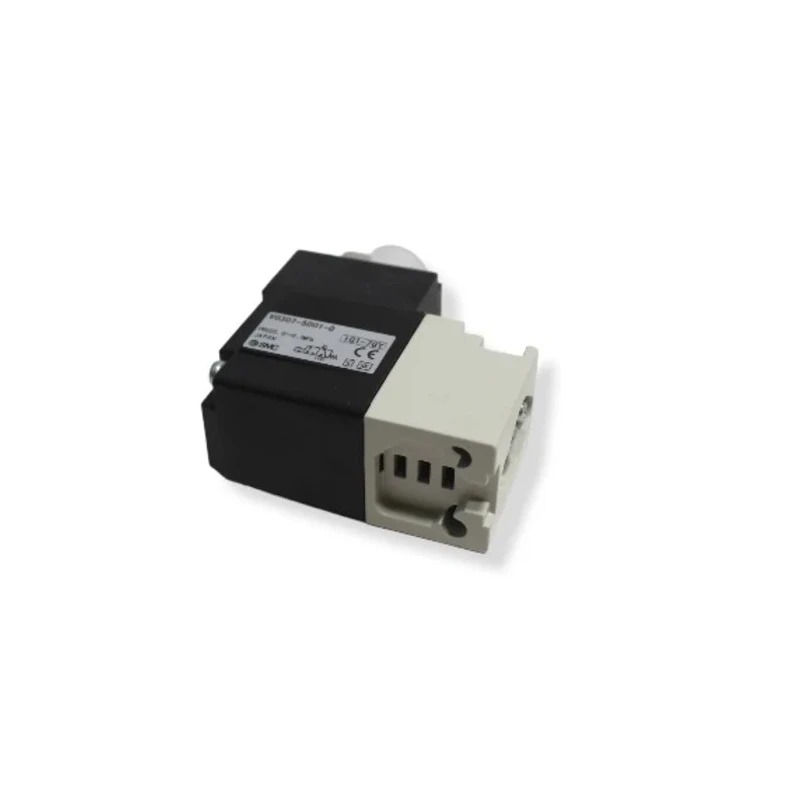

SMC Pneumatic Solenoid/Pilot-Operated Control Valve 3/2 Solenoid Rc, 24V, 4W, Aluminium Body VT307

SMC VT307 Pneumatic Solenoid/Pilot-Operated Control Valve 3/2 Solenoid Rc Series, rated at 24V nominal voltage and 4W solenoid power consumption, is designed for reliable pneumatic control in industrial settings. With an aluminium body and manifold mount type, it suits various automation and fluid power systems where efficient switching of air flow is required.

The valve features a port size of 1/8 inch with Rc threaded connection and female port gender, allowing integration with compatible pneumatic piping and systems. It supports a maximum operating pressure of 0.7 MPa and pilot pressure range between 0.15 MPa and 0.7 MPa, providing versatility in controlling flow under different conditions.

Operating temperature spans from -10°C to 50°C enabling use in diverse environments. The valve's flow capacity of up to 172 liters per minute ensures adequate air supply for medium-duty pneumatic actuations. It is a two-position valve with a valve function of 3/2, operated by a single solenoid via a DIN electrical connector, assuring secure and straightforward wiring.

Its hydrogenated nitrile rubber (HNBR) seal gives low concentration ozone resistance, enhancing seal longevity and reliability in harsh industrial atmospheres. The product has been certified compliant with CE and RoHS standards, ensuring adherence to European safety and environmental directives.

This control valve is ideal for industrial automation, manufacturing, fluid control, HVAC systems, and pneumatic machinery requiring precise and rapid directional control of compressed air. Its compact size dimensions (Height: 33.2 mm, Length: 56.2 mm, Width: 29.5 mm) support space-saving installation in manifold assemblies.

Compact manifold mount with aluminium body ensures durability and easy installation. Voltage rating of 24V and solenoid power of 4W for energy-efficient operation. Operates at pressures up to 0.7 MPa with pilot pressures from 0.15 to 0.7 MPa.

Port size 1/8 inch with Rc threaded connection and female gender for compatibility. Wide operating temperature range from -10°C to 50°C. Maximum flow rate 172 L/min suitable for medium flow pneumatic lines. Valve function 3/2 with two electrical positions using DIN connector.

HNBR seal provides low ozone concentration resistance for enhanced durability. Complies with CE and RoHS to meet safety and environmental standards. Explore more Pneumatic Solenoid Valves and associated components at EnvMart for industrial fluid power and automation solutions.
