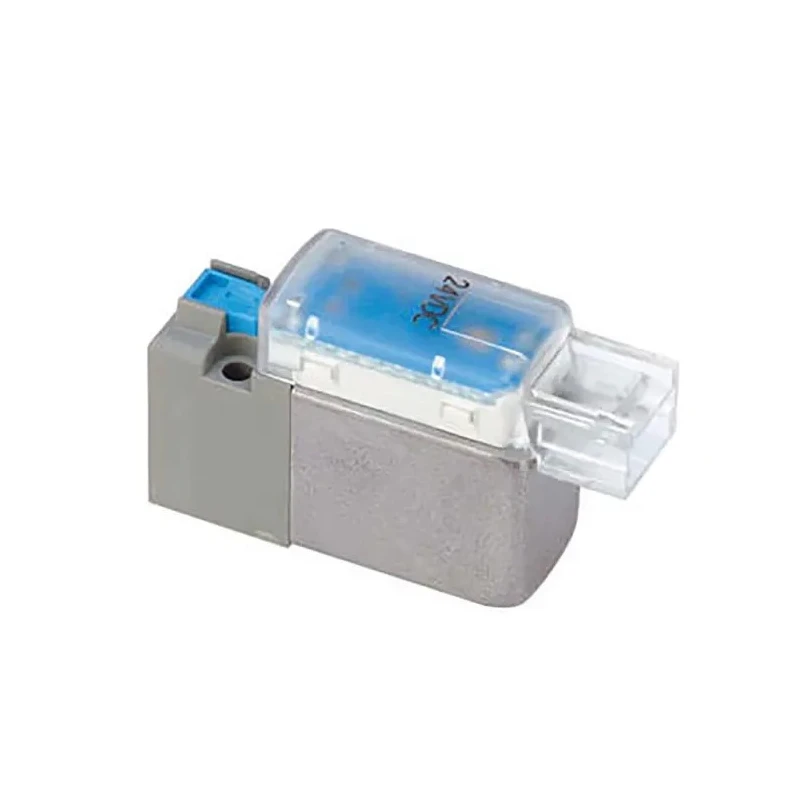

SMC Solenoid Pilot Valve 3/1 Solenoid Rc V100 Series 24V V114-5G

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve 3/1 Solenoid Rc V100 Series 24V V114-5G



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	0.7 Mpa
Height	28.5mm
Length	30.9mm
Model	V114-5G
Width	15.5mm
Mount Type	Base
Series	V100
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	1
Port Size	M5
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	7.4L/min
Standards/Approvals	RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	0MPa
Valve Function	3/1
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

The valve features a 3-port, 1-position configuration for precise fluid control.
Operates with 24 volts and consumes 0.35 watts of solenoid power for energy efficiency.
Constructed with resin body and rubber seals ensuring reliability and durability.
Rated for a maximum operating pressure of 0.7 MPa and maximum flow rate of 7.4 L/min.
Designed for temperatures ranging from -10°C to 50°C for versatile industrial use.
Includes a grommet type electrical connection and base mount for easy installation.
Port size is M5 with Rc connection thread and female port gender.
Complies with RoHS standards ensuring environmental safety.

Product Description

SMC V114-5G Solenoid Pilot Valve 3/1 Solenoid Rc V100 Series 24V offers an ultra-compact, direct-acting design for precise pneumatic fluid control in industrial, manufacturing, and automation systems. Its 3-port, 1-position valve function supports manifold mounting with options for normally open and normally closed configurations, providing flexibility for various use cases.

The valve operates at a voltage of 24V and utilizes a power-saving solenoid consuming just 0.35 watts. Built with a durable resin body and rubber seals, it withstands operating pressures up to 0.7 MPa and maintains reliable performance within a temperature range of -10°C to 50°C.

Its M5 port size and Rc standard connection thread combined with female port gender enable compatibility with common pneumatic setups. The grommet electrical connection and base mount type simplify installation and maintenance. This valve is RoHS compliant, reflecting environmental and safety standards compliance.

Ideal for pneumatic valve manifolds and control systems in industrial automation, fluid power, HVAC, and manufacturing sectors. The valve’s compact dimensions of 30.9mm length, 15.5mm width, and 28.5mm height make it suitable for space-sensitive applications.

The valve is constructed with a high-quality resin body for durability and light weight. Rubber seal ensures leak-proof operation and longevity. 3-port valve function suitable for directional flow control. Energy-efficient solenoid reduces operational costs.

Manufactured in Japan ensuring superior manufacturing standards and quality control.

Set your pneumatic systems for enhanced precision, efficiency, and reliability with the SMC V114-5G Solenoid Pilot Valve. Explore other pneumatic valve options and accessories in the Industrial Valves category at EnvMart for comprehensive solutions.
