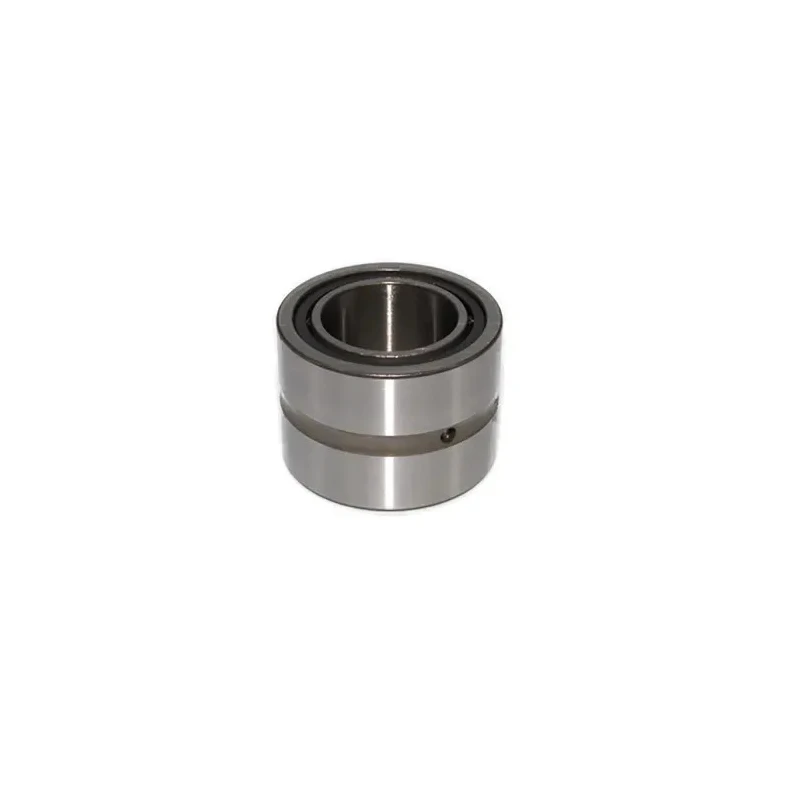

INA Needle Roller Bearing 12 mm ID, 24 mm OD, 22 mm Race Width NA6901-XL
Specifications
| Country of Origin | India |
|---|---|
| Brand | INA |
| Model | NA6901-XL |
| Outside diameter | 24mm |
| Inside Diameter | 12mm |
| Number of Rows | 1 |
| Limiting Speed | 23200rpm |
| Internal Clearance | CN |
| End Type | Open |
| Bore Type | Parallel |
| Bearing Type | Needle |
| Race Width | 22mm |
| Static Load Rating | 21.6kN |
| Better World Claim | Extended Product Life, Saves Energy |
| Dynamic Load Rating | 18.1kN |
| Maximum Speed - Grease | 13900rpm |
Key Features
- The bearing has a race width of 22 mm, enabling compact installation.
- It supports limiting speeds up to 23,200 rpm and maximum grease-lubricated speeds of 13,900 rpm.
- Internal clearance is CN, with an open end type configuration.
- Designed to accommodate high radial forces and misalignments effectively.
- The needle bearing is suitable for use as a non-locating bearing allowing axial displacement.
- It offers extended product life with energy-saving performance.
- Bearing type is needle, optimized for compact and cost-effective bearing arrangements.
- Single-row design with parallel bore type for straightforward mounting.
Product Description
INA NA6901-XL needle roller bearing features a 12 mm inside diameter, 24 mm outside diameter, and 22 mm race width, engineered for high radial load support in demanding mechanical applications.
This bearing supports limiting speeds of 23,200 rpm and grease-lubricated maximum speeds of 13,900 rpm, suitable for high-speed rotational equipment.
With a single row and open end, the bearing permits axial displacement of the shaft relative to the housing, functioning as a non-locating bearing ideal for compensating misalignments.
The needle roller bearing design allows high to very high radial forces, providing a compact radial design envelope and requiring minimal installation space. The bearing's internal clearance is CN, and it features a parallel bore type which simplifies mounting processes.
It achieves extended product life and energy-saving benefits, making it a sustainable choice for industrial use. The bearing is suitable for industrial machinery, manufacturing equipment, and construction tools requiring compact roller bearings.
It is optimized for environments demanding high radial load capacity combined with high rotational speeds. Typical applications include power transmission systems, conveyor components, and rotary units in automation systems.
The open end type allows for easier lubrication and maintenance in demanding operational contexts. Its robust dynamic and static load ratings ensure reliable performance in continuous operation. Choose INA needle Roller Bearings for their proven durability, energy efficiency, and optimized design in demanding engineering applications.
Explore more roller bearing products and technical solutions at EnvMart for your industrial machinery needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This bearing has an inside diameter of 12 mm, an outside diameter of 24 mm, and a race width of 22 mm.
The INA NA6901-XL supports limiting speeds of up to 23,200 rpm.
When grease-lubricated, the maximum speed for this bearing is 13,900 rpm.
The internal clearance of the INA NA6901-XL is classified as CN.
This model has a dynamic load rating of 18.1 kN and a static load rating of 21.6 kN.
It is a needle roller bearing designed for high radial load support.
The INA NA6901-XL features an open end type configuration.
This model has a single row design.
The bore type of this bearing is parallel, which simplifies the mounting process.
It is suitable for industrial machinery, manufacturing equipment, and construction tools that require compact roller bearings.
The INA NA6901-XL is manufactured in India.
