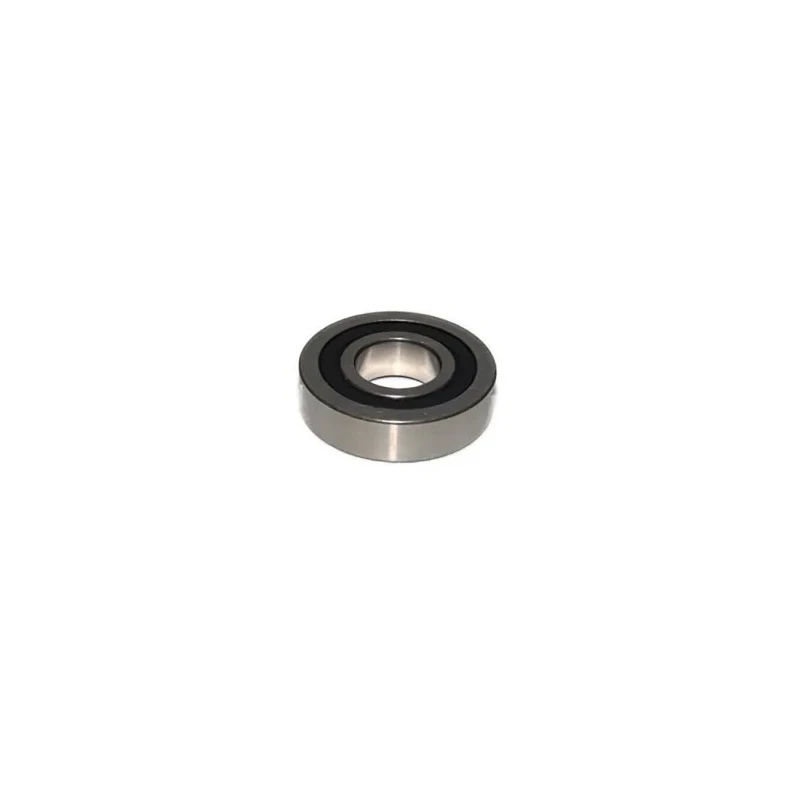

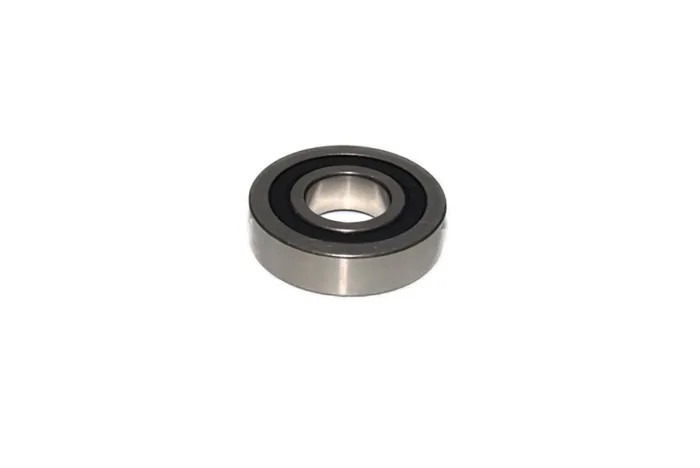

INA Yoke Cam Follower Roller Diameter 80mm Bore Diameter 35mm Static Load Rating 26.5kN Dynamic Load LR5207-2HRS-TVH-XL
Specifications
| Country of Origin | India |
|---|---|
| Brand | INA |
| Model | LR5207-2HRS-TVH-XL |
| Sub Type | Yoke |
| Roller Diameter | 80mm |
| Bore Diameter | 35mm |
| Static Load Rating | 26.5kN |
| Dynamic Load Rating | 33kN |
| Ball bearing track rollers | Are ready-to-fit, single or double row rolling bearings based on deep groove or angular contact ball bearings |
Key Features
- Constructed with thick-walled outer rings for enhanced durability.
- Sealed on both sides for protection against contaminants.
- Capable of supporting high radial and axial loads.
- Features crown or cylindrical outside surface for smooth operation.
- Designed to tolerate small misalignment and impact loads.
- Available with plastic tyre variants for low-noise running.
- Adjustable via eccentric collar for accommodating manufacturing tolerances.
- Suitable for mounting on flat mating tracks without need for housing bore.
Product Description
INA LR5207-2HRS-TVH-XL Yoke Cam Follower is a precision-engineered roller bearing with an 80mm roller diameter and 35mm bore diameter. It is designed to operate efficiently in industrial mechanical systems requiring robust load capacity and durability.
This cam follower incorporates thick-walled outer rings with crowned or cylindrical profiles to endure high radial loads. It can accommodate axial loads arising from minor misalignments or skewed running, making it suitable for demanding manufacturing and industrial applications.
The bearing is sealed on both sides to prevent intrusion of dust and contaminants, thereby extending service life. For noise-sensitive applications, versions with plastic tyres on the outer ring are available, ensuring quieter operation.
Adjustability through the eccentric collar allows for adaptation to mating tracks, compensating for larger manufacturing tolerances or misalignments in adjacent components.
These ball bearing track rollers are ready-to-fit components based on deep groove or angular contact ball bearings. They are not mounted in housing bores but supported directly on flat mating surfaces.
Constructed with thick-walled outer rings for enhanced durability. Sealed on both sides for protection against contaminants. Capable of supporting high radial and axial loads. Features crown or cylindrical outside surface for smooth operation.
Designed to tolerate small misalignment and impact loads. Available with plastic tyre variants for low-noise running. Adjustable via eccentric collar for accommodating manufacturing tolerances. Suitable for mounting on flat mating tracks without need for housing bore.
These roller cam followers are widely used in industrial machinery for applications such as automation, manufacturing equipment, conveyor systems, and fluid power assemblies. Explore the full range of Cam Followers for industrial uses at EnvMart to find compatible components and related mechanical parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The roller diameter of this cam follower is 80mm.
The bore diameter of this model is 35mm.
The static load rating is 26.5kN, and the dynamic load rating is 33kN.
It is designed to tolerate small misalignment and can accommodate axial loads arising from minor misalignments or skewed running.
It features a crown or cylindrical outside surface for smooth operation.
Yes, it is sealed on both sides to prevent the intrusion of dust and contaminants.
It is constructed with thick-walled outer rings for enhanced durability.
Yes, it is adjustable via an eccentric collar to accommodate manufacturing tolerances.
It is suitable for applications in automation, manufacturing equipment, conveyor systems, and fluid power assemblies.
Yes, versions with plastic tyres on the outer ring are available for low-noise running.
It is suitable for mounting on flat mating tracks without the need for a housing bore.
The country of origin for this cam follower is India.
