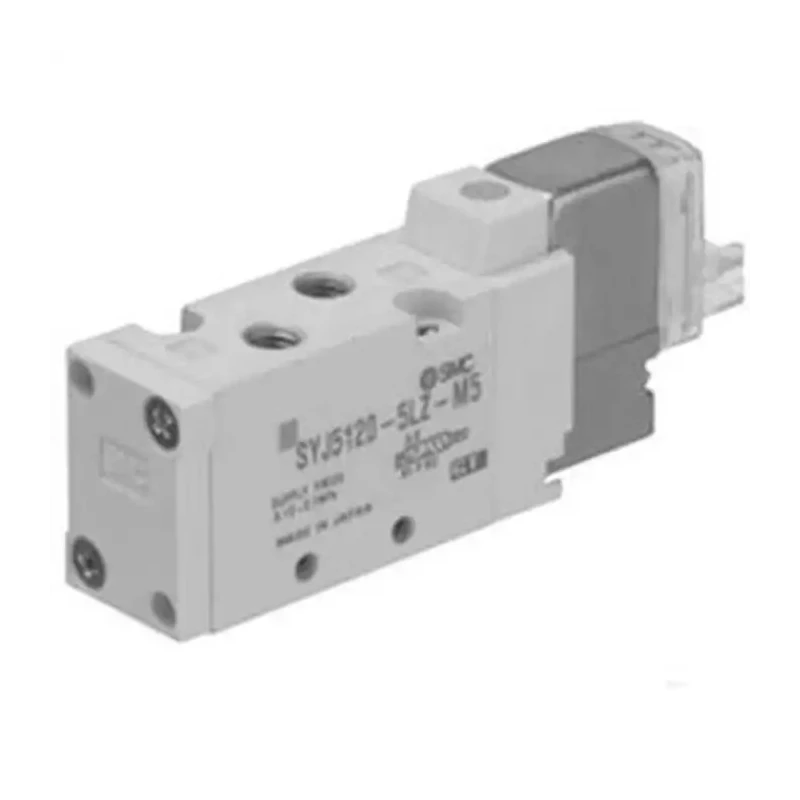

SMC Pneumatic Solenoid Valve 5-Port Die Cast Aluminium Body Ported 24V Double Solenoid SY5000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5-Port Die Cast Aluminium Body Ported 24V Double Solenoid SY5000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	7 bar
Model	SY5000
Mount Type	Body Ported
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	214L/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0.15MPa
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Double
Solenoid Power Consumption	0.35W

Key Features

Features a die cast aluminium body with a body ported mount type.
Operates reliably between -10°C and 50°C ambient temperatures.
Designed for maximum operating pressure of 7 bar with a maximum flow rate of 214 L/min.
Equipped with hydrogenated nitrile rubber seals for enhanced durability.
Consumes only 0.35W of power ensuring energy efficiency.
Includes 2 positions with 5 ports, suitable for manifold or individual mounting.
Maximum pilot pressure of 0.7 MPa and minimum pilot pressure of 0.15 MPa.
Certified RoHS compliant and manufactured in Japan.

Product Description

SMC SYJ5223-5LOU-M5-Q Pneumatic Solenoid Valve from the SY5000 Series is a high-performance 5-port valve featuring a compact design and low power consumption with double solenoid actuation at 24V DC. This valve is constructed with a robust die cast aluminium body and uses hydrogenated nitrile rubber seals ensuring longevity under industrial conditions.

The valve is body ported facilitating manifold or individual mounting flexibility. It supports a maximum operating pressure of 7 bar, with pilot pressures ranging from 0.15 MPa to 0.7 MPa, and provides a maximum flow rate of 214 L/min. The operating temperature range is between -10°C and 50°C making it suitable for diverse environmental conditions.

Energy efficiency is enhanced by a low solenoid power consumption of 0.35W. With two positions and five ports, it offers reliable fluid control in pneumatic systems and is RoHS compliant, ensuring environmentally responsible manufacturing. Manufactured in Japan, this valve is ideal for pneumatic applications in industrial automation, manufacturing, fluid power, and process control systems.

Features a die cast aluminium body with a body ported mount type. Operates reliably between -10°C and 50°C ambient temperatures. Designed for maximum operating pressure of 7 bar with a maximum flow rate of 214 L/min. Equipped with hydrogenated nitrile rubber seals for enhanced durability.

Consumes only 0.35W of power ensuring energy efficiency. Includes 2 positions with 5 ports, suitable for manifold or individual mounting. Maximum pilot pressure of 0.7 MPa and minimum pilot pressure of 0.15 MPa. Certified RoHS compliant and manufactured in Japan.

This pneumatic solenoid valve series is widely used in industrial supplies, particularly in pneumatic valve assemblies in manufacturing, automation, HVAC systems, and fluid control applications.
