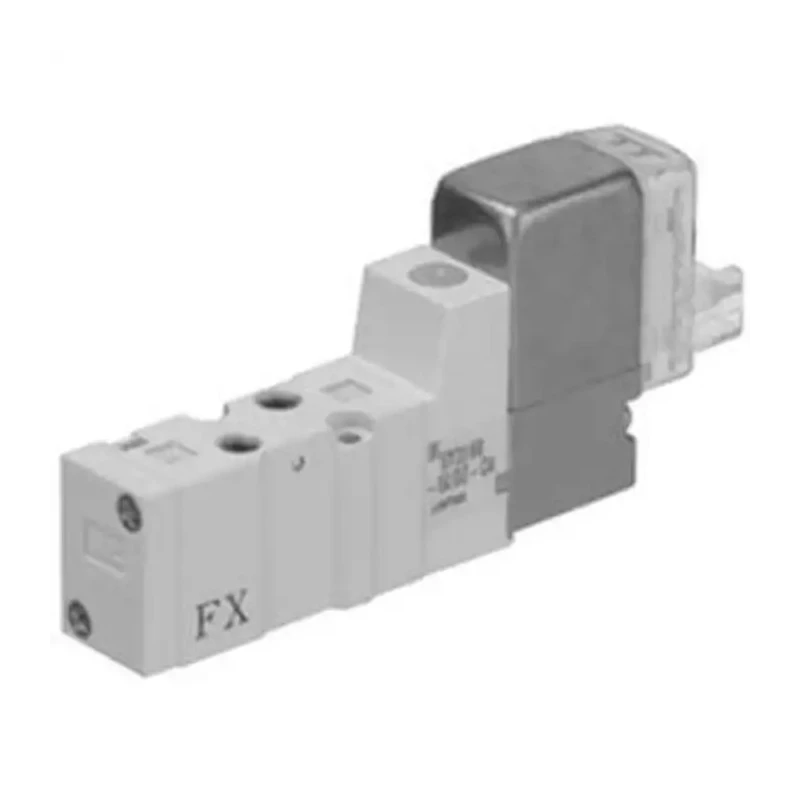

SMC Pneumatic Solenoid Valve 24V 0.35W 5-Port 3-Position Base Mount Die Cast Zinc Body SY3000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 24V 0.35W 5-Port 3-Position Base Mount Die Cast Zinc Body SY3000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	7 bar
Model	SY3000
Mount Type	Base
Series	SY3000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	3
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	122L/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0.15MPa
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Exhaust Center
Solenoid Power Consumption	0.35W

Key Features

Operates at 24 volts DC with a solenoid power consumption of 0.35W.
Features 5 ports and 3 positions for versatile pneumatic control.
Constructed with a durable die cast zinc body and hydrogenated nitrile rubber seals.
Suitable for operating pressures up to 7 bar and temperatures between -10°C to 50°C.
Base mount type design allows for individual or manifold mounting applications.
Designed with exhaust center solenoid type for efficient performance.
Maximum flow rate of 122 litres per minute for effective air handling.
Meets RoHS standards ensuring compliance with environmental regulations.

Product Description

SMC SYJ3443-5LOU-Q Pneumatic Solenoid Valve from the SY3000 series provides efficient control of pneumatic circuits with its 24V DC solenoid operation and compact design. This valve supports 5 ports and 3 position control, ideal for diverse industrial applications requiring precision airflow control.

The valve is designed with a die cast zinc body offering robustness and resistance to industrial environments. Sealed with hydrogenated nitrile rubber, it ensures reliable operation over a wide temperature range from -10°C to 50°C. Its base mount variant allows flexible installation either individually or manifold mounted to suit pneumatic system layouts.

Operating pressure ranges from 0.15 MPa minimum pilot pressure to 0.7 MPa maximum pilot pressure, with a safe maximum operating pressure of 7 bar. With a maximum flow rate of 122 litres per minute, it enables effective air handling in pneumatic systems. The solenoid consumes minimal power at 0.35W, enhancing energy efficiency.

This valve series incorporates an exhaust center solenoid type, which helps in effective exhaust flow when switching positions, enhancing system performance. Its compliance with RoHS standards confirms adherence to environmental and safety regulations.

Engineered and manufactured in Japan, the product reflects high-quality standards and reliability needed in demanding industrial settings including manufacturing, automation, process control, HVAC systems, and pneumatic machinery.

Operates at 24V DC with low power consumption of 0.35W. Constructed with durable die cast zinc body and hydrogenated nitrile rubber seals. Supports 5 ports and 3 positions for versatile control. Base mount design for flexible installation options.

Maximum operating pressure of 7 bar suitable for industrial use. Maximum flow rate of 122L/min for efficient airflow. Operating temperature range of -10°C to 50°C ensures applicability in varied environments. Meets RoHS environmental compliance standards.

Manufactured in Japan for assured quality and performance. Discover more Pneumatic Solenoid Valves and industrial valve fittings at EnvMart, your reliable source for high-quality pneumatic and hydraulic components.
