SMC Pneumatic Solenoid Valve 5 Port Base Mount Die Cast Zinc Body 24V SY3000

Free Delivery in India | Lowest Global Shipping Charges

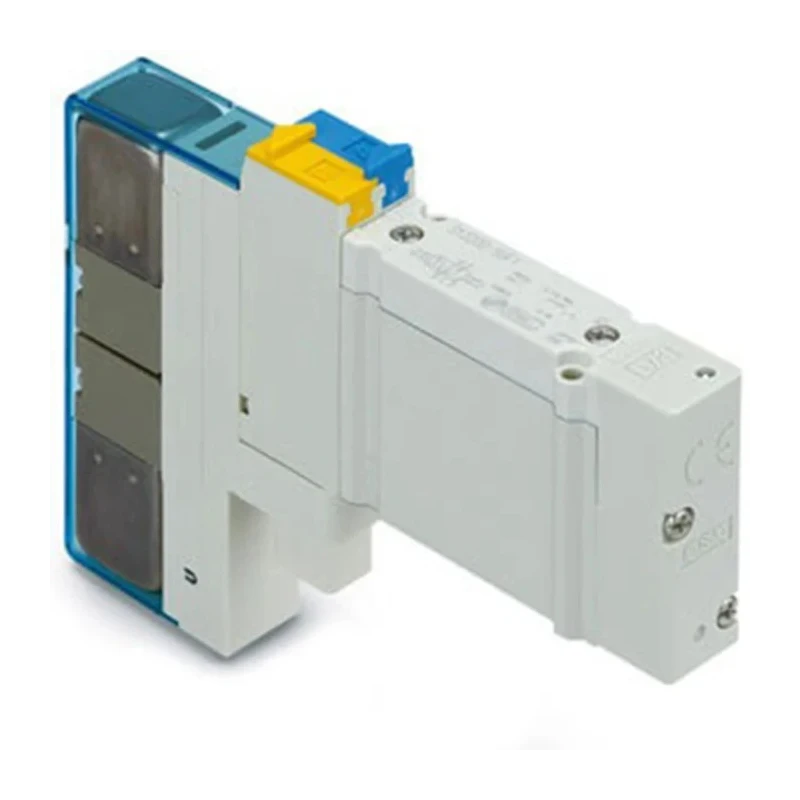

SMC Pneumatic Solenoid Valve 5 Port Base Mount Die Cast Zinc Body 24V SY3000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	7 bar
Model	SY3000
Width	10mm
Mount Type	Base
Series	SY3000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Minimum Pilot Pressure	2.5bar
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

The valve has a 1/8 inch female port size suited for pneumatic applications.
Operates at 24 volts DC with a solenoid actuation type for precise control.
Design includes pilot exhaust and dust proof enclosure for reliable operation.
Supports maximum operating pressure up to 7 bar and temperatures from -10°C to 50°C.
Features slide locking manual override and LED indicator light for functionality and operability.
Constructed with die cast zinc body material and uses rubber seals for durability.
Mount type is base mount which allows individual or manifold mounting.
Consumes low solenoid power at 0.35W, offering energy saving benefits.

Product Description

SMC SY3101K-5U1-NA Pneumatic Solenoid Valve from the SY3000 series is a 5 port valve designed for industrial pneumatic applications operating at 24V DC power. It supports a maximum operating pressure of 7 bar and can operate in temperatures ranging from -10°C to 50°C. The valve features a base mount type with a die cast zinc body and rubber seals ensuring durability and reliable performance.

This valve supports a pilot exhaust and includes a dust proof enclosure, improving its operational lifespan and reducing maintenance requirements. The compact design allows for use either individually or as part of a manifold system, providing flexibility in various industrial systems.

Energy efficiency is a key benefit with low solenoid power consumption at 0.35W and an LED indicator for improved operability. The SY3101K-5U1-NA model includes a slide locking manual override enhancing functional control for operators.

Typical industrial applications include pneumatic automation, fluid handling systems, manufacturing process controls, and HVAC pneumatic controls, where reliable and precise valve actuation is essential.

The valve features a 1/8 inch female port size supporting pneumatic connections. Solenoid actuation ensures fast and accurate valve operation. Base mount configuration suitable for manifold or individual installation. Die cast zinc body and rubber seal materials ensure durability under industrial conditions.

Maximum operating pressure rating of 7 bar for medium-pressure applications. Operating temperature range from -10°C to 50°C for diverse environmental conditions. Low power consumption at 0.35W reduces energy costs and heat generation.

Incorporates a slide locking manual override for safety and easy maintenance. LED indicator for operational status enhances user feedback and maintenance scheduling. Manufactured in Japan, complying with RoHS standards for environmental safety.

Explore EnvMart's extensive catalog of pneumatic valves and solenoid valves to find complementary components and enhance your industrial applications.

Explore more products in our Pneumatic Solenoid Valves category.
