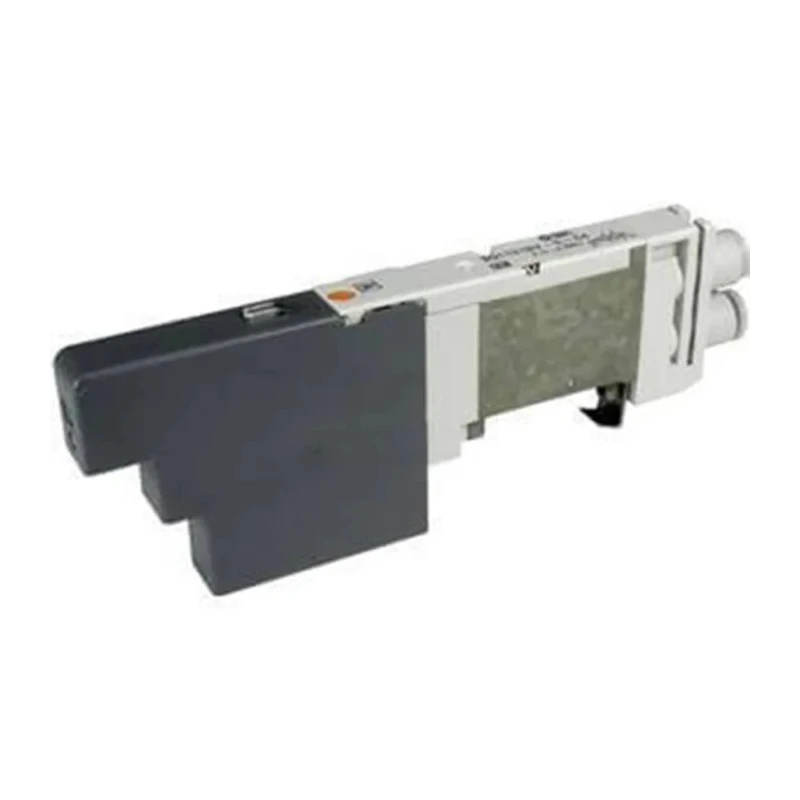

SMC Pneumatic Solenoid Valve 5 Port One-Touch Fitting 4 mm Rubber Seal DIN Rail Mount 24V SQ1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5 Port One-Touch Fitting 4 mm Rubber Seal DIN Rail Mount 24V SQ1000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	7 bar
Model	SQ1000
Mount Type	DIN Rail
Series	SQ1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	One-Touch Fitting 4 mm
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Electrical Connection Type	D-Sub Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.4W

Key Features

The valve supports high-speed switching and high-frequency operation for precision control.
It features a cassette style valve and manifold system for easy modular expansion on DIN rails.
With a maximum operating pressure of 7 bar, it is suitable for various industrial pneumatic applications.
The body is constructed from durable die-cast zinc ensuring robust performance and longevity.
Electrical connection is via D-Sub connector, supporting 0.4W power consumption.
Operating temperature range is from -10°C to 50°C, enabling versatility in environmental conditions.
The valve is compatible with one-touch fitting ports of 4 mm size and female port gender.
Complies with RoHS standards and is manufactured in Japan, assuring quality and environmental compliance.

Product Description

SMC SQ1231DN-51-C4-Q Pneumatic Solenoid Valve is part of the highly efficient SQ1000 series designed for industrial and mechanical applications requiring precise pneumatic control. Operating at 24V with a single solenoid actuation, this valve offers fast, reliable switching performance with low power consumption (0.4W). Its compact and low profile design ensures easy integration into complex machinery setups.

The valve body is made from die-cast zinc, offering excellent durability and resistance against mechanical wear. It features a cassette style valve and manifold setup, which simplifies station expansion or reduction on a DIN rail. The 5 port valve includes one-touch fitting ports sized at 4 mm with female port gender, ensuring easy and secure pneumatic connections.

Operating at a maximum pressure of 7 bar within a temperature range from -10°C up to 50°C, the valve works effectively in a variety of industrial environments. The electrical connection is provided via a D-Sub connector, facilitating straightforward wiring and maintenance. It conforms to RoHS standards, ensuring compliance with environmental and safety requirements.

Typical applications include pneumatic automation systems in manufacturing, packaging, processing plants, and other industrial use cases where high switching frequency, long service life, and precise response time are critical.

The valve supports high-speed and high-frequency switching performance. Designed with a cassette type valve and manifold for modular system expansion. Constructed with robust die-cast zinc body material for durability. Features one-touch 4 mm female ports for easy pneumatic connections.

Mountable on standard DIN rails for flexible assembly. Operates reliably from -10°C to 50°C ambient temperature. Designed for low power consumption and efficient solenoid actuation. Manufactured in Japan to strict quality standards.

Meets RoHS certification requirements for environmental safety. Explore more Pneumatic Solenoid Valves and components at EnvMart for advanced industrial automation and fluid control solutions.
