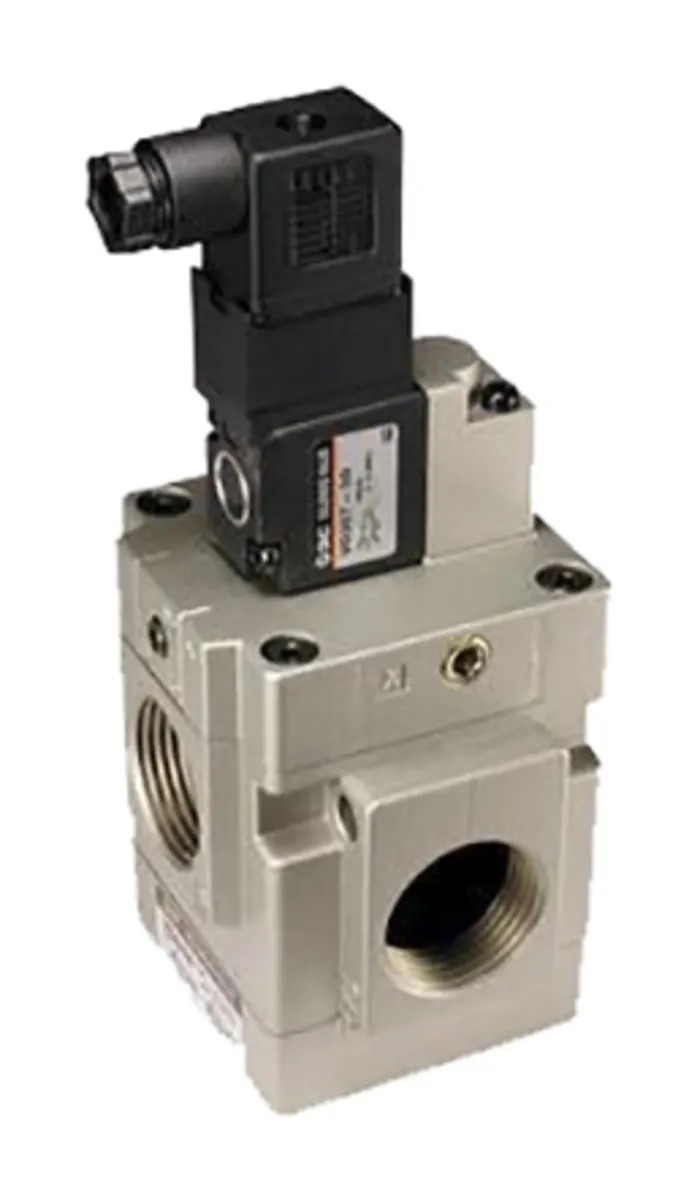

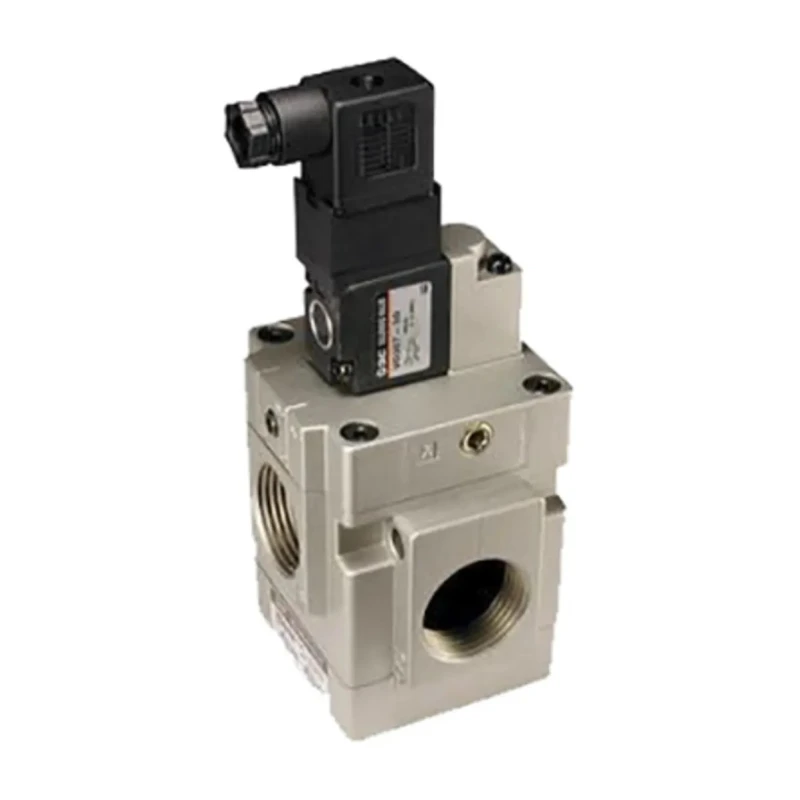

SMC Pneumatic Solenoid Valve 3 Port Threaded R Connection 24V DC 5W Aluminium Alloy VG342

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3 Port Threaded R Connection 24V DC 5W Aluminium Alloy VG342



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.9 Mpa
Height	87.4mm
Length	183mm
Model	VG342
Width	73mm
Mount Type	Base
Series	VG342
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	1/2 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Connection Thread Standard	R
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	5W

Key Features

Designed for vacuum and low pressure pneumatic systems.
Lightweight aluminium alloy body with rubber seal material.
Operates at maximum pressure of 0.9 MPa and pilot pressure range of 0.2 to 0.9 MPa.
Equipped with DIN electrical connector and base mounting type.
Temperature operating range from -10°C to 50°C.
Two-position single solenoid actuation providing reliable valve control.
Threaded R standard ports sized at 1/2 inch for versatile piping connections.
Manufactured in Japan, ensuring high quality and RoHS compliance.

Product Description

SMC VG342-5DZ-04A-Q Pneumatic Solenoid Valve is a high-performance 3 port threaded valve engineered for vacuum and low pressure pneumatic applications. Featuring a robust aluminium alloy body with precision rubber seals, this valve operates efficiently at 24V DC voltage with a power consumption of 5W, ensuring energy-efficient actuation suitable for industrial environments.

This valve supports a maximum operating pressure of 0.9 MPa and a pilot pressure range from 0.2 to 0.9 MPa, enabling smooth and reliable valve shifts. The unit is mounted via a base type mount and includes a DIN electrical connector for secure and standardized connectivity.

With dimensions of 183 mm length, 73 mm width, and 87.4 mm height, the compact form factor allows easy installation in limited spaces. The operating temperature range from -10°C to +50°C makes it suited for various industrial conditions.

The VG342 series is designed as a two-position single solenoid pneumatic valve that provides dependable switching between normally closed or normally open states, accommodating diverse pneumatic system requirements.

Lightweight construction with aluminium alloy and rubber seals for durability and longevity. Threaded R standard ports sized at 1/2 inch for versatile piping connections. Maximum operating pressure of 0.9 MPa for reliable pneumatic control.

DIN connector ensuring secure and standardized electrical interfacing. Operating temperature range from -10°C to 50°C for broad environmental compatibility. Two-position actuation with single solenoid type for precise control.

Manufactured in Japan, ensuring high-quality standards and compliance with RoHS regulations.

This pneumatic solenoid valve finds applications across industrial automation, fluid power controls, manufacturing systems, and HVAC pneumatic controls where dependable and efficient valve performance is critical. Suitable for users requiring reliable pneumatic switching with compact and robust design.
