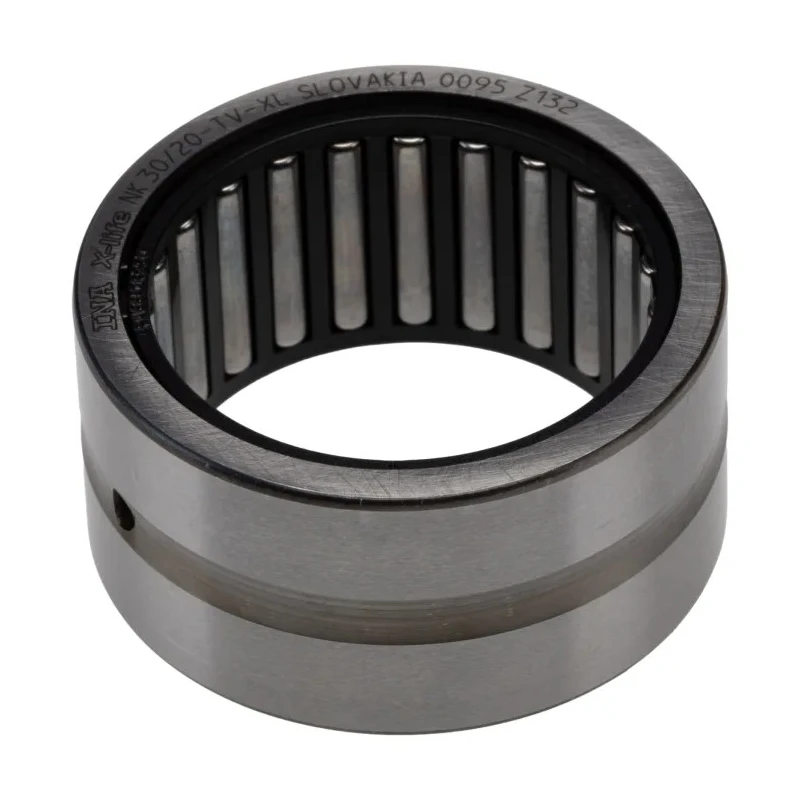

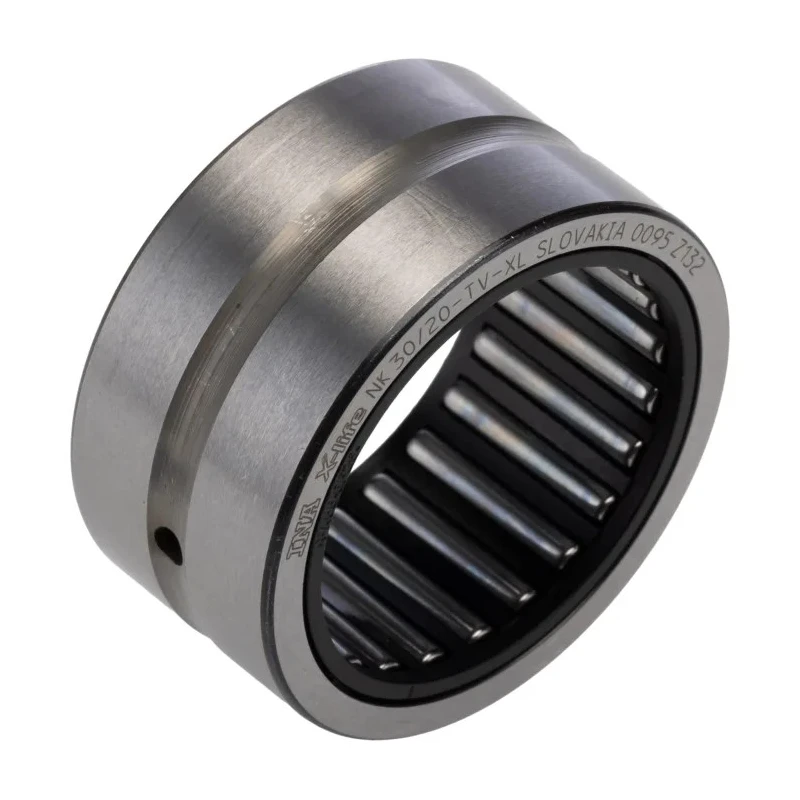

INA Needle Roller Bearing with 30 mm Inside Diameter, 20 mm Race Width, 40 mm Outside Diameter NK30/20-TV-XL

INA NK30/20-TV-XL needle roller bearing features a 30 mm inside diameter and 40 mm outside diameter with a 20 mm race width, designed for high radial force support in mechanical and industrial applications.

This needle bearing employs a plastic cage material and has an open end type, which facilitates efficient operation while enabling axial displacement of the shaft relative to the housing. The design supports very high radial loads and is ideal for use when drawn cup needle roller bearings' load capacity or accuracy is insufficient, yet a full cylindrical Roller Bearing is not yet required.

Its limiting speed of 14,800 rpm allows high-speed rotation, and the light series design ensures a compact, cost-effective, and economical bearing solution. The bearing successfully compensates for minor misalignments between shaft and housing, making it suitable for non-locating bearing roles.

This product is extensively used in industrial machinery, manufacturing equipment, automotive assemblies, and fluid power components. Its application in rotary bearings and housing units enhances machinery performance and reliability.

The bearing can support high to very high radial forces. It permits axial displacement of the shaft relative to the housing. Designed with a plastic cage that improves durability. Light series bearing offers compact and cost-effective installation.

Suitable for non-locating bearing applications. Compensates for misalignments between the shaft and housing. Open end type design facilitates operation and maintenance. Limiting speed up to 14,800 rpm for versatile industrial usage.

No specific standards or approvals noted for this bearing. Explore our bearings category to find more INA and similar quality products to meet your industrial requirements.
