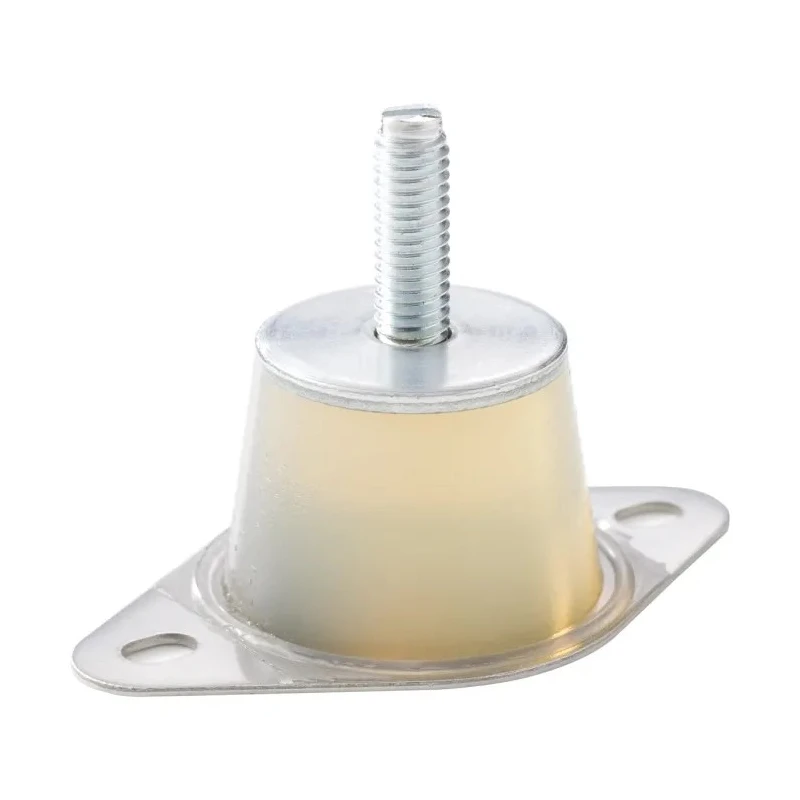

Taica Round M6 Anti-Vibration Mount Male Buffer Foot 150N Compression 10mm Bore 30mm OD 40mm H SF-5 SUS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taica |
| Material | Silicone Gel |
| Model | SF-5 SUS |
| Mount Type | Screw |
| Series | SF-5 SUS |
| Outside diameter | 30mm |
| Thread Size | M6 |
| Bore Diameter | 10mm |
| Overall height | 40mm |
| Static Load Rating | 60kg |
| Bore Length | 16mm |
| Anti Vibration Mount Type | Male Buffer Foot |
| Shore Hardness | 40 Shore A |
| Compression Load | 150N |
| Compression Deflection | 15.5mm |
| Foot Colour | Black |
| Foot Shape | Round |
| Foot Height | 10mm |
| Taica Cylindrical M10 Anti Vibration Mount, Male Buffer FootBrand | Taica |
Key Features
- The mount features a 10mm bore diameter and 30mm outside diameter for secure fitting.
- It has an overall height of 40mm with a 10mm foot height and 16mm bore length for compact installation.
- Constructed with silicone gel material and a sturdy stainless steel bottom plate for durability and outdoor suitability.
- Designed to absorb shock, dampen vibrations, and reduce noise in industrial and precision equipment.
- Suitable for vacuum pumps, measuring instruments, onboard computers, and other sensitive electronic equipment.
- Compression deflection is 15.5mm with a static load rating of 60kg for effective load handling.
- Foot shape is round with black foot color, providing a sleek and functional design.
- Series SF-5 SUS is a stainless steel variant ideal for outdoor and high-durability requirements.
Product Description
Taica SF-5 SUS round M6 anti-vibration mount male buffer foot with 150N compression is engineered for use in industrial, laboratory, construction, HVAC, manufacturing, and precision electronic applications. This mount effectively dampens vibrations and reduces noise to protect sensitive equipment such as vacuum pumps, measuring instruments, and on-board computers.
The mount has a 10mm bore diameter with a 30mm outside diameter and overall height of 40mm, including a 10mm foot height and 16mm bore length, ensuring compact and reliable mounting. The foot shape is round and colored black for aesthetic and functional purposes.
Constructed from silicone gel with a stainless steel bottom plate, the SF-5 SUS series provides excellent durability and is well-suited for outdoor environments. It supports a static load rating of 60kg and offers a compression load of 150N with a deflection of 15.5mm to absorb shocks efficiently.
This mount is designed exclusively for compression-only applications and features a strong bond between metal parts and silicon, enhancing performance and longevity. The top stud fixing with base mounting enables easy installation and secure placement.
Dampens vibrations to a lower frequency than rubber and neoprene mounts. Absorbs shock and reduces noise effectively. Strong metal-silicon bond ensures reliability. Stainless steel bottom plate offers corrosion resistance.
Ideal for sensitive and precision equipment requiring vibration isolation. Set contains 1 Pc Taica Round M6 Anti-Vibration Mount Male Buffer Foot SF-5 SUS. Select from the Industrial Machines & Instruments section for reliable machine mounts and anti-vibration components.
Explore more products in our Anti Vibration & Levelling Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this mount is 60kg, allowing it to effectively handle significant loads in various applications.
This model is constructed from silicone gel with a stainless steel bottom plate, providing durability and outdoor suitability.
The mount has a bore diameter of 10mm, an outside diameter of 30mm, and an overall height of 40mm, including a foot height of 10mm and a bore length of 16mm.
It has a compression load of 150N and a compression deflection of 15.5mm, designed to absorb shocks effectively.
This mount is suitable for use in industrial, laboratory, construction, HVAC, manufacturing, and precision electronic applications, particularly for sensitive equipment like vacuum pumps and measuring instruments.
The mount features a top stud fixing with base mounting, enabling easy installation and secure placement.
The silicone gel in this mount has a shore hardness rating of 40 Shore A, which contributes to its vibration dampening capabilities.
The foot shape of this mount is round, and it is colored black for both aesthetic and functional purposes.
Yes, this mount is exclusively designed for compression-only applications, ensuring effective performance in appropriate settings.
This product is manufactured in China, reflecting its origin in industrial components.
It is designed to absorb shock, dampen vibrations, and reduce noise, protecting sensitive equipment from potential damage.
This mount belongs to the SF-5 SUS series, which is known for its stainless steel variant suitable for high-durability requirements.
