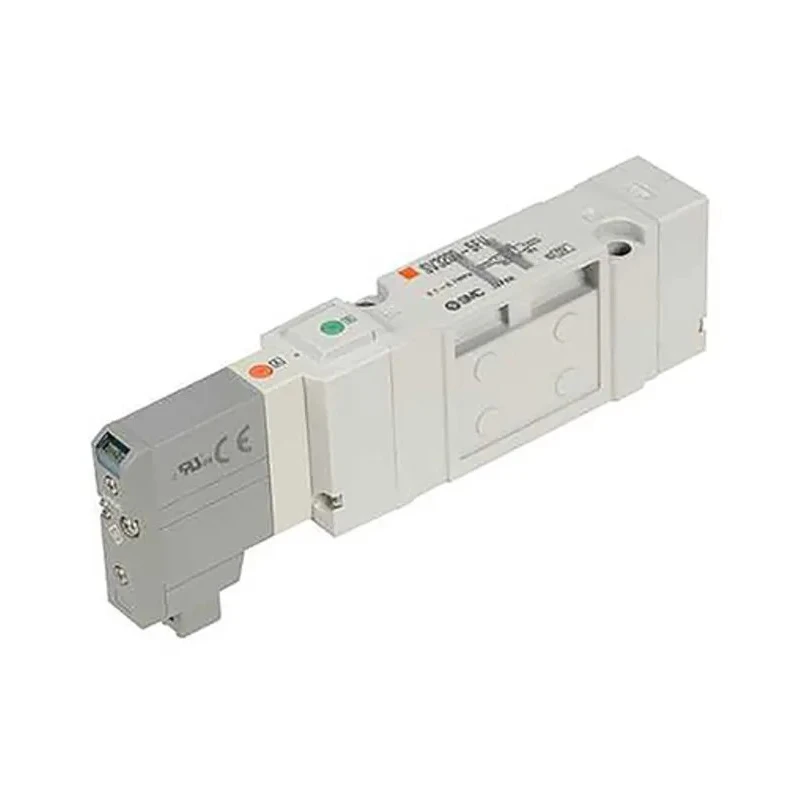

SMC Pneumatic Solenoid Valve , Solenoid /2000/3000/4000 Series, 24V DC, Die Cast Aluminium Body, 5 Ports, 0.7 MPa SV1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve , Solenoid /2000/3000/4000 Series, 24V DC, Die Cast Aluminium Body, 5 Ports, 0.7 MPa SV1000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SV1000
Enclosure	IP67 (based on IEC529)
Mount Type	Direct
Series	SV1000/2000/3000/4000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	-100kPa to 0.7MPa
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	1658L/min
Minimum Pilot Pressure	0.1MPa
Ambient and fluid temperature	-10 to +50 °C
Response time (at 0.5MPa)	18ms or less

Key Features

Features a direct mount type with a die cast aluminium body for durability.
Operates at a maximum pressure of 0.7 MPa with a maximum flow rate of 1658 L/min.
Equipped with rubber seals ensuring effective sealing performance.
Suitable for operating temperatures ranging from -10°C to 50°C.
The response time is 18 ms or less at 0.5 MPa for fast actuation.
Enclosure rated at IP67 based on IEC529 protects against dust and water ingress.
Utilizes a one-touch fitting port type for easy installation.
Operates with a coil rated voltage of 24 V DC for efficient power consumption.

Product Description

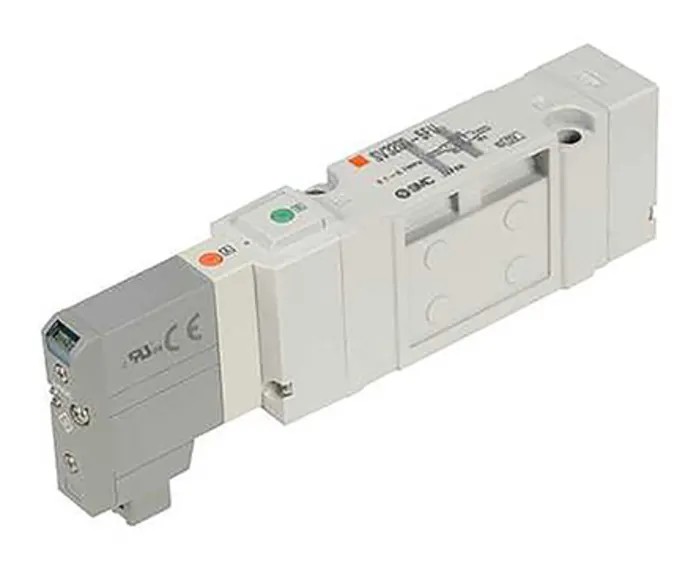

SMC SV3200-5FU Pneumatic Solenoid Valve is part of the versatile SV1000/2000/3000/4000 Series designed to simplify installation and maintenance through the use of multi-connector wiring instead of conventional lead wires. This direct mount valve features a robust die cast aluminium body combined with rubber seals for reliable operation in pneumatic fluid control systems.

The valve operates efficiently at 24 V DC with up to 5 ports and can handle a maximum operating pressure of 0.7 MPa while delivering a maximum flow rate of 1658 L/min. It supports an operating temperature range of -10°C to +50°C and a pilot pressure range between 0.1 MPa and 0.7 MPa. The response time at 0.5 MPa is 18 milliseconds or less, catering to applications requiring rapid actuation.

Its enclosure is rated IP67 (IEC529), protecting the valve from dust ingress and water exposure, making it suitable for industrial environments such as manufacturing, automation, instrumentation, and pneumatic system integration.

Featuring a one-touch fitting port type, this valve allows quick and secure connections. The SV Series supports air as the working fluid and covers an operating pressure range from -100 kPa to 0.7 MPa, providing flexibility in pneumatic circuit designs.

Manufactured in Japan, the product meets exacting quality standards with no additional approvals or certifications specified. This valve is ideal for industrial pneumatic controls, robotics, and fluid power systems in construction, manufacturing, and laboratory automation.

Features a direct mount type with a die cast aluminium body for durability. Operates at a maximum pressure of 0.7 MPa with a maximum flow rate of 1658 L/min. Equipped with rubber seals ensuring effective sealing performance.

Suitable for operating temperatures ranging from -10°C to 50°C. The response time is 18 ms or less at 0.5 MPa for fast actuation. Enclosure rated at IP67 based on IEC529 protects against dust and water ingress. Utilizes a one-touch fitting port type for easy installation.

Operates with a coil rated voltage of 24 V DC for efficient power consumption. Designed for air fluid applications covering a pressure range from -100 kPa to 0.7 MPa. Manufactured in Japan, ensuring high quality standards.
