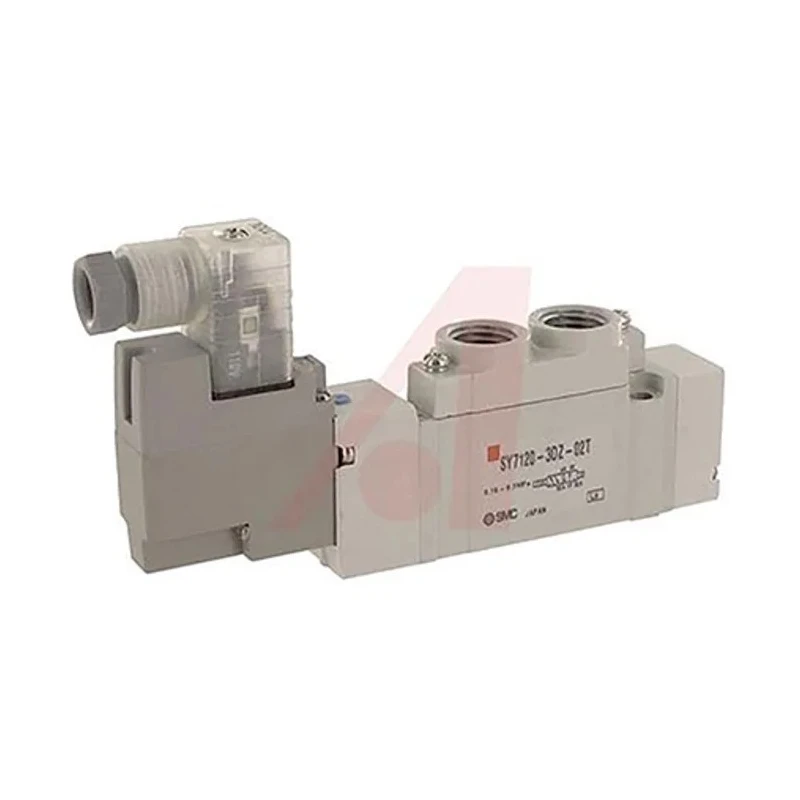

SMC Pneumatic Solenoid/Pilot-Operated Control Valve, 5-Port One-Touch Fitting, NPTF 1/4, 110V AC, Die Cast Aluminium SY7000

The SMC SY7000 Pneumatic Solenoid/Pilot-Operated Control Valve is engineered for high-performance applications requiring precise control of pneumatic flows. This 5-port valve features a one-touch fitting port type with NPTF 1/4 thread size, facilitating quick and secure connections in complex pneumatic systems.

Manufactured with a robust die cast aluminium body, the valve ensures superior durability and resistance to wear in demanding industrial environments. The halogenated nitrile rubber seal material enhances chemical resistance, contributing to longer service life.

Operating at 110V AC voltage, the SY7000 series valve supports a maximum operating pressure of 0.7 Mpa and delivers an exceptional maximum flow rate of 2527 L/min. The valve is designed to operate efficiently within a temperature range of -10°C to 50°C, accommodating various industrial conditions.

This model incorporates a power-saving circuit that reduces energy consumption, making it environmentally efficient and cost-effective. The valve cover is reinforced with stainless steel, providing additional strength and protection against mechanical impact.

Its compact design, measuring 120mm in height and 66mm in width, allows for installation in space-constrained settings. The valve is mountable via base and body ported methods, offering flexible integration into existing pneumatic systems.

The valve function includes exhaust, pressure center, double acting, single action, and closed options, making it suitable for complex pneumatic control applications. Durable die cast aluminium body construction. Halogenated nitrile rubber seals for chemical resistance.

Power-saving circuit to reduce energy consumption. Stainless steel reinforced valve cover for increased durability. Compact size enables flexible installation in tight spaces. High flow rate up to 2527 L/min for efficient pneumatic control.

Operates at 110V AC with maximum pressure of 0.7 Mpa. Wide operating temperature range of -10°C to 50°C. Multiple valve functions for versatile pneumatic system control. Mount types include base and body ported for installation versatility.

This pneumatic solenoid valve series from SMC is widely used in industrial automation, manufacturing, laboratory equipment, HVAC systems, and fluid power control applications. Its reliability and energy efficiency make it an optimal choice for enhancing pneumatic system performance.
