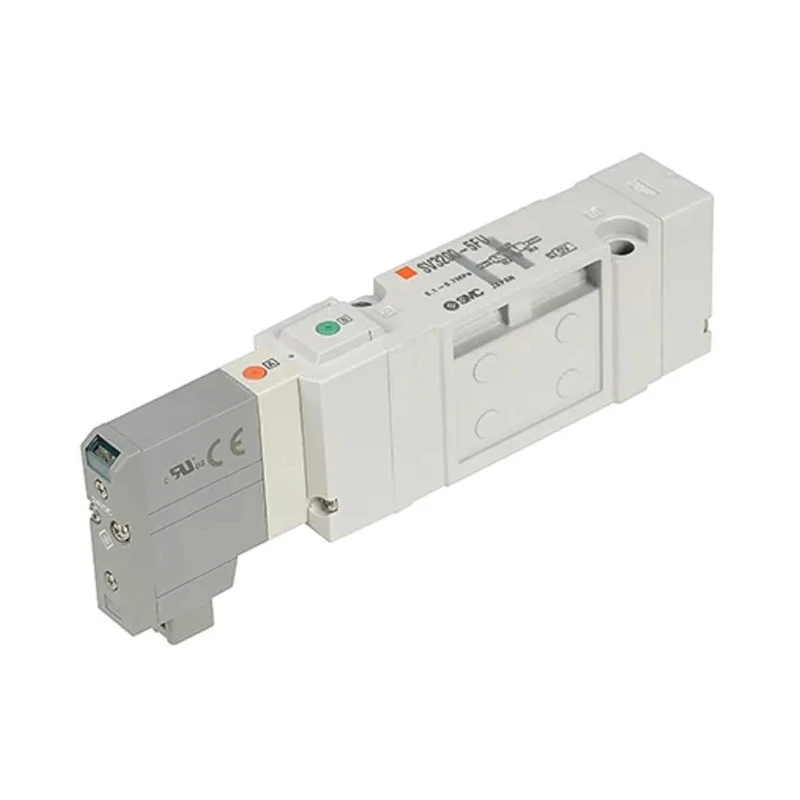

SMC Pneumatic Solenoid Valve 24V DC, 0.7 MPa Max Pressure, Die Cast Aluminium Body SV1000

SMC SV3100-5FU Pneumatic Solenoid Valve from the versatile SV1000/2000/3000/4000 Series is engineered for industrial pneumatic control systems requiring reliable performance and flexibility.

Constructed with a die cast aluminium body and rubber seals, this valve offers robust durability and an effective seal to prevent leaks during operation. It operates efficiently within a maximum operating pressure of 0.7 MPa and supports an operating temperature range from -10°C to +50°C, making it suitable for diverse environmental conditions.

The valve features a 5-port configuration with one-touch fittings for streamlined installation and maintenance. Its actuation is achieved through a solenoid type with a 24V DC coil voltage, enabling precise control. The valve's response time is notably fast at 18 ms or less under 0.5 MPa pressure, ensuring quick system responsiveness.

Valve functions include 2 Position Double Check and 2 Position Single Solenoid configurations, accommodating various pneumatic circuit requirements including 3 port and 4 position setups. The SV3100-5FU comes with a direct mount type, simplifying integration in manifold or cassette base systems.

Designed with an IP67 enclosure rating in accordance with IEC529 standards, it provides excellent protection against dust and water, enhancing reliability in industrial environments. The SV series supports multi-connector use to facilitate easy wiring, installation, and manifold customization up to 16 stations with double solenoids.

This solenoid valve is leveraged across industrial, manufacturing, pneumatic automation, and fluid control applications, suitable for controlling air as the operating fluid with an operating pressure range from -100 kPa to 0.7 MPa.

Die cast aluminium construction for strength and corrosion resistance. 5-port direct mount solenoid pneumatic valve with easy one-touch fitting. Wide temperature range of -10 to +50 °C for ambient and fluid conditions. IP67 rated enclosure protects against environmental ingress.

High flow rate of 1658 L/min supports efficient system operation. Fast response time provides reliable actuation under varying conditions. Applicable in industrial fluid power, pneumatic automation, construction, and manufacturing sectors.

Flexible mounting options with cassette and tie-rod base manifolds available. For more Pneumatic Solenoid Valves, explore within the Industrial Valves & Valve Fittings category on EnvMart.
