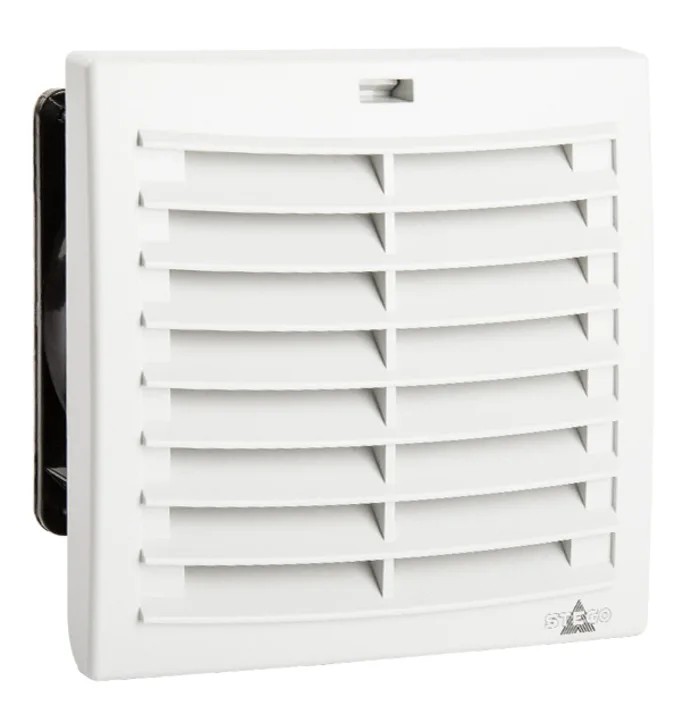

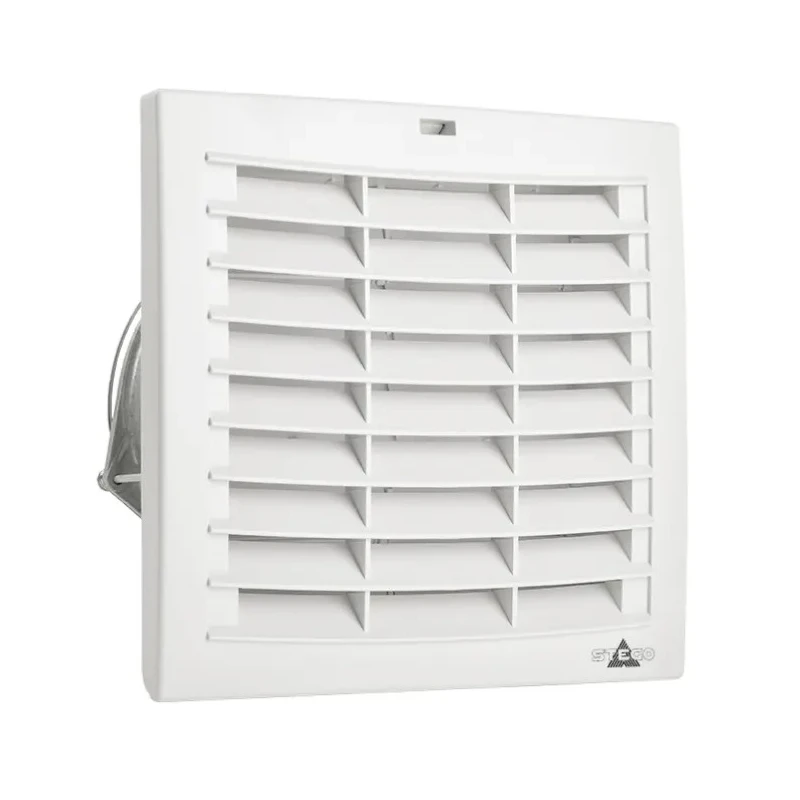

STEGO Filter Fan FPI/FPO 018 Series, 48V DC, 4.2W Power, 56 m³/h Filtered Air Flow, 67 m³/h Unimpeded Air Flow, , 124mm IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | STEGO |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 52dB |
| Series | FPI/FPO 018 |
| Configuration | Square |
| Input power | 4.2W |
| Installation Depth | 66mm |
| Input current | 88mA |
| Terminal type | Screw |
| Supply Voltage | 48V dc |
| Bearing Type | Ball |
| Standards/Approvals | VDE, UL, EAC, cURus, EN, CE, RoHS |
| AC or DC Operation | DC |
| Unimpeded Air Flow | 67m³/h |
| Filtered Air Flow | 56m³/h |
| Face Height | 124mm |
| Face Width | 124mm |
Key Features
- Operates at low input power of 4.2 watts for energy efficiency.
- Advanced new air-flap outlet technology enhances airflow performance.
- Square configuration with dimensions 124mm height by 124mm width.
- IP54 ingress protection rating for reliable environmental resistance.
- Equipped with ball bearing for long service life and quiet operation.
- Easy mounting with standard enclosure cut-out sizes for compatibility.
- Input current rated at 88mA for controlled electrical consumption.
- Supplied with screw-type terminals for secure electrical connections.
Product Description
STEGO IP54 Filter Fan FPI/FPO 018 Series is a high-performance DC-operated filter fan engineered for industrial and HVAC thermal management applications. Operating at 48 volts DC and consuming just 4.2 watts, this fan ensures efficient and effective airflow within electronic enclosures, control cabinets, and other machinery requiring filtered ventilation.

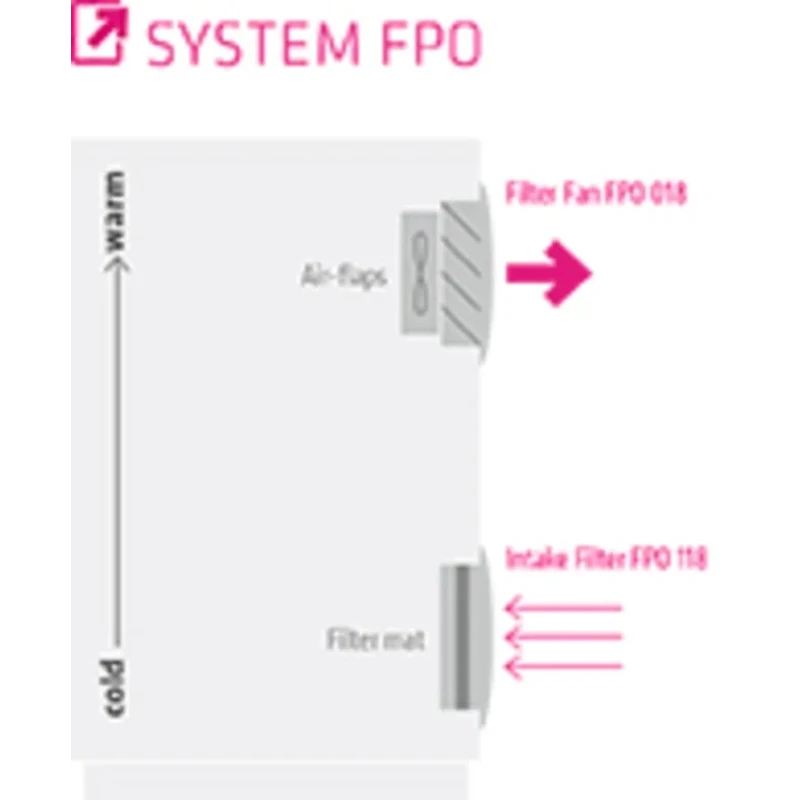

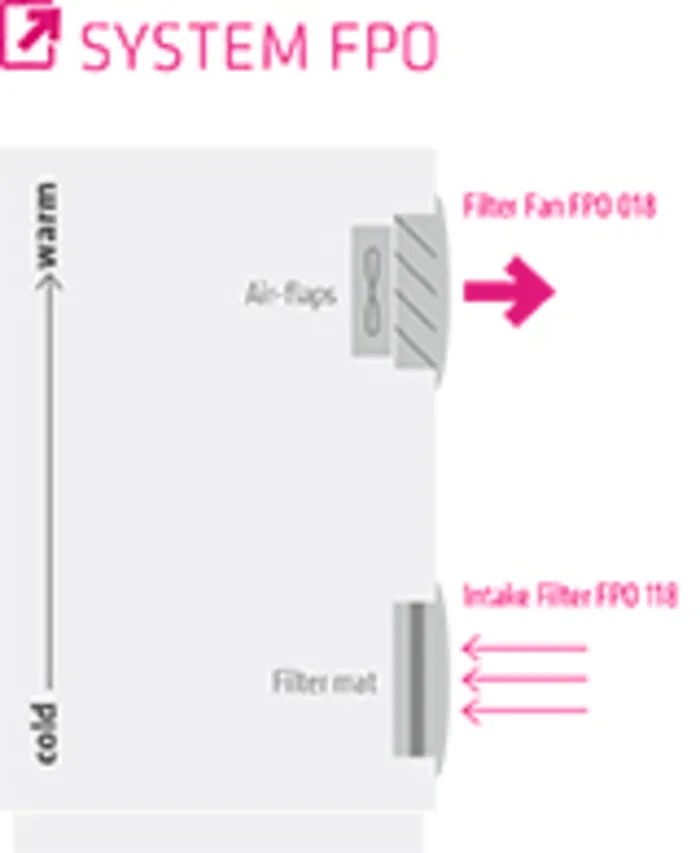

The filter fan features a new air-flap outlet technology that facilitates optimal airflow, providing 56 cubic meters per hour of filtered air while allowing up to 67 cubic meters per hour unimpeded air flow. Its square configuration measures 124 mm in both face height and width, with an installation depth of 66 mm, making it suitable for standard enclosure cut-outs. The IP54 rating offers protection against dust ingress and water splashes, ensuring reliable operation in challenging environments.
Ball bearing construction promotes low-noise, long-lasting performance, supported by an input current of 88 mA and screw terminal connections for easy installation. The product meets rigorous international standards, including VDE, UL, EAC, cURus, EN, CE, and RoHS compliances, exemplifying its quality and safety certification.
Operates efficiently at 48V DC with 4.2W power consumption. Compact 124 mm x 124 mm face with 66 mm installation depth. IP54 rated for dust and splash protection. Durable ball bearing for extended lifespan and quiet operation.
Includes one filter mat for clean air intake. New air-flap outlet technology enhances airflow distribution. Certified to multiple international standards ensuring product safety. Easy to mount using standard enclosure cut-out sizes.
Ideal for industrial, laboratory, HVAC, and electronic cabinet cooling needs. Manufactured in Germany ensuring high-quality engineering.
This STEGO filter fan is part of the reliable FPI/FPO 018 Series, designed to maintain optimal operating temperatures and prolong equipment lifespan by providing reliable ventilation and filtration. Browse additional Filter Fans and HVAC thermal management solutions on EnvMart for complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a low input power of 4.2 watts, ensuring energy efficiency during operation.
It provides a filtered air flow of 56 cubic meters per hour and allows for up to 67 cubic meters per hour of unimpeded air flow.
The fan has a square configuration with a face height and width of 124 mm, and an installation depth of 66 mm.
This filter fan operates at 48 volts DC and has an input current rating of 88 mA.
It is equipped with ball bearings, which contribute to its quiet operation and long service life.
The fan has an IP54 ingress protection rating, providing resistance against dust ingress and water splashes.
It complies with several international standards, including VDE, UL, EAC, cURus, EN, CE, and RoHS.
Yes, it is designed for easy mounting using standard enclosure cut-out sizes, making installation straightforward.
The noise level of this model is rated at 52 dB during operation.
It is ideal for use in industrial, laboratory, HVAC, and electronic cabinet cooling applications.
It is supplied with screw-type terminals for secure electrical connections.
This model is manufactured in Germany, ensuring high-quality engineering standards.
