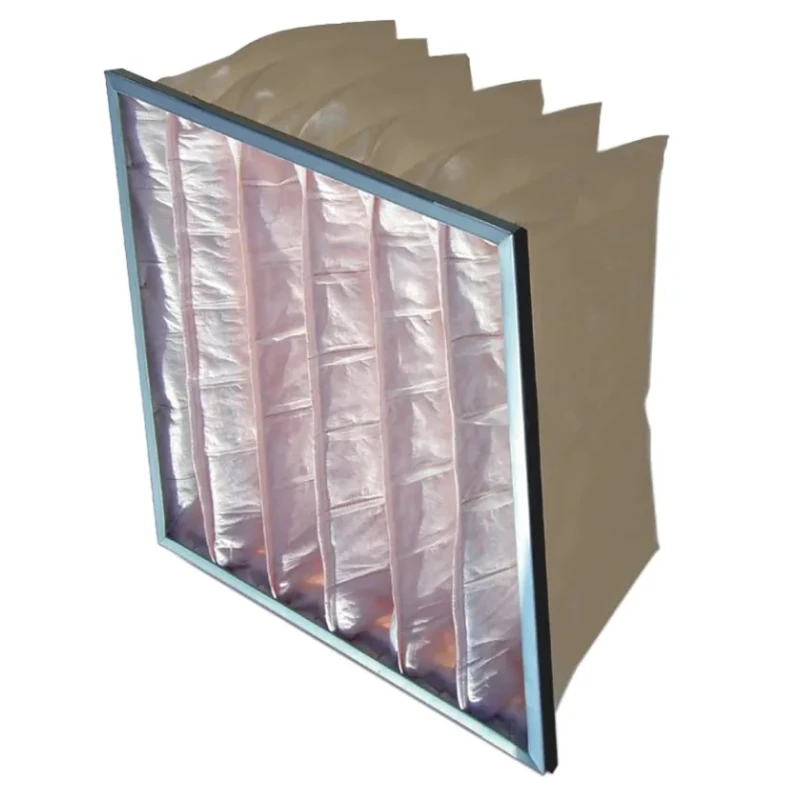

RS PRO Ultraseal Series Polypropylene Bag HVAC Air Filter, F5 Grade, 11 MERV Rating, Size 287 x 592 x 500 mm 827-9664
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| Model | 827-9664 |
| Filter Type | Bag |
| Case Material | Galvanised Steel |
| Series | Ultraseal |
| Initial Pressure Drop | 63Pa |
| Final pressure drop | 250Pa |
| Maximum Air Flow | 71.51m³/h |
| Number of Pockets | 3 |
| Standards/Approvals | BS EN, RoHS, ISO |
| Filter Grade | F5 |
| Actual Width | 287mm |
| Actual Height | 592mm |
| Actual Depth | 500mm |
| Media Material | Polypropylene |
| Nominal Height | 609.6mm |
| Nominal Depth | 508mm |
| Header Size | 20mm |
| Nominal Width | 304.8mm |
| Filter MERV Rating | 11 |
| Filter efficiency to BS EN 779 | 2012 is F5 (M5) |
| RS PRO Ultraseal Series Polypropylene Bag Filter, F5 Grade, 11 MERV Rating w | 287 mm h: 592 mm d: 500 mm |
| RS PRO PP Bag Filter, M5 Grade, 11 MERV Rating, 592 x 287 x 500mmBrand | RS PRO |
Key Features
- Constructed with 100% polypropylene synthetic media for durability and efficiency.
- Features a galvanised steel header frame with rolled safety edges for protection.
- Hydrophobic filter media allows effective operation in damp atmospheres.
- Designed with three ultrasonically welded pockets for leak-free performance.
- Extra built-in pre-filter layer extends filter life and maintains performance.
- Maximum air flow rate of 71.51 m³/h with an initial pressure drop of 63 Pa and final pressure drop of 250 Pa.
- Grey color and nominal size 304.8 mm x 609.6 mm x 508 mm with 20 mm header size.
Product Description
RS PRO 827-9664 Ultraseal Series Polypropylene Bag HVAC Air Filter provides efficient air filtration suitable for various industrial and commercial applications. Manufactured in the United Kingdom, this filter is ideal for environments such as administrative buildings, hospitals, offices, theatres, computer rooms, and spray booths, where medium efficiency filtration is required.
The filter media is composed of 100% polypropylene, which offers hydrophobic properties improving performance in humid or damp conditions. The galvanised steel header frame ensures structural integrity and features rolled safety edges to prevent damage during installation and handling.
Designed with three ultrasonically welded pockets, the filter achieves leak-free seams, delivering reliable filtration. An additional pre-filter layer enhances filter longevity, making it a cost-effective solution for continuous HVAC system operation.
Dimensionally, the filter measures 287 mm in width, 592 mm in height, and 500 mm in depth, with nominal dimensions slightly larger at 304.8 mm x 609.6 mm x 508 mm, suitable for most HVAC systems. It has an F5 grade filter media with an 11 MERV rating, ensuring fine particulate capture and maintaining indoor air quality.
Constructed with 100% polypropylene synthetic media for durability and efficiency. Galvanised steel header frame with rolled safety edges for safe installation. Hydrophobic media for superior performance in damp environments.
Ultrasonically welded three-pocket design prevents leaks. Extra pre-filter layer extends filter life. Dimensions: 287 mm (W) x 592 mm (H) x 500 mm (D). F5 Grade filter efficiency complying with BS EN 779:2012. Eurovent certified with a maximum air flow of 71.51 m³/h and pressure drops of 63 Pa (initial) and 250 Pa (final).
This RS PRO filter is suited for industrial, commercial, and HVAC applications requiring efficient air filtration with long-lasting performance. It contributes to improved indoor air quality in various sensitive indoor environments.
Explore comprehensive HVAC Air Filter options at EnvMart for maintenance and replacement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum air flow rate of this model is 71.51 m³/h.
This filter has an F5 grade and a MERV rating of 11, ensuring medium efficiency filtration.
The filter media is made of 100% polypropylene, and it features a galvanised steel header frame.
The hydrophobic filter media allows for effective operation in damp atmospheres, enhancing performance in such environments.
The initial pressure drop is 63 Pa, while the final pressure drop is 250 Pa.
This model is designed with three ultrasonically welded pockets, which help achieve leak-free performance.
The filter complies with BS EN 779:2012 and is also RoHS and ISO certified.
This air filter is suitable for various industrial and commercial applications, including administrative buildings, hospitals, offices, theatres, computer rooms, and spray booths.
This air filter is manufactured in the United Kingdom.
It includes an extra built-in pre-filter layer that enhances filter longevity and maintains performance.
