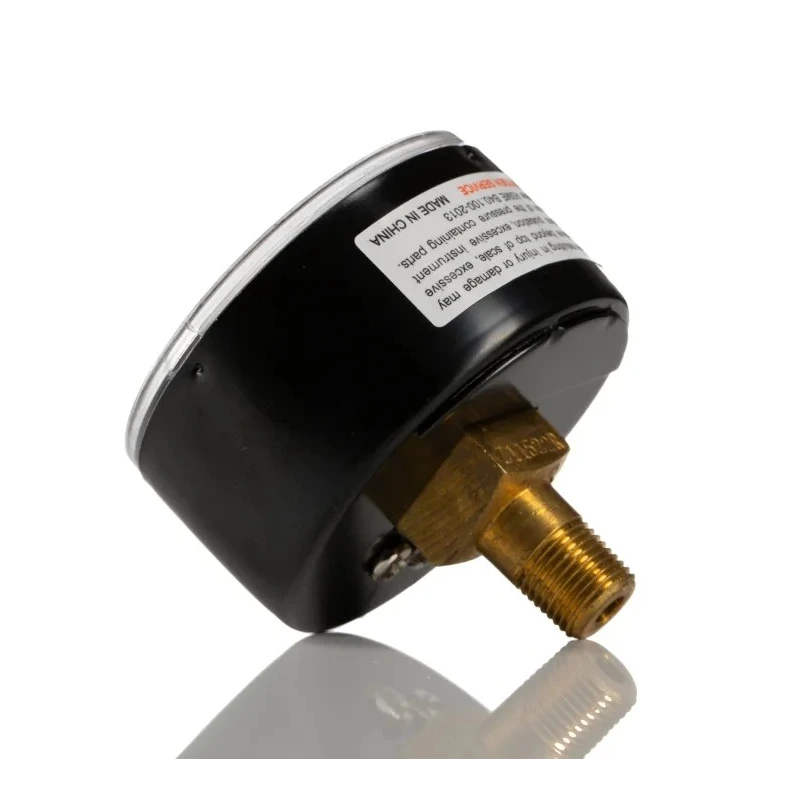

Norgren Analogue Pressure Gauge, 50 mm Dial, 6 bar Maximum Pressure, Back Entry Connection 18-015-012

Norgren 18-015-012 Analogue Pressure Gauge features a 50 mm diameter dial with a 6 bar maximum pressure range, designed for precision in pneumatic and hydraulic pressure monitoring.

This reliable instrument uses a Bourdon tube mechanism enclosed in a robust case made from steel, stainless steel, and ABS plastic, ensuring resistance to abrasion and impact in demanding industrial settings.

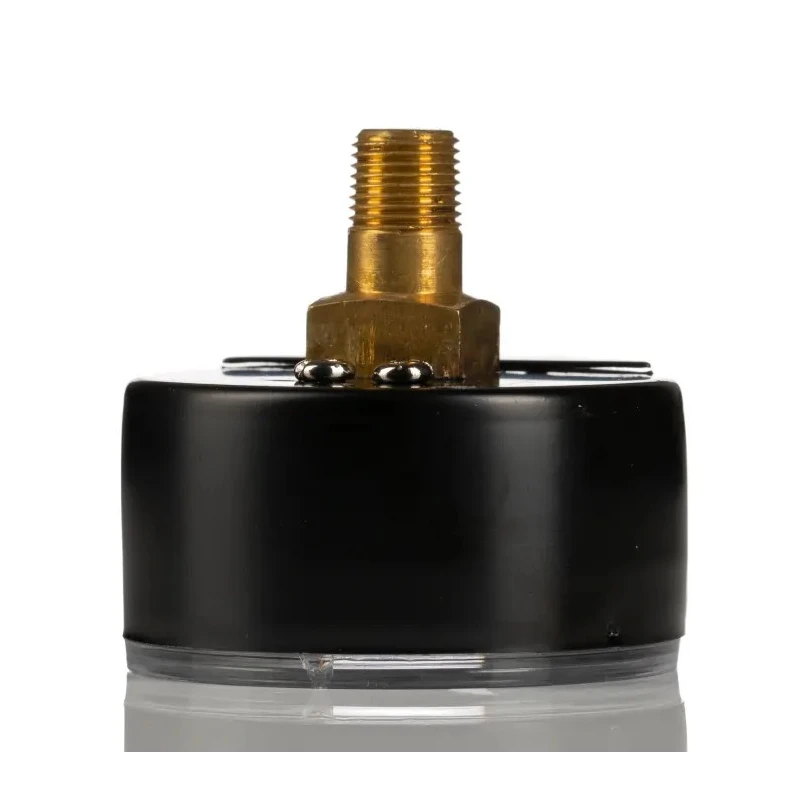

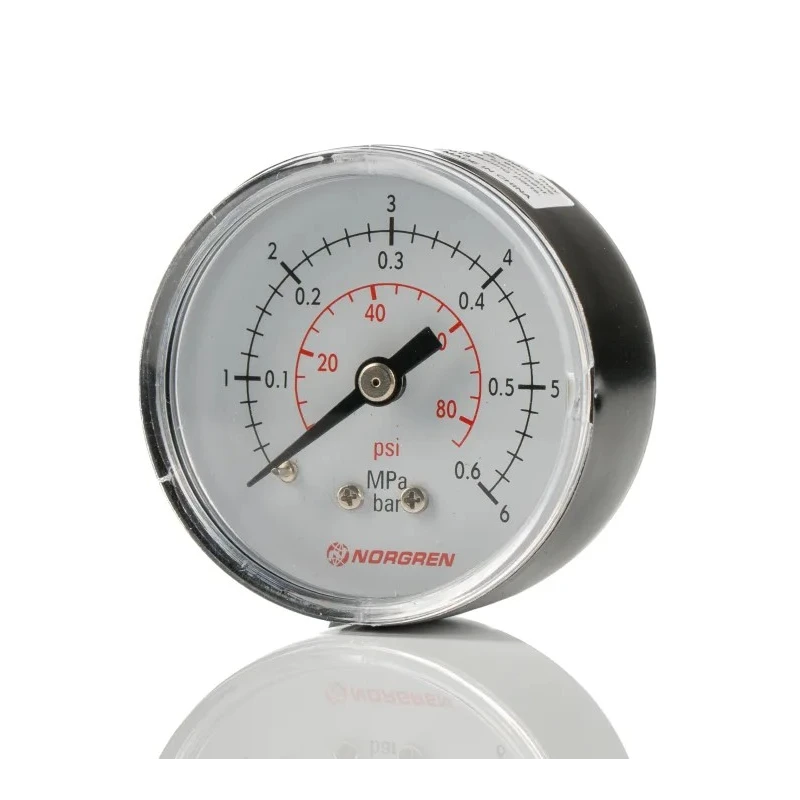

The gauge’s dial displays readings in both psi and bar units, facilitating versatility for various applications. The back entry brass connector with tapered R1/8 NPT threading secures an airtight connection without the need for additional sealants, enhancing installation reliability.

Operating temperature accommodates a wide range from -40°C to +65°C, suitable for compressed air systems, medical devices, and HVAC installations. Compliance with BS EN 837-1:1998 standards makes this gauge a trusted choice for industrial and laboratory environments.

The dial clearly shows measurements with ±2.5% accuracy. Durable case materials provide longevity and impact resistance. Wide application in compressors, medical, and HVAC systems. Robust brass connector ensures secure and leak-free installation.

Multiple connection thread types support diverse system compatibility. Works reliably within specified temperature ranges for safety. Dual-scale dial enhances readability and operational flexibility. This product is ideal for industrial, laboratory, construction, HVAC, manufacturing, and water treatment applications requiring accurate pressure measurement.
