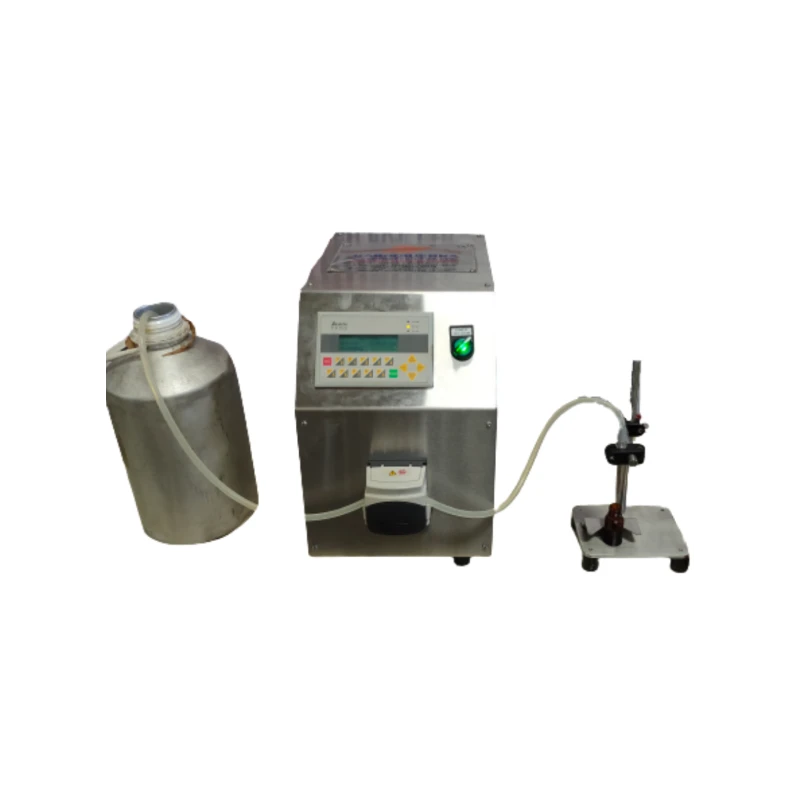

Semi Automatic Peristaltic Filling Machine Table Top HMPLSPRF-TT
Specifications
| Accuracy | 0.01 |
|---|---|
| Power Supply | Single Phase / 230 V AC / 50 Hz |
| Applications | Industrial |
| Speed | 1 to 150 RPM |
| Pressure | Up to 2.5 Kg / Cm |
| Flow Rate | 0.1 to 570 ml / Minute |
| Model | HMPLSPRF-TT |
| Tubing | 7.9 mm ID with 1.6 mm Wall Thickness |
| Filling Volume | 2 ml to 200 ml |
| Rotor | SS 304 |
| No. of Head | Single / Double |
| Set Volume | 0 to 9999 ml |
| Interval Time | 0 to 99.9 Seconds |
Key Features
- Prime with variable speed facility. Individual Prime facility for each Pump. Pump start with settable time in auto mode. Settable time facility to dispense different volume. Settable speed facility to dispense different viscosity product (important feature for foamy product). Adjustable filling nozzle with horizontal and vertical movement for different diameter and different Height products with adjustable product guide. Anti-shutoff valve to avoid dripping.
Product Description
Semi Automatic Peristaltic Filling Machine - Table Top Model HMPLSPRF-TT The Semi Automatic Peristaltic Filling Machine consists of the main structure of SS, filling pump, bottle & nozzle holding device, filling nozzle, foot switch, feather touch HMI control, motor & electrical panel.The Peristaltic Filling Machine is manufactured or developed accordance with GMP standards.The whole structure is made of SS 304 mat finish.Rigid vibration free construction for trouble free performance.Use of Pharma grade/food grade silicon tube for the flow of liquid.ON/OFF switch with built in indication for AC input.Microcontroller based control circuits.Precise PWM based DC Stepper Motor Drive.HMI which shows volume, RPM, calibration, fill timing & dispensing.Time, volume, ON/OFF, speed is settable from HMI.Auto Stop after the completion of Set Volume.Provision for external (Auto) ON control by means of a Foot switch or from the HMI.
