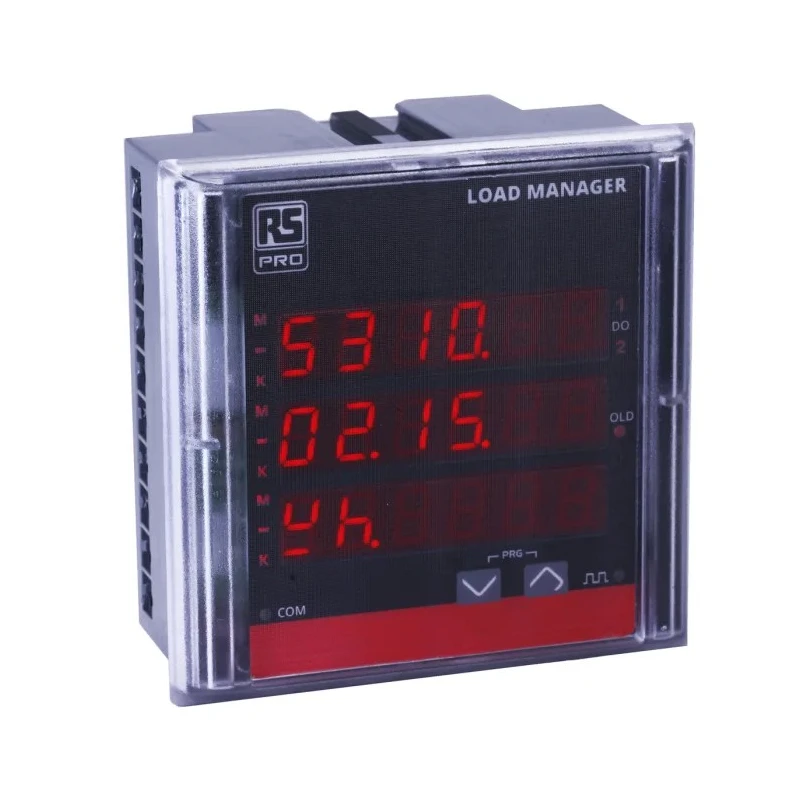

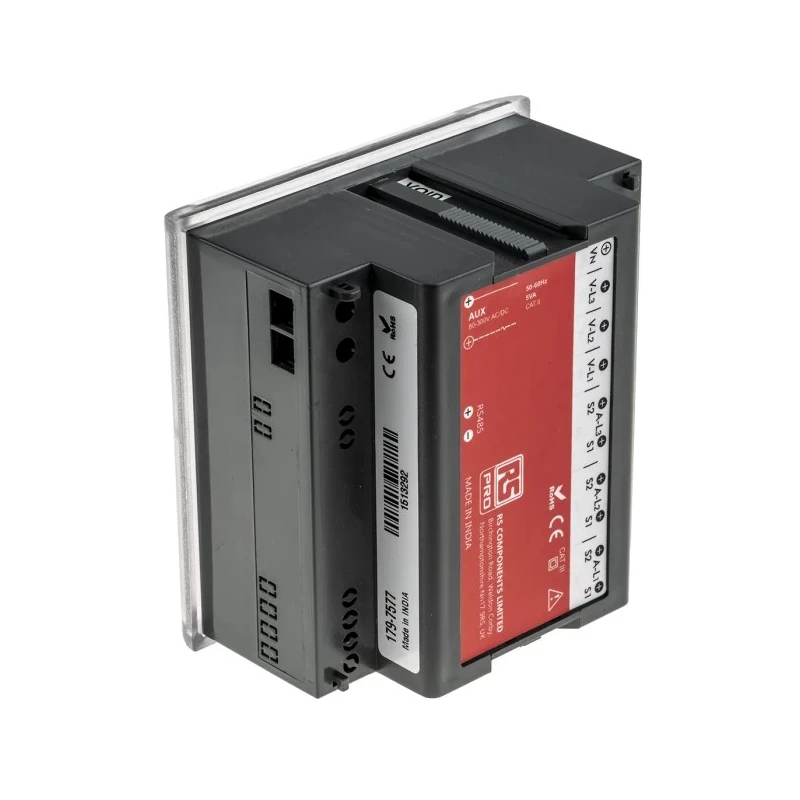

RS PRO 3 Phase Digital LED Energy Meter 3 Phase, 6 Digit Display, Class 1 Accuracy 179-7577
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Model | 179-7577 |
| Depth | 55mm |
| Number of inputs | 4 |
| Maximum Operating Temperature | 55°C |
| Meter Type | Digital |
| Number Of Digits | 6 |
| Meter Accuracy | Class 1 |
| Minimum Operating Temperature | -10°C |
| Digit height | 10mm |
| Number of Phases | 3 |
| Standards/Approvals | IEC |
| Cutout Height | 90mm |
| Cutout Width | 90mm |
| Maximum Measurement | 6 A |
Key Features
- The meter provides simultaneous sampling of voltage and current for precise power measurement.
- It includes a six-digit LED display with 10mm digit height for easy readability.
- Supports programmable configurations such as Star (Wye), Delta, or Single-Phase settings.
- The device measures multiple energy parameters including VAF, W, VA, PF, kWh, and Load hours.
- Designed for panel mounting with a panel cutout dimension of 90 x 90 mm and overall enclosure size of 96 x 96 x 55 mm.
- Operates reliably within a temperature range of -10°C to 55°C.
- Class 1 accuracy compliant with IEC 62053-21 standard.
- Maximum measurable current is 6 A with 4 measurement inputs and a pulse output feature.
Product Description
The RS PRO 179-7577 Digital LED Energy Meter is a high precision 3 phase measuring instrument designed for industrial, commercial, and residential energy monitoring applications. Featuring true RMS measurement technology, it ensures highly accurate and reliable power usage data collection across a wide range of voltages and currents.
This energy meter offers a bright LED display with six digits and auto-scaling functionality for clear visualization of measurement parameters such as volts, amps, power factor, and energy consumption in kilowatt-hours. The 10mm digit height enhances readability in diverse lighting conditions.
Engineered with versatile programmable configurations, the meter supports Star (Wye), Delta, and Single-Phase wiring arrangements, allowing flexible deployment in different electrical setup environments. It measures various parameters including voltage, current, VAF, watts, volt-amps, power factor, kWh energy, and load hours, providing comprehensive energy auditing capabilities.
The compact housing measures 96 x 96 x 55 mm and is intended for flush panel mounting with a panel cutout requirement of 90 x 90 mm, facilitating easy installation into control panels and switchboards. It operates reliably in environments with temperatures ranging from -10°C to 55°C, suitable for most indoor electrical installations.
This meter complies with IEC standards for Class 1 accuracy, making it suitable for precise energy consumption tracking in power plants, commercial buildings, industrial facilities, and residential complexes. Its pulse output and multiple inputs increase its adaptability to various energy monitoring systems.
The meter offers continuous and instantaneous readings with auto-scaling on each row for optimal data presentation. True RMS measurement ensures highly accurate power readings even with distorted waveforms. Panel mount design with standard dimensions supports convenient installation.
Wide operating temperature range enhances durability and reliability. Compliant with IEC 62053-21 Class 1 accuracy standards for trustworthy measurements.
This product is made in India and is ideal for applications in industrial automation, power quality monitoring, electrical load analysis, energy management systems, and utility billing.
Explore more Energy Meters and electrical measuring instruments in our dedicated category at EnvMart for advanced solutions tailored to your energy monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The energy meter has a Class 1 accuracy, compliant with IEC 62053-21 standards.
It measures multiple energy parameters including voltage, current, VAF, watts, volt-amps, power factor, kilowatt-hours (kWh), and load hours.
The maximum operating temperature for this energy meter is 55°C.
This energy meter features four measurement inputs.
The required panel cutout dimensions for installation are 90mm x 90mm.
The display has a digit height of 10mm, enhancing readability.
The minimum operating temperature for this energy meter is -10°C.
It uses an LED display for clear visualization of measurement parameters.
The overall dimensions of the energy meter are 96mm x 96mm x 55mm.
This model supports programmable configurations for Star (Wye), Delta, or Single-Phase settings.
This energy meter is manufactured in India.
The maximum measurable current is 6 A.
