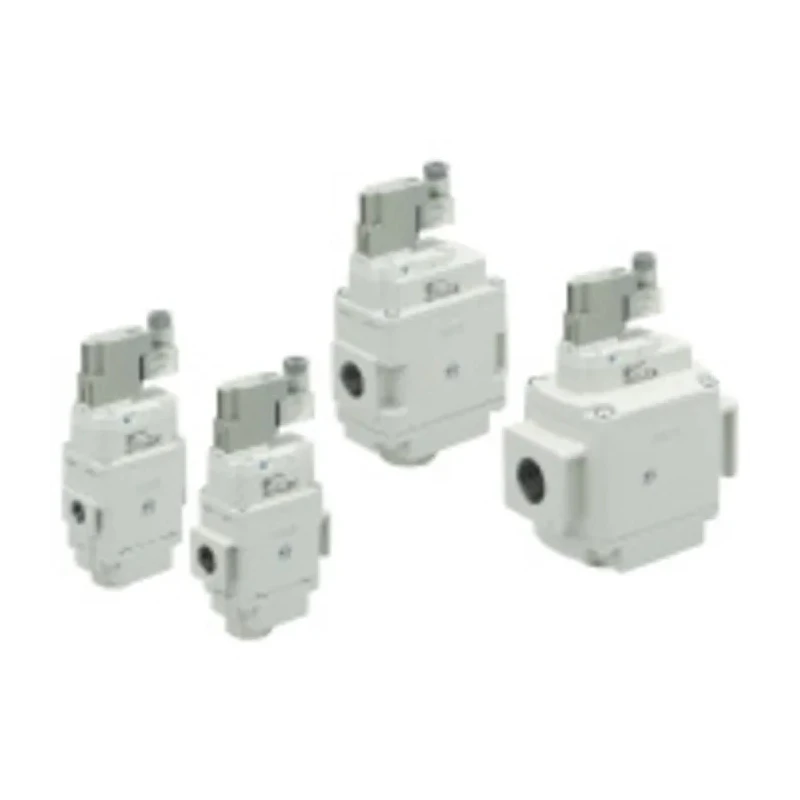

SMC Pneumatic Solenoid Start-Up Valve G Threaded Port 1 in Die Cast Aluminium Body 24V dc AV5000-F10-5DZB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Start-Up Valve G Threaded Port 1 in Die Cast Aluminium Body 24V dc AV5000-F10-5DZB-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Power Consumption	0.35 W
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	128mm
Length	178mm
Model	AV5000-F10-5DZB-A
Width	74mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Energy Saving	No air flow when the main valve is switched
Actuation Type	Start-Up Valve
Maximum Flow Rate	2478L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.45W
Improved flow rate characteristics	Up to 2.3 times C[dm3/(s·bar)]: 9.2

Key Features

Threaded port size of 1 inch with G connection thread standard.
Operates at a maximum pressure of 1 MPa and a maximum flow rate of 2478L/min.
Seal material made of durable Nitrile Rubber (NBR) for reliable sealing.
Designed for stand alone mount with 2 ports and single solenoid configuration.
Includes electrical connection via a DIN connector supporting 3 positions.
Maximum operating temperature of 50°C and minimum operating temperature of 0°C.
Energy-saving design with no air flow when the main valve is switched.
Country of origin is Japan ensuring high manufacturing standards.

Product Description

SMC AV5000-F10-5DZB-A Pneumatic Solenoid Start-Up Valve G Series with a 24V DC power supply is engineered for precise control in pneumatic systems. Its die cast aluminium body offers robustness and durability in demanding industrial, manufacturing, and fluid power environments. This valve supports a threaded female port sized at 1 inch with a G standard connection thread, suitable for integration into existing pneumatic pipelines.

Designed as a start-up valve, it gradually raises initial pressure in an air system and enables quick exhaust by cutting off air supply efficiently. It operates within a pressure range up to 1 MPa and handles a volumetric flow rate of 2478 liters per minute, making it suitable for applications requiring steady and controlled airflow. The valve is equipped with a single solenoid type and mounted as a stand-alone unit for easy installation and maintenance.

The valve features a nitrile rubber (NBR) seal for excellent sealing performance and is optimized for energy saving with zero air flow when the main valve is switched. Its electrical connection is via a reliable DIN connector with three positions for secure control operations. Operating temperature ranges from 0°C to 50°C, ensuring functionality in various industrial climates.

With compact dimensions of 178 mm length, 74 mm width, and 128 mm height, this valve fits well in constrained spaces without sacrificing performance. The integrated silencer reduces noise and facilitates compliance with workplace standards.

Threaded port type with 1 inch female port for pneumatic integration. Maximum operating pressure of 1 MPa and flow rate of 2478 L/min for efficient air system control. Durable die cast aluminium body and NBR seals ensure longevity.

Energy-saving operation with no air consumption on main valve switch-off. Compact dimensions for flexible installation. Electrical DIN connector supports stable and secure connections. Designed and manufactured in Japan to high-quality standards.

This valve is suited for industrial automation, manufacturing, pneumatic control systems, and fluid power applications where precise air pressure management is critical. Explore EnvMart's extensive category of Pneumatic Solenoid Valves for comprehensive system solutions.
