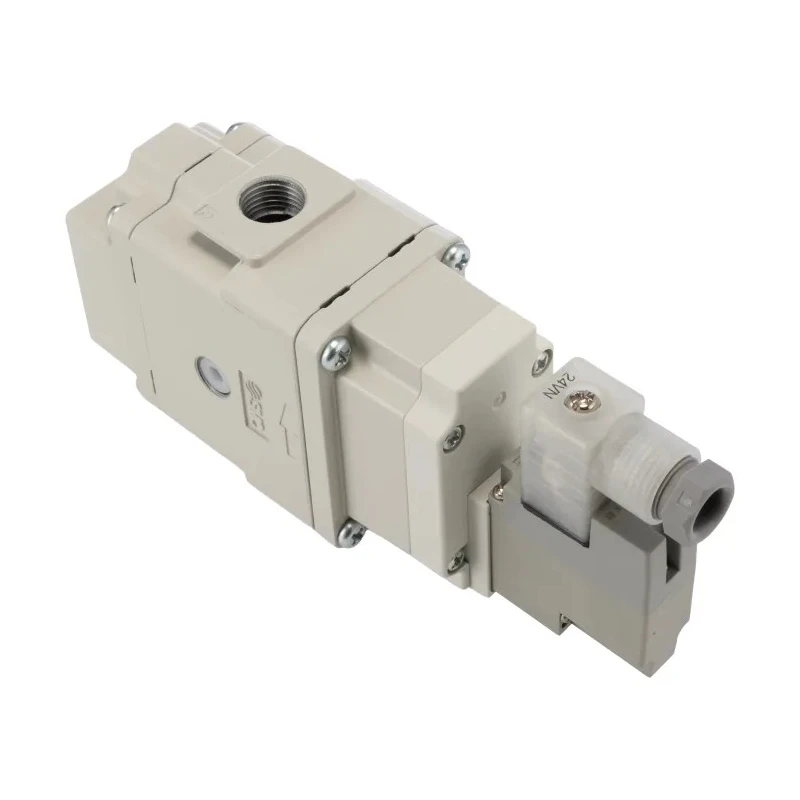

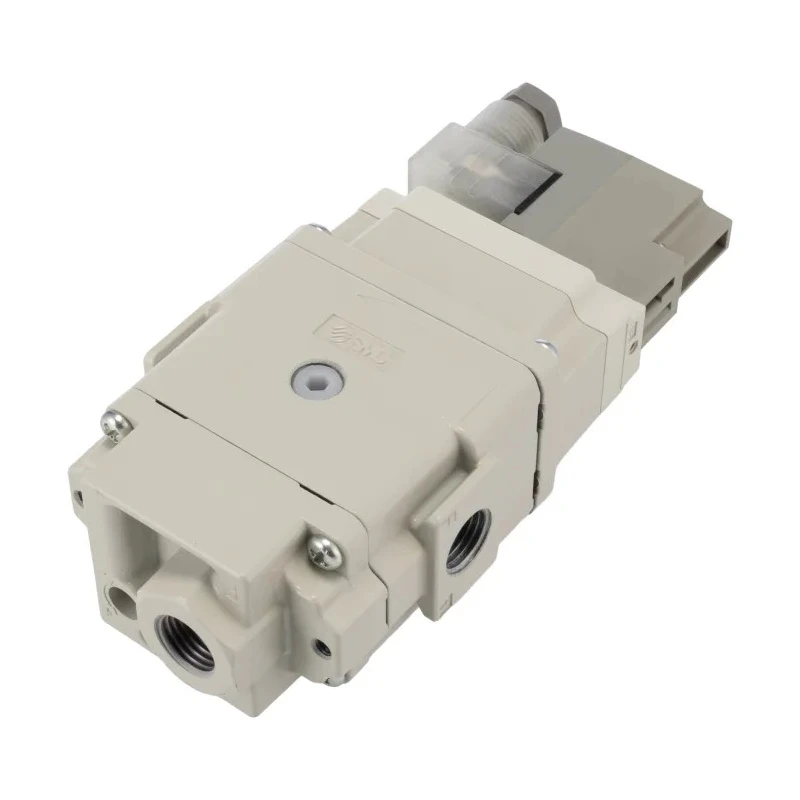

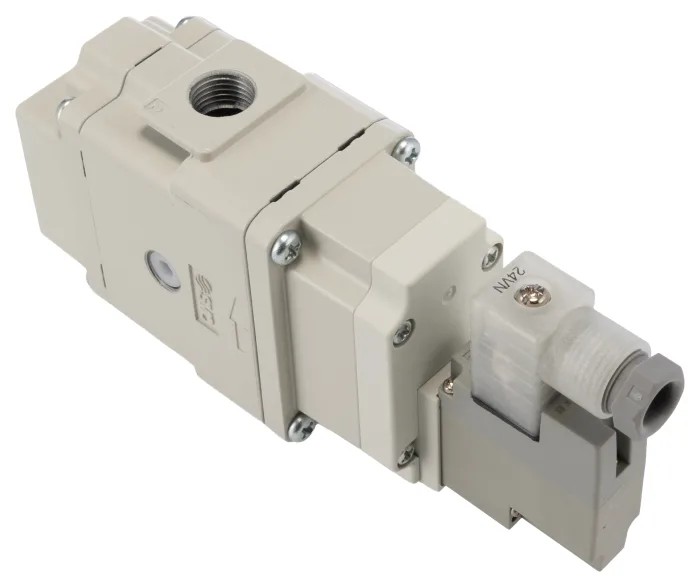

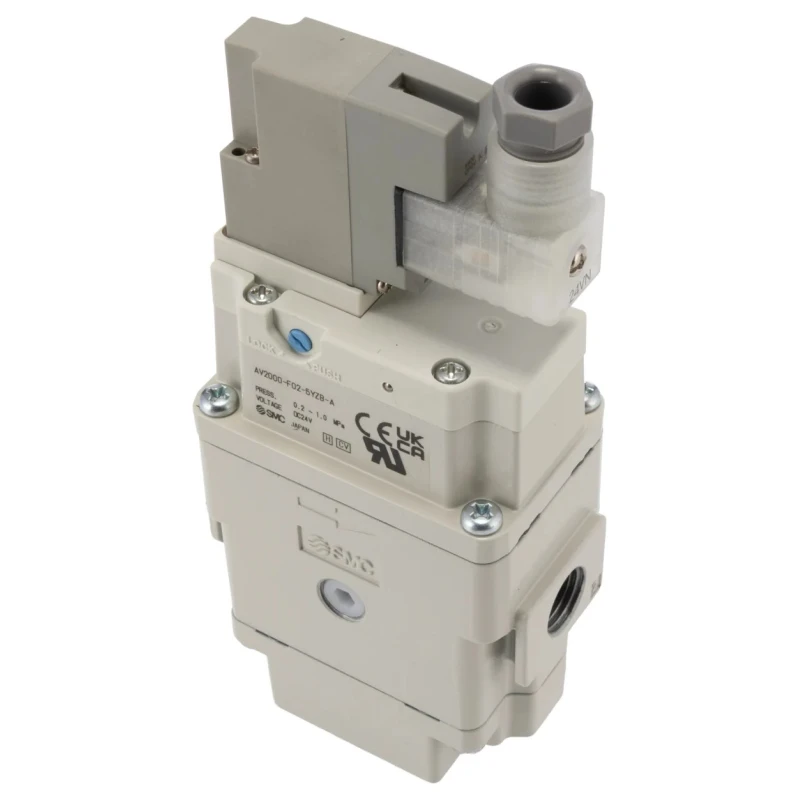

SMC Pneumatic Solenoid Start-Up Valve G AV Series 1/4 in Threaded Port, 24V dc, 0.35W, 2433 L/min Flow AV2000-F02-5YZB-A

SMC AV2000-F02-5YZB-A Pneumatic Solenoid Start-Up Valve G AV Series operates at 24V dc with a power consumption of 0.35W. This valve is designed to provide soft-start control by managing air flow in automated systems, featuring a three-position, two-port mechanism actuated by a single solenoid for efficient and reliable operation.

The valve's 1/4 inch G-threaded female ports facilitate straightforward piping connections for pneumatic input, output, and exhaust. The robust die cast aluminium body material ensures durability, while Nitrile Rubber (NBR) seals provide excellent compatibility with compressed air media.

This pneumatic solenoid valve accommodates operating pressures up to 1 MPa and flows up to 2433 L/min, enabling rapid system response. It maintains functionality within ambient and medium temperature ranges of 0°C to 50°C. The electrical connection uses a DIN connector with dust protection equivalent to IP65 when fitted, enhancing reliability in industrial environments.

Additional features include an integrated silencer that minimizes noise and improves installation speed. Its compact dimensions - 40mm width, 66mm height, and 147.5mm length - make it suitable for retrofit applications needing compact, low-power valves.

Applications for the AV2000-F02-5YZB-A valve include soft-start control in automated machinery, pneumatic speed regulation on conveyor systems, pilot supply for larger valves, and use within panels requiring 24V DIN connector interfaces. This valve is highly compatible with industrial, manufacturing, automation, and pneumatic control system sectors.

The valve features a 1/4 inch G-threaded female port for standard pneumatic integration. This single solenoid valve consumes only 0.35W, enabling low power consumption. Nitrile Rubber (NBR) seals ensure compatibility with standard compressed air media.

Designed for stand-alone mounting with a 3-position, 2-port configuration for precise control. Maximum operating pressure is rated at 1 MPa with a temperature range from 0°C to 50°C. The integrated DIN connector offers dust protection equivalent to IP65.

Body is constructed from durable die cast aluminium for robust industrial usage. The valve includes an integrated silencer to reduce noise during operation. Ideal for soft-start control in automated machinery and pneumatic speed control on conveyor systems.

Manufactured in Japan ensuring high quality and reliability. Explore the full range of Pneumatic Solenoid Valves and related components at EnvMart for reliable industrial automation solutions.
