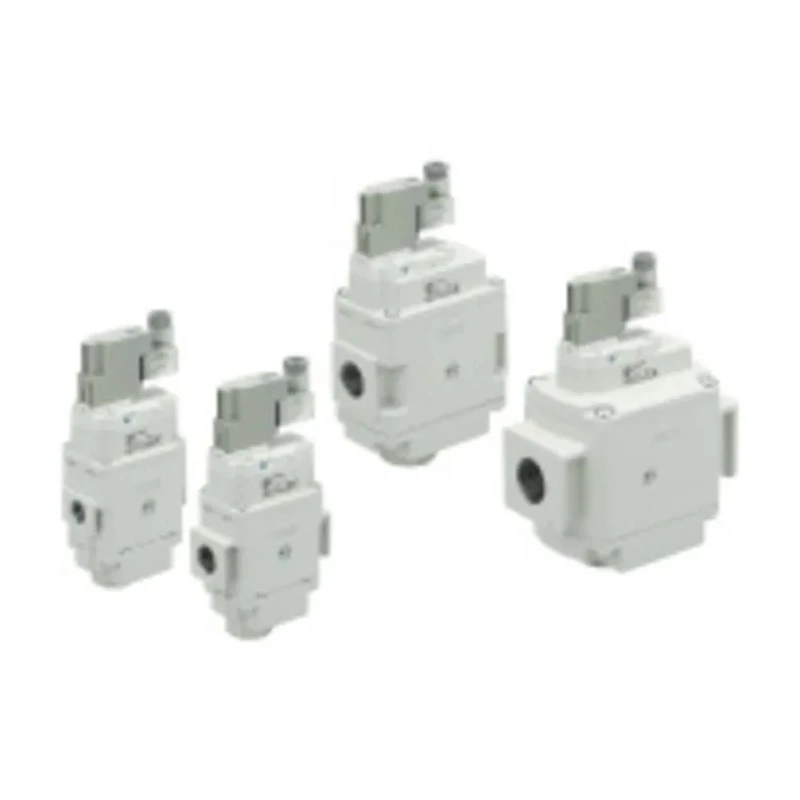

SMC Pneumatic Solenoid Start-Up Valve G AV Series 24V dc 3269L/min Flow AV3000-F03-5DB-A

SMC AV3000-F03-5DB-A Pneumatic Solenoid Valve - Start-Up Valve G AV Series operates at 24V dc with a maximum flow rate of 3269 L/min, designed for industrial automation air systems. This valve enables a controlled soft start, providing gradual compressed air supply to pneumatic equipment, reducing inrush air to downstream devices and improving energy efficiency.

The valve features a robust die-cast aluminium body combined with Nitrile Rubber (NBR) seals for reliable long-term sealing. It is a stand-alone, three-port, three-position start-up valve intended for applications requiring moderated initial airflow and staged pressurisation sequences, notably in pneumatic conveyors and machine centres.

Operation parameters include a maximum operating pressure of 1 MPa and a minimum pilot pressure of 0.2 MPa, with an ambient and media temperature operating range from 0°C to 50°C. The connections use female G 3/8 threaded ports for inlet, outlet, and exhaust, facilitating straightforward pipe installation.

Electrical control is facilitated via a DIN terminal type connector with a single solenoid consuming only 0.35W, reducing electrical load. The valve includes a push-locking slotted manual override allowing mechanical actuation if electrical control is unavailable, enhancing operational flexibility.

The valve is CE certified, ensuring compliance with relevant industrial standards, and is manufactured in Japan, assuring quality and reliability.

Applications span industrial automation lines for soft-starting pneumatic actuators, controlling air supply to pneumatic conveyors at start-up, and reducing air inrush to large pneumatic manifolds to prevent system shocks. It is well suited for energy-efficient and staged pressurisation requirements in complex pneumatic systems.

Designed for controlled soft start of pneumatic systems to protect downstream equipment. Die-cast aluminium body and NBR seals provide durable and reliable operation. Supports a maximum operating pressure of 1 MPa with a minimum pilot pressure of 0.2 MPa.

Three-port, three-position configuration allows efficient air management. Low power consumption solenoid at 0.35W minimizes electrical energy use. Includes manual override for operation during power outages. Electrical connection via DIN connector for ease of integration.

Wide operating temperature range of 0°C to 50°C to suit various environments. CE certified and made in Japan, ensuring high standards and durability. Ideal for automation, conveyors, and machine centre applications requiring staged pressurisation.
