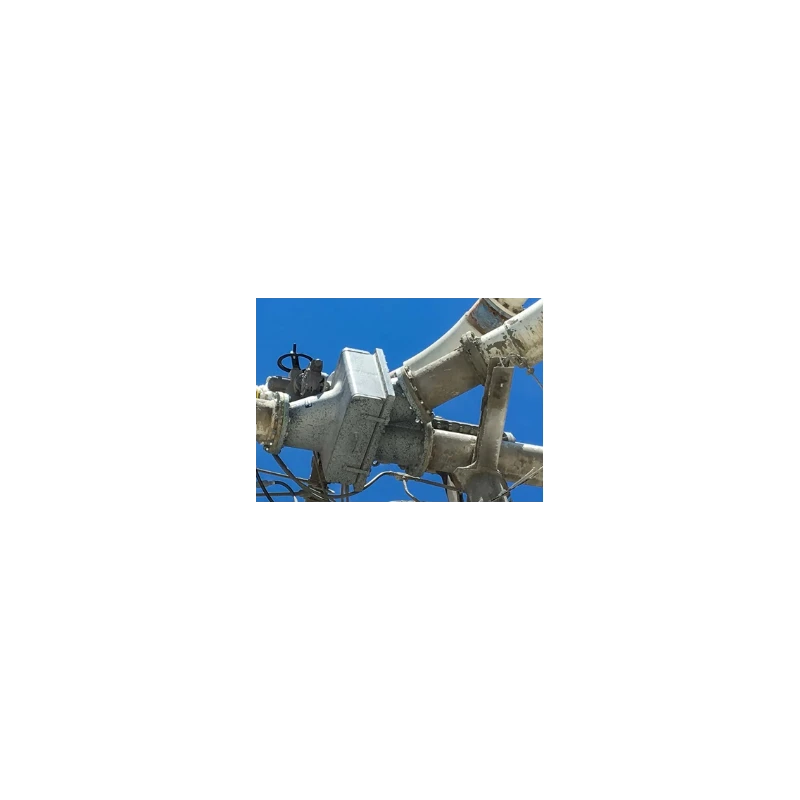

Two-way diverter valves for pneumatic conveying

Name: Two-way diverter valves for pneumatic conveying
Brand: FLSMIDTH
SKU: ABJUO
Price: 11.59 USD
Availability: InStock



SKU ABJUO Category Diverter Valve Brand FLSMIDTH Condition New

Specifications

Type	Equipment
Applications	Cement Mining More
Industry	Cement Mining More
Technology	Conveying Material handling
Product family	Pneumatic dry bulk handling systems

Key Features

The valve uses traditional actuators for easy connections to controls and wiring and are easily changed to the opposite hand without the need for customized parts. Three different actuators are available: precision electric motor, air cylinder or hand lever actuators with integral limit switches for dependable positioning of the disc with seats.
The SK V2 two-way valve is available in five sizes: 150mm (6), 200mm (8), 250mm (10), 300mm (12) and 350mm (14), and matches the I.d. of standard schedule 30 pipe. Flanges are available in ANSI or DIN designs, with 45° divert port as standard.

Product Description

Two-way diverter valves for pneumatic conveying Efficient and low-wearing SK V2 two-way diverter valves - reliable operation over a long service life - can be positioned horizontally or vertically to control the direction of material flow. Our Two-Way Diverter Valves have a straight passage and a branch pipe mounted at an angle of 25. One of the two outlets is always completely closed by a tightly-sealed slide plate. The slide plate is activated by a shaft and a lever and moves on an exchangeable wear protection plate. Switch-over is possible only when conveying operations have been stopped.

The housing is precision-machined durable cast iron construction. The internal mechanism works on the sliding disc and port principle. The replaceable and hardened one-piece seat cartridge with hardened disc are ground and lapped to maintain a positive seal at the closed port. Internal parts are readily accessible through a large hinged and bolted access port.
Easy Maintenance.
Easy to operate.
The length of the belt is customized.
Easy installation
High load bearing capacity
Low power consumption

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is available in five sizes: 150mm, 200mm, 250mm, 300mm, and 350mm, matching the internal diameter of standard schedule 30 pipe.

The valve operates using a tightly-sealed slide plate activated by a shaft and lever, and maintenance is facilitated by a large hinged and bolted access port for easy access to internal parts.

The housing is made from precision-machined durable cast iron, and it features a replaceable hardened one-piece seat cartridge with a hardened disc.

The valves utilize a conveying material handling technology, allowing for efficient and low-wearing operation.

Yes, the diverter valves can be positioned horizontally or vertically to control the direction of material flow.

The internal mechanism operates on the sliding disc and port principle, with one outlet completely closed by the slide plate during operation.

They are designed for pneumatic conveying applications, particularly in handling dry bulk materials.

Flanges are available in ANSI or DIN designs, with a standard 45° divert port.

The valve features a hardened disc that is ground and lapped to maintain a positive seal at the closed port.

Key features include easy installation, low power consumption, high load bearing capacity, and efficient operation with a long service life.
