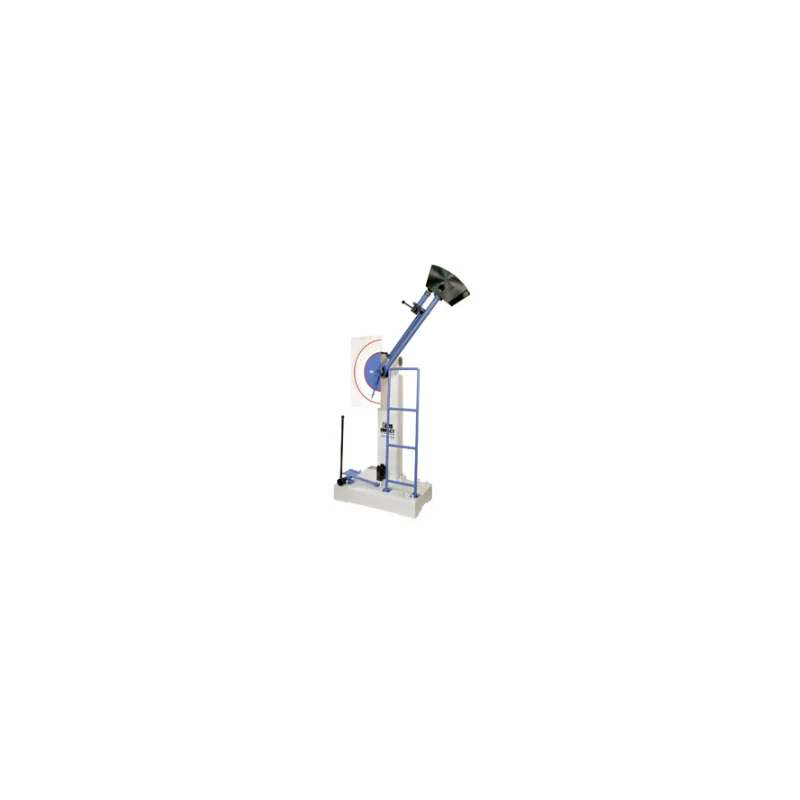

Impact Analog Testing Machine For Charpy and Impact Tension Test

Name: Impact Analog Testing Machine For Charpy and Impact Tension Test
Brand: ESPL
SKU: ABIPO
Price: 11.59 USD
Availability: InStock



SKU ABIPO Category Testing Machines Brand ESPL Condition New

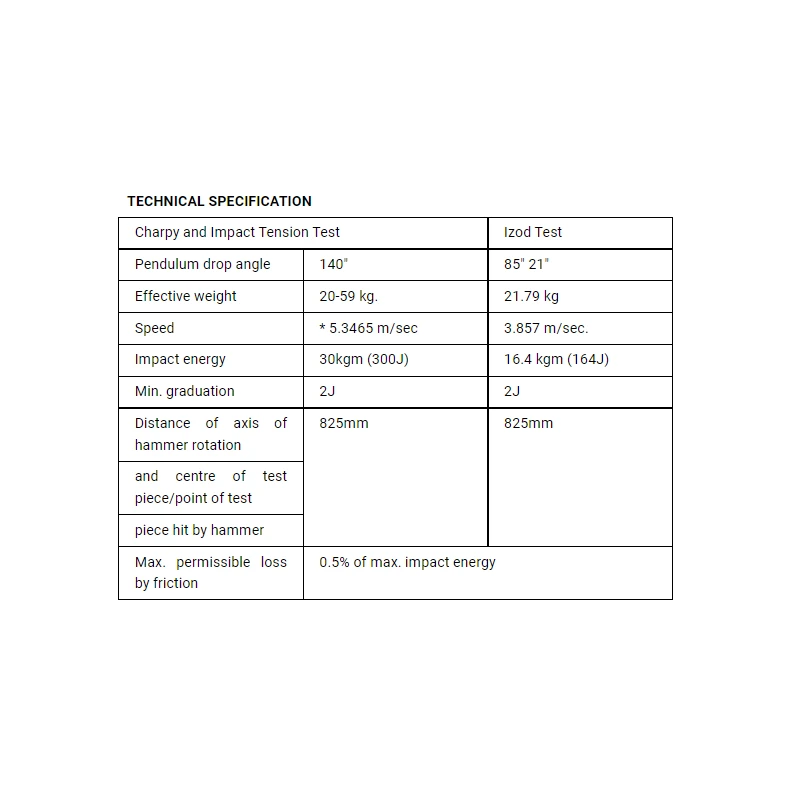

Specifications

Material	Mild Steel
Applications	Laboratory
Speed	5.3465 m/sec
Pendulum drop angle	140
Impact energy	30kgm (300J)
Effective Weight	20-59 kg.
Min. graduation	2J
Distance of axis of hammer rotation	825mm
Max. permissible loss by friction	0.5% of max. impact energy

Key Features

Control Panel : High speed electronic PLCs with program converter ,7 HD HMI Colorful display compatible to operate with ms windows based computer support with servo controlled drive motor connected with standard branded hydraulic accessories and system to develop load in the machine through hydraulic cylinder to loading frame. The Touch screen display would show results in a clear or easy to read format with data analysis.
Creation of database records with storage facilities and easy handling of database.
The system would have facility to printing of Test report with graph. Load V/s Displacement, Load V/s Time, Strain Graphs etc.. . Easy calibration process is provided .

Product Description

Impact Analog Testing Machine For Charpy and Impact Tension TestAnalog Izod / Charpy Impact Tester Manufacturer in Delhi, Analog Izod / Charpy Impact Tester Suppliers in Delhi, Analog Izod / Charpy Impact Tester in Delhi. The impact energy absorbed by the specimen during reputure in measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.

Machine body fabricated with well designed Sturdy steel structure for sustaining of impact robust load absorption during failure of samples. With hydraulic cylinder and easy moving crosshead with pre-fixed grip
For low capacity up to 20 ton Very fine noiseless and smooth gears mechanism would be provided and fitted in the loading frame.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum impact energy that this machine can measure is 30 kgm, which is equivalent to 300 Joules.

The machine body is fabricated from mild steel, designed to sustain robust load absorption during sample failure.

The speed of the pendulum is 5.3465 m/sec.

The minimum graduation for measurements on this machine is 2 Joules.

The effective weight range of this testing machine is between 20 to 59 kg.

This model is specifically designed for laboratory applications, particularly for Charpy and impact tension tests.

The distance of the axis of hammer rotation is 825 mm.

The pendulum drop angle for this impact testing machine is 140 degrees.

The maximum permissible loss by friction is 0.5% of the maximum impact energy.

The machine features a 7 HD HMI colorful display that shows results in a clear format, compatible with Windows-based computer support.

It includes facilities for creating database records, storing data, and printing test reports with graphs such as Load vs. Displacement and Strain Graphs.

An easy calibration process is provided to ensure accurate measurements during testing.
