RS PRO Die Cast Aluminium Keypad Lock 12V DC, 12 Keys, 20 User Codes 774-8162

RS PRO 774-8162 Die Cast Aluminium Keypad Lock operates at 12V DC and is engineered for advanced access control applications requiring programmable security options. The lock features die-cast aluminium keypad and keytop, ensuring durability and resistance to wear.

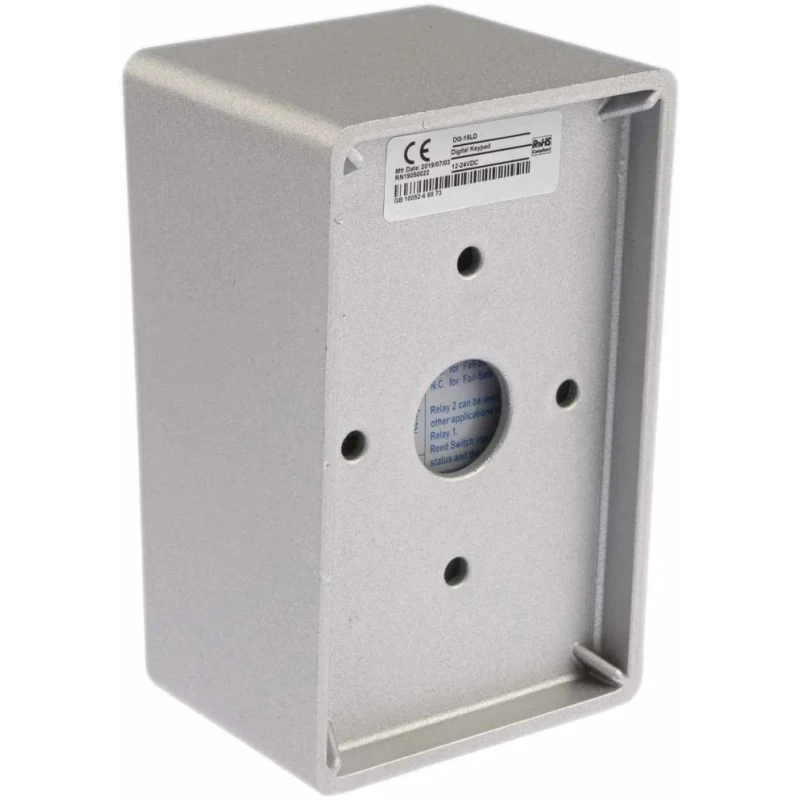

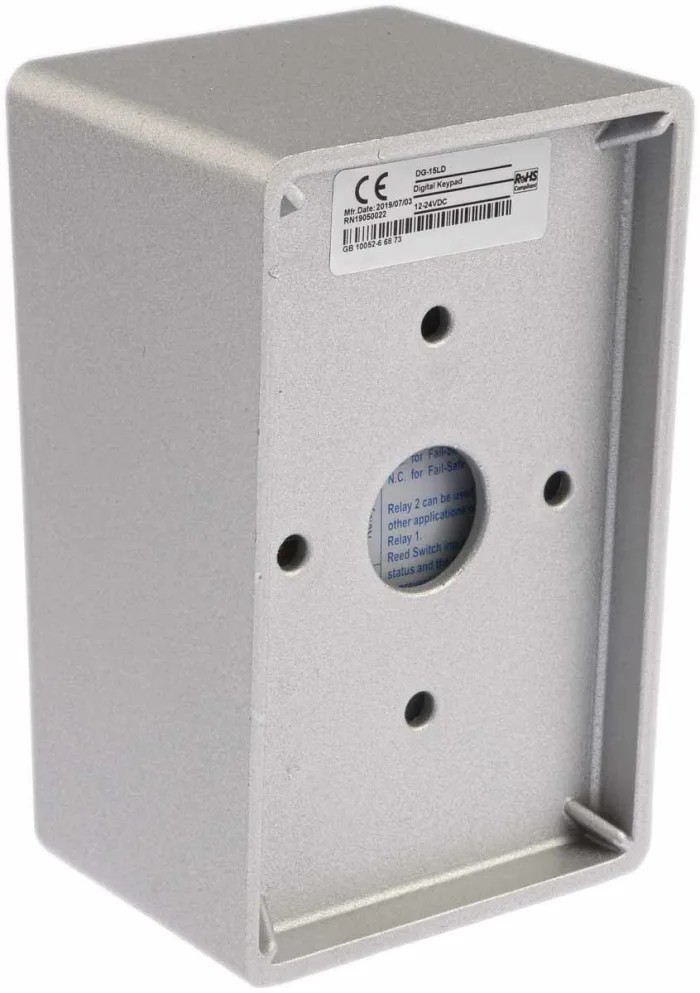

Its surface mount design with compact dimensions of 123 mm height, 77 mm width, and 64 mm depth suits various mounting requirements on doors or access points. The backlight keypad enables ease of use in low-light conditions.

This keypad lock supports up to 20 user PIN codes plus a master code, which can be programmed with 4 or 5 digit codes, suitable for multi-user environments requiring secure access management.

Dual relay outputs provide multi-control capability allowing integration with other security devices. The inclusion of a door reed switch input offers anti-tailgating functionality by detecting unauthorized door openings.

Operational feedback is provided via three LED indicators with audible beeps signaling power status, relay activation, data errors, and factory reset procedures. This enhances user interaction and troubleshooting capabilities.

Constructed with robust die-cast aluminium, the keypad and keytop material resist physical damage and environmental effects, ensuring long service life. The product originates from Taiwan, Province of China, emphasizing quality manufacturing standards.

This keypad lock is suited for industrial, commercial, and security applications requiring reliable, programmable locking mechanisms with clear user feedback and multi-user support.

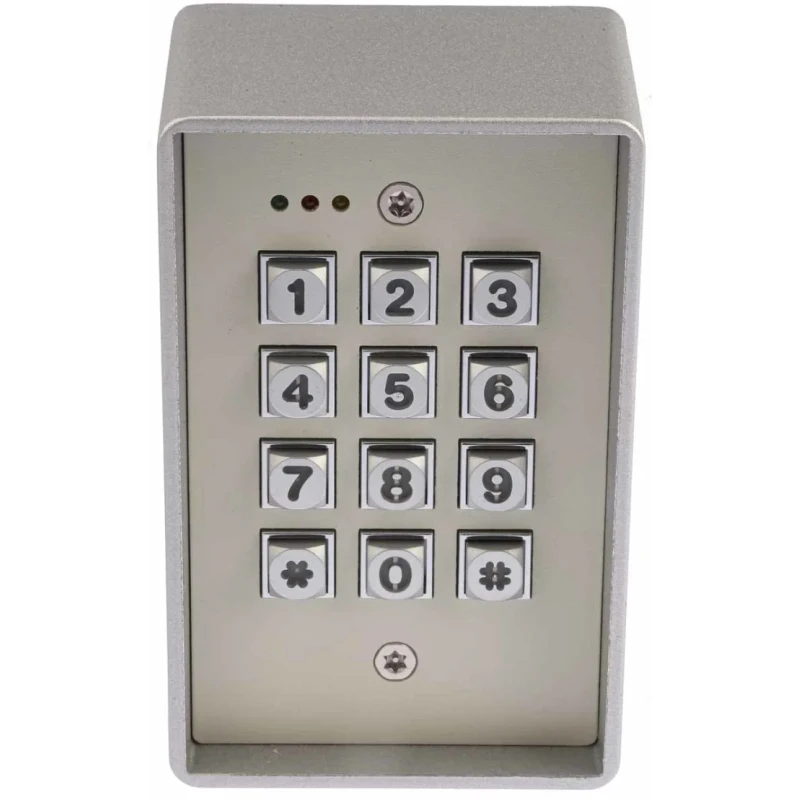

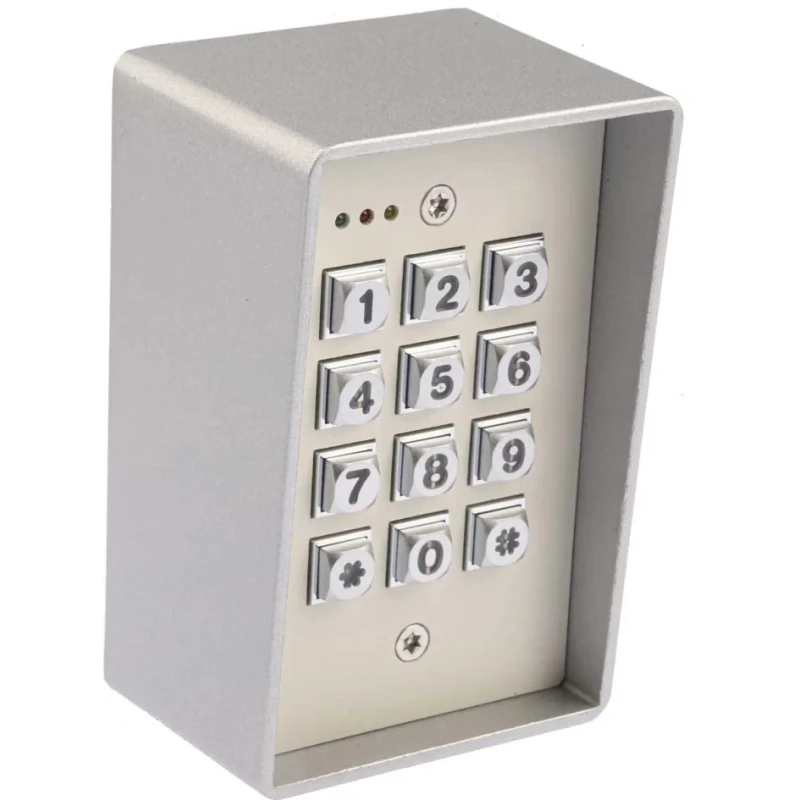

Constructed from durable die-cast aluminium for keypad and keytop material. Equipped with 12 keys and backlit keypad for enhanced visibility. Features dual relay outputs for multi-control functionality. Includes door reed switch input providing anti-tailgating security.

Comes with 3 LED indicators and audible signals for operational status. Surface mount design with compact dimensions 123(H) x 77(W) x 64(D) mm. Fully programmable via keypad and master code for customized access control.

Designed for robust and secure access in industrial and commercial environments. Explore our wide range of safety and security products at EnvMart for all your industrial and commercial access control needs.
