Industrial Consolidation Apparatus
Specifications
| Country of Origin | India |
|---|---|
| Capacity | 20 kg/cm2 |
| Diameter | 60mm |
| Material | Cast Iron |
| Applications | Industrial Laboratory |
| Pressure | 10kg/cm.sq |
| Length | 910 mm |
| Accessories | Dial gauge 0.002 mm x 5mm. Extension piece 40 mm long consolidation test forms pad of 50 for one dimensional consolidation. |
| Width | 260 mm |

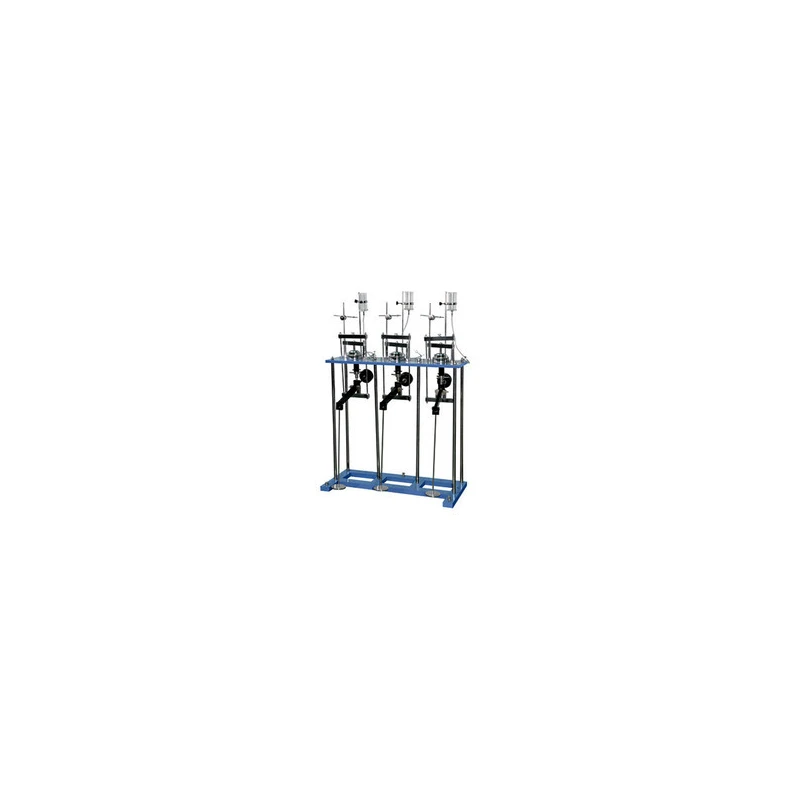

| Note | Three Gang Consolidation test apparatus is also available. |
| Heigth | 980 mm |
Key Features
- High performance
Product Description
Consolidation Apparatus Specification: The standard outfit comprises of the following items. Loading unit, maximum capacity 20kg/cm2. Having a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:1 the whole assembly being mounted on a sturdy steel frame stand. The loading unit is so designed that it can be used for consolidation cells of different diameters as well as different dia. floating ring type consolidation cells. Fixed ring type Consolidometer (Odeometer) cell assembly for testing 60mm dia x 20mm thick specimen comprising: Fixed ring for specimens 60mm dia x 20mm thick with guide ring. Top and bottom porous stones for 60mm dia specimen. Perforated pressure pad, channeled base with water inlet and gasket Flanged water jacket, water reservoir with plastic tube and pinch cock. Set of weights to give a pressure of 10kg/cm.sq. On 60mm dia specimen, comprising : 7 nos. 0.05 kg/cm2, 5nos. 0.1 kg/cm2, 6nos. 0.5kg/cm2, and 5 nos. 1.0 kg/cm2. Supplied complete as above but without dial gauge
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum loading capacity of the Industrial Consolidation Apparatus is 20 kg/cm2.
The dimensions of the apparatus are 910 mm in length, 260 mm in width, and 980 mm in height.
This model is designed to test specimens with a diameter of 60 mm and a thickness of 20 mm using fixed ring type consolidometer cell assemblies.
The Industrial Consolidation Apparatus is constructed from cast iron.
The apparatus can apply a pressure of 10 kg/cm.sq on the 60 mm diameter specimen.
Included accessories are a dial gauge (0.002 mm x 5 mm) and an extension piece (40 mm long) for consolidation test forms.
Yes, a Three Gang Consolidation test apparatus is also available as a variant.
This model is suitable for both industrial and laboratory applications.
The loading unit features a loading yoke connected to a lever arm with a counterbalancing adjustment, having a lever ratio of 1:1.
The Industrial Consolidation Apparatus is manufactured in India.
The whole assembly is mounted on a sturdy steel frame stand for stability during operation.
