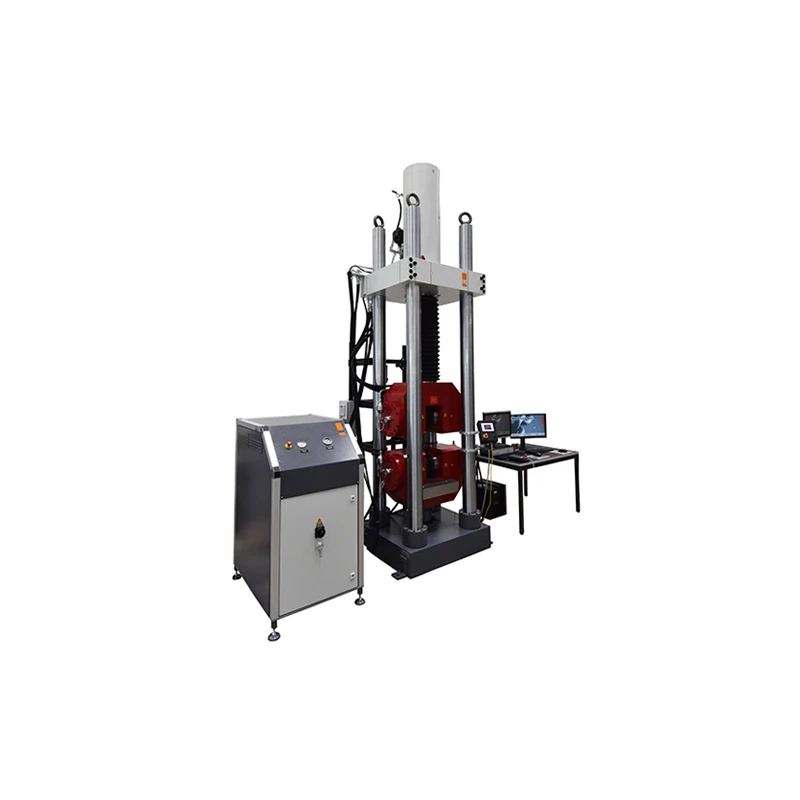

Static Hydraulic Testing Machine

Name: Static Hydraulic Testing Machine
Brand: ESPL
SKU: ABIHP
Price: 11.59 USD
Availability: InStock



SKU ABIHP Category Testing Machines Brand ESPL Condition New

Specifications

Material	Mild-Steel
Applications	Construction Industry
Usage	Used for flexural strength test of concrete specimens and the compressive strength test of building Materials
Product Type	Hydraulic
Operate Method	Semi-Automatic

Key Features

Single workspace-design provides high load frame stiffness and ergonomic working height
Rigid machine frame construction provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
Double acting (no plunger) actuator in Servo-Quality mounted on upper crosshead
Polished and hard chromium-plated columns
Movable upper crosshead with manual clamping to adjust optimum grip separation in relation to shortest and longest samples, also sample deformation
Long piston stroke for universal testing without changing the crosshead position, even when testing in conditions
Leather bellows over a complete piston rod protect piston rod from dust, dirt and scale
Anti-rotation system for the actuator prevents the natural tendency of the actuator to rotate

Product Description

Static Hydraulic Testing Machine, Static hydraulic systems are high-capacity universal testing machines. These frames use hydraulics to cost-effectively provide the forces necessary for static tension, compression, bend, and shear testing. E.g. Samples of materials or components undergo a range of tests that will be performed in order to assess how a component will behave in various conditions

Precision tension / compression rated strain gauge load cell mounted between lower grip and base platen
High resolution digital displacement transducer
Servo valve with manifold attached directly on actuator
Machine is supplied with anti-shock pads below the machine that effectively reduce and isolate vibrations, noise, as well as elastic storage decoupling
Supplied with anchors for fixation on laboratories floor
Durable structured coating (or paint)
Bolts for machine lifting
The machine is free-standing on shock absorbers, requiring no special foundations
Ergonomic working height with unchanged height of lower grip allows an easy sample insertion

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It is used for flexural strength tests of concrete specimens and compressive strength tests of building materials, primarily in the construction industry.

The machine is constructed from mild steel, providing a robust structure for testing.

This model operates in a semi-automatic manner, allowing for efficient testing processes.

It features a precision tension/compression rated strain gauge load cell mounted between the lower grip and base platen.

The upper crosshead is movable with manual clamping to adjust the optimum grip separation for various sample sizes, allowing for testing of both short and long samples.

Yes, it includes leather bellows that protect the piston rod from dust, dirt, and scale, enhancing the longevity of the machine.

It uses a double acting actuator mounted on the upper crosshead, which is designed for servo-quality performance without a plunger.

The machine is supplied with anti-shock pads that effectively reduce and isolate vibrations and noise, ensuring stable operation.

Specific dimensions are not provided; however, it is designed to have an ergonomic working height for easy sample insertion.

The servo valve is attached directly on the actuator, allowing for precise control of the hydraulic system during testing.
