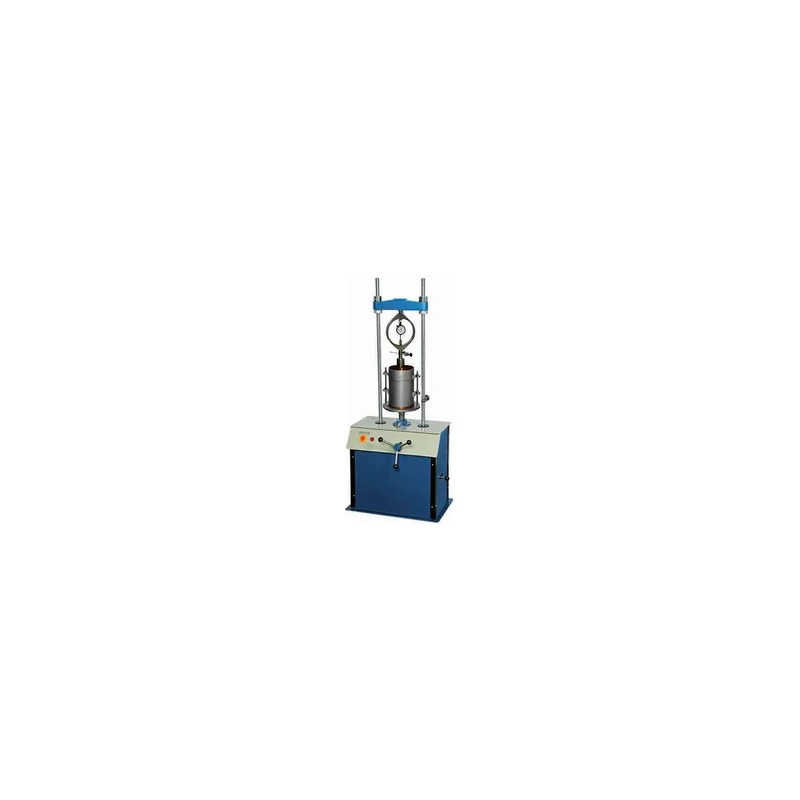

Laboratory California Bearing Ratio Apparatus
Specifications
| Country of Origin | India |
|---|---|
| Capacity | 50kn ( 5000 kgf) |
| Diameter | 50mm |
| Applications | Industrial |
| Color | Blue |
| Model | SMEW-0033 |
| Weight | 5 kg |
Key Features
- High performance
Product Description
Laboratory California Bearing Ratio Apparatus Load Frame, 50kn ( 5000 kgf) Capacity, 3 SpeedsMould 150mm ID x 175mm highPerforated Base Plate forExtension Collar, 150mm ID x 50mm highPenetration Piston, 50mm face diaAdjustable Bracket, for Penetration Dial GaugeCircular Metal Spacer Disc. With detachable handle, 148 mm dia x 47.7 mm high time.Annular Metal Weight, 2.5kg, 147mm dia with 53 mm dia central holePerforated Metal Weight 2.5 kg. 147mm dia, with 53mm dia softPerforated Plate, 148mm dia, with adjustable stem and lock nutMetal Tripod for Dial GaugeCutting CollarRammer 2.6kg, 310mm controlled dropRammer 4.9kg, 450mm controlled dropProving Ring Capacity 50 KNDial Gauge, 25 mm travel, 0.01mm least count Optional Extras:Annular Metal Weight 5 kg, 147mm dia with 53 mm dia central holeSlotted Metal Weight 5 kg 147mm dia with 53mm dia. Slot
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Laboratory California Bearing Ratio Apparatus has a maximum load capacity of 50 kN (5000 kgf).
The mould has an inner diameter of 150 mm and a height of 175 mm.
The perforated base plate is designed to support the extension collar, which also has a diameter of 150 mm and a height of 50 mm.
The dial gauge has a travel range of 25 mm with a least count of 0.01 mm.
The apparatus includes an annular metal weight of 2.5 kg and a perforated metal weight of 2.5 kg, both with a diameter of 147 mm and a central hole of 53 mm.
This model is colored blue.
It is suitable for industrial applications, specifically for testing soil strength using the California Bearing Ratio method.
The total weight of the apparatus is 5 kg.
Optional extras include an annular metal weight of 5 kg and a slotted metal weight of 5 kg, both with a diameter of 147 mm and a central hole of 53 mm.
The adjustable bracket is used for mounting the penetration dial gauge, allowing for precise measurements during testing.
The Laboratory California Bearing Ratio Apparatus is manufactured in India.
This model includes a rammer weighing 2.6 kg with a controlled drop height of 310 mm and a rammer weighing 4.9 kg with a controlled drop height of 450 mm.
