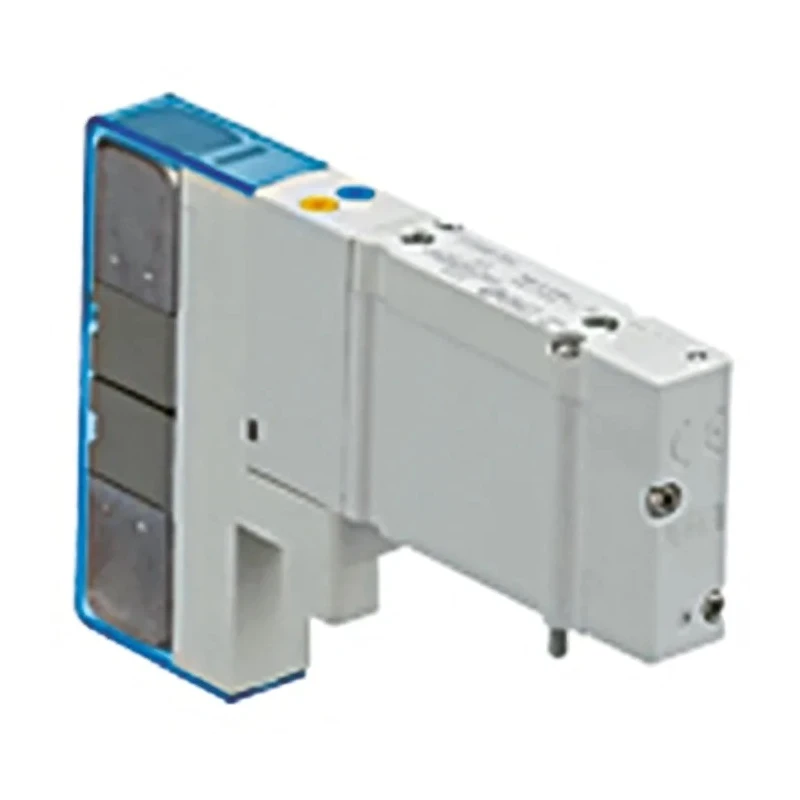

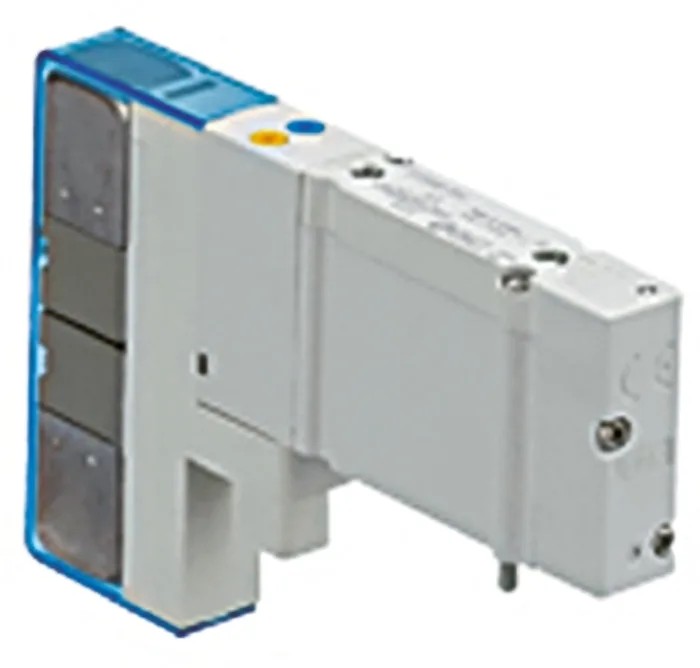

SMC Pneumatic Solenoid 5-Port Pilot-Operated Control Valve 24V DC Aluminium Body SY5000

SMC SY5400-5U1 is a high quality pneumatic solenoid 5-port pilot-operated control valve engineered with an aluminium body and nitrile rubber seals to ensure durability and reliable operation. It operates on 24V DC voltage and is designed for use in a wide range of industrial environments where compact size and high flow performance are critical.

This valve series offers a normally closed (NC) valve function combined with 3 operating positions, providing precise control over pneumatic circuits. It supports a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 0.7 MPa, suitable for varied pneumatic automation tasks.

The valve features an M5 metric port size and female gender port connections built to metric thread standards, making it compatible with most modern pneumatic manifolds and assemblies. Its compact dimensions (97 mm length, 80 mm height, and 40 mm width) make it ideal for installations with space constraints.

With a maximum flow rate of 746 L/min, this valve ensures efficient pneumatic fluid transfer to enhance system performance. The operating temperature range from -10°C to 50°C enables operation in diverse industrial, manufacturing, laboratory, and automation settings.

Base mounting style is supported for sturdy installation on manifolds or pneumatic control assemblies. The use of nitrile rubber (NBR) seals improves valve life by providing excellent sealing and wear resistance. This valve reduces power consumption compared to conventional pneumatic valves, lowering operational costs.

SMC's SY5400-5U1 pilot-operated control valve is widely used in industrial automation, assembly lines, pneumatic control panels, HVAC, and other fluid power applications. It offers outstanding reliability, extended service life, and energy-saving benefits that reduce downtime and operational expenses.

The valve operates in normally closed (NC) function with 3 positions. Maximum operating pressure is 0.7 MPa, and maximum pilot pressure is 0.7 MPa. The valve delivers a high flow rate of 746 L/min to support efficient pneumatic control.

Constructed with nitrile rubber (NBR) seals ensuring reliable tightness and longevity. Compact design with dimensions 97 mm length, 80 mm height, and 40 mm width. Operates reliably in temperature range from -10°C to 50°C for diverse industrial use.

Base mounting type suitable for manifold or direct mounting. Female port gender with metric thread standards for compatibility with industrial pneumatic systems. Reduces power consumption providing energy efficient pneumatic actuation.

Designed for industrial pneumatic, manufacturing, and automation applications requiring precise control. Explore EnvMart for more advanced Pneumatic Solenoid Valves and accessories suitable for your industrial automation and fluid power needs.
