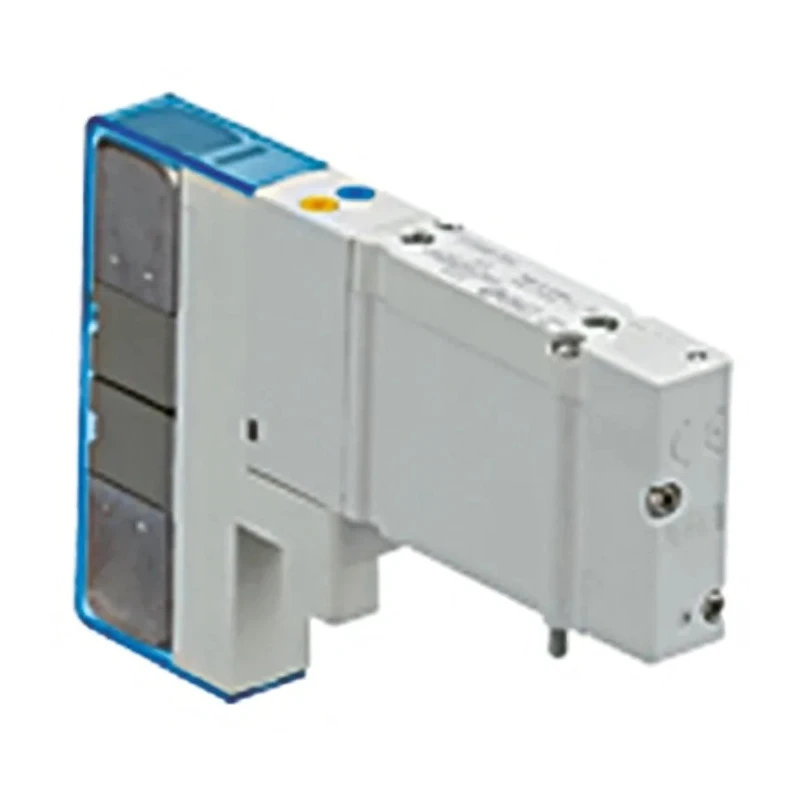

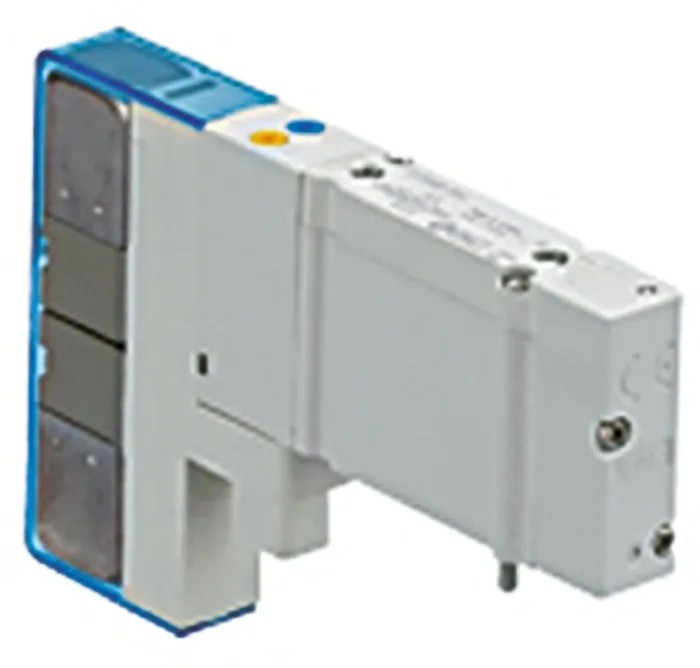

SMC Pneumatic Solenoid Pilot-Operated Control Valve 24V DC 0.7 MPa 746 L/min Flow SY5000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Pilot-Operated Control Valve 24V DC 0.7 MPa 746 L/min Flow SY5000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	France
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	80mm
Length	97mm
Model	SY5000
Width	40mm
Mount Type	Base
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	746L/min
Minimum Pilot Pressure	0.1MPa
Valve Function	NC
Port Gender	Female

Key Features

Designed for base mounting with five female M5 ports for compact piping.
Operates as normally closed 2-position valve for directional airflow control.
Die-cast zinc body offers durable mechanical support.
Nitrile rubber seals resist common pneumatic media damage.
Operates reliably between -10°C and 50°C ambient temperatures.
Supports pilot pressures from 0.1 to 0.7 MPa for responsive cycling.
Enables standard 5/2 pneumatic circuit layouts with separate supply, exhaust, and actuator ports.
Ideal for controlling single-acting cylinders and air logic in automated manufacturing.

Product Description

SMC SY5300-5U1-NA pneumatic solenoid pilot-operated control valve is engineered for precise directional airflow control in automated pneumatic systems. The valve features a robust die-cast zinc body and nitrile rubber (NBR) seals to ensure durability and reliable sealing under typical industrial conditions. It is a normally closed, two-position valve using pilot actuation, designed specifically for base mounting on a manifold or fixed plate, enabling secure installation in pneumatic control racks.

This valve supports a maximum flow rate of 746 L/min and can operate continuously at pressures up to 0.7 MPa, providing rapid actuator response and stable system performance. The valve accepts pilot pressures from 0.1 MPa minimum up to 0.7 MPa maximum, ensuring flexible operation in various pneumatic circuit designs.

The unit has five female M5 size ports, allowing compact and efficient piping connections suitable for standard 5/2 pneumatic configurations. It supports a temperature range from -10°C to 50°C, making it suitable for most indoor industrial environments. The valve function is normally closed (NC), providing safe fail-state functionality in control applications.

Applications include controlling single-acting cylinders in assembly lines, air logic switching within machine control panels, pilot control in larger pneumatic valve networks, and valve actuation for pneumatic tools requiring quick response times.

Designed for base-mounted installation on manifolds or plates. Compact female M5 ports for easy pneumatic system integration. NBR seal material enhances compatibility with common pneumatic media. Die-cast zinc body ensures mechanical strength and longevity.

Suitable for industrial automation, assembly, HVAC, and manufacturing applications.
