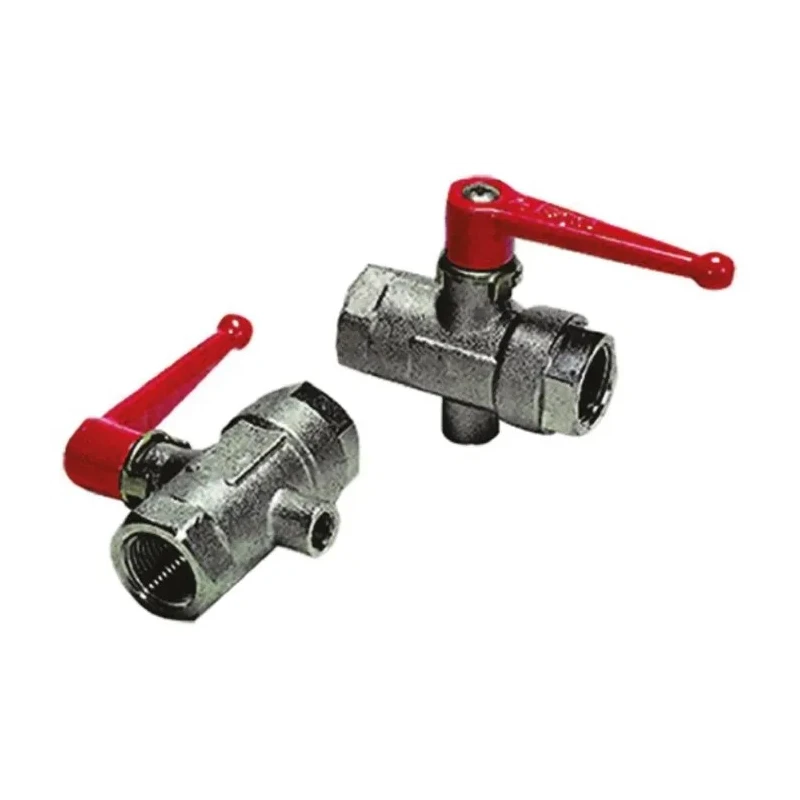

Legris Sand Blasted Nickel Plated BSPP Female Inlet and Outlet 1/4 in Ball Valve 0489 07 13

Legris 0489 07 13 Sand Blasted Nickel Plated BSPP Ball Valve is a high quality fluid control valve with BSPP female inlet and outlet connection ports sized 1/4 inch.

This ball valve incorporates a sand blasted nickel plated brass body that ensures excellent resistance to scaling and corrosion in industrial fluid power applications. The polished brass ball is sealed on each side with nylon ring seals reinforced by compensating nitrile “O” rings to maintain tight sealing even with wear over time.

The valve is designed to operate within a temperature range of -20 to +80 degrees Celsius, making it suitable for a wide variety of mechanical, HVAC, plumbing, and manufacturing systems. The stem is made from brass and uses an NBR seal to prevent leaks around the valve shaft.

Featuring a retaining nut constructed from nickel plated brass, this valve is easy to disassemble for inspection or maintenance. Its padlockable and panel mountable design enhances security and installation versatility. An in-line threaded vent port allows for effective collection of vented fluids during operation.

Legris 0489 07 13 ball valve is ideal for applications requiring reliable fluid flow control, high sealing integrity, and rugged construction for long service life in demanding industrial and laboratory environments.

The ball valve features a sand blasted nickel plated brass body for enhanced durability. Polished brass ball provides excellent sealing and corrosion resistance. Inlet and outlet connections are BSPP standard, both female thread types.

Designed for working temperatures from -20 to +80 °C for versatile applications. Equipped with compensating “O” rings and NBR stem seal for optimum sealing performance. Retaining nut is made from nickel plated brass to maintain assembly integrity.

This padlockable and panel mountable valve allows collection of vented fluids via a threaded vent port. The valve’s design prevents leakage even upon seal wear due to nylon ring seals supported by nitrile “O” rings. Explore EnvMart's wide range of Industrial Valves and fittings to find compatible components for your system needs.
