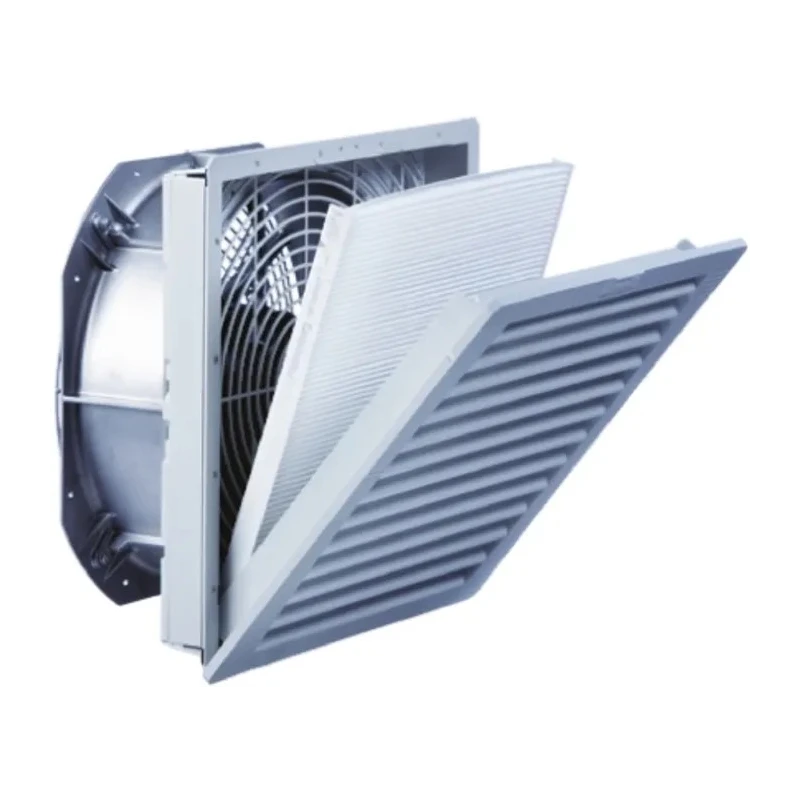

Pfannenberg PF 67.000 SL Series Filter Fan 400V AC 165W 705 m³/h Filtered Airflow 2125 m³/h Unimpeded Airflow 320mm x IP55
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pfannenberg |
| Colour | RAL 7035 (except Manu Part No suffix 50 : RAL 9011 / Black) |
| Model | IP55 |
| IP Rating | IP55 |
| Noise Level | 69dB |
| Series | PF 67.000 SL |
| Configuration | Flatpack |
| Input power | 165W |
| Installation Depth | 150mm |
| Input current | 230mA |
| Terminal type | Spring Terminal |
| Supply Voltage | 400V ac |
| Bearing Type | Ball |
| Standards/Approvals | cULus, RoHS, UL, EN, CE |
| AC or DC Operation | AC |
| Unimpeded Air Flow | 2125m³/h |
| Filtered Air Flow | 705m³/h |
| Face Height | 320mm |
| Face Width | 320mm |
Key Features
- The filter fan operates at 400V AC with a power input of 165W.
- It provides an unimpeded airflow of 2125 m³/h and filtered airflow of 705 m³/h.
- The device features a flatpack configuration with a 320 mm x 320 mm face dimension.
- Noise level is maintained at 69 dB ensuring quiet operation.
- The fan incorporates a ball bearing type for longevity and smooth performance.
- It has an IP55 rating for dust and water resistance, suitable for outdoor use.
- The spring terminal allows flexible wiring with a 90° rotatable terminal position.
- Easy installation with a 'Click and Fit' design requires no hardware fixings.
Product Description
Pfannenberg IP55 Filter Fan model is a high-performance industrial filter fan operating at 400V AC and consuming 165W power. It features an unimpeded air flow of 2125 m³/h and a filtered air flow of 705 m³/h, ideal for maintaining optimal cooling in industrial enclosures and HVAC systems.
This filter fan uses a patented pleated fabric filter and specialized louvre design to maximize airflow while providing G4 level filtration. The unique water and dust pre-separation in the lamellas protects the filter mat, greatly extending the service life and reducing maintenance frequency.
Its flatpack configuration measures 320 mm by 320 mm with an installation depth of 150 mm. The device integrates a ball bearing for smooth and reliable operation under demanding environments.
The IP55 rated housing ensures exceptional protection against dust ingress and water jets, making it suitable for outdoor installations without additional shelter. The spring terminal design allows flexible wiring with a repositionable terminal for various installation needs.
The 'Click and Fit' design eliminates the need for screws or fixings, allowing easy and hardware-free installation and filter replacement. The reversible air direction configuration enables the fan to be used either for intake or exhaust airflow.
This generation of Pfannenberg filter fans is fully certified with cULus, RoHS, UL, EN, and CE approvals. It also features a noise level of 69 dB, suitable for industrial environments where noise control is important.
Applications include industrial electrical cabinets, automation enclosures, HVAC, manufacturing, water treatment, and commercial systems needing efficient air filtration and flow management.
The filter fan operates at 400V AC with a power input of 165W. Provides an unimpeded airflow of 2125 m³/h and filtered airflow of 705 m³/h. Flatpack 320 mm x 320 mm configuration with 150 mm installation depth. Ball bearing type ensures smooth, reliable operation.
IP55 rating for dust and water ingress protection. Spring terminal with 90° orientation flexibility. 'Click and Fit' design for easy installation and maintenance. Patented water and dust pre-separation enhances filter longevity.
Certified to cULus, RoHS, UL, EN, and CE standards. Noise level of 69 dB for quiet operation. Explore more industrial cooling solutions and Filter Fans on EnvMart for efficient thermal management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an unimpeded airflow of 2125 m³/h and a filtered airflow of 705 m³/h, making it suitable for efficient cooling in industrial applications.
The Pfannenberg PF 67.000 SL operates at a power input of 165W.
The installation depth of the filter fan is 150 mm, allowing for various mounting options in tight spaces.
It has a noise level of 69 dB, which is designed to ensure quiet operation in industrial environments.
The fan features an IP55 rating, providing protection against dust ingress and water jets, making it suitable for outdoor use.
It incorporates a ball bearing type, which ensures smooth and reliable operation under demanding conditions.
The face dimensions of this unit are 320 mm x 320 mm, making it compatible with standard mounting configurations.
It operates at a supply voltage of 400V AC and has an input current of 230 mA.
The installation is simplified with a 'Click and Fit' design that requires no hardware fixings, allowing for easy setup and maintenance.
The Pfannenberg PF 67.000 SL is certified with cULus, RoHS, UL, EN, and CE approvals, ensuring compliance with various standards.
Yes, this model features a reversible air direction configuration, allowing it to be used for either intake or exhaust airflow.
It is ideal for use in industrial electrical cabinets, automation enclosures, HVAC systems, and manufacturing environments requiring efficient air filtration.
