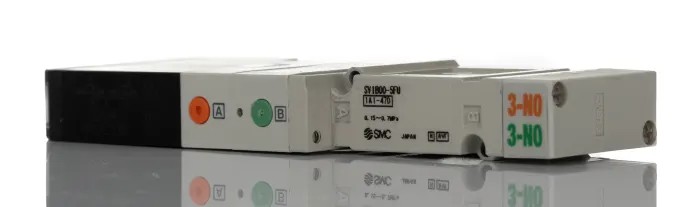

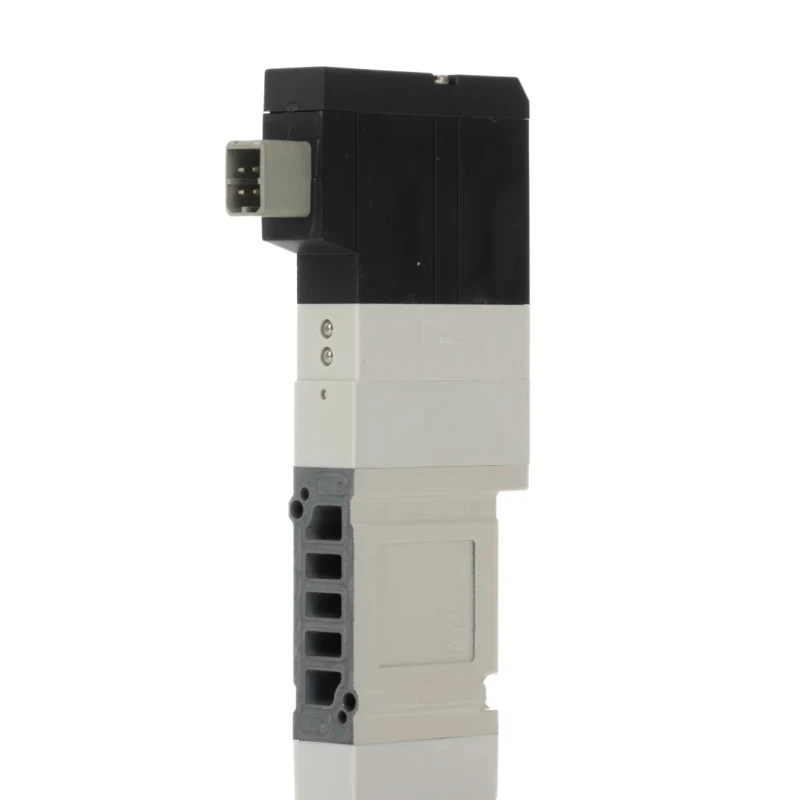

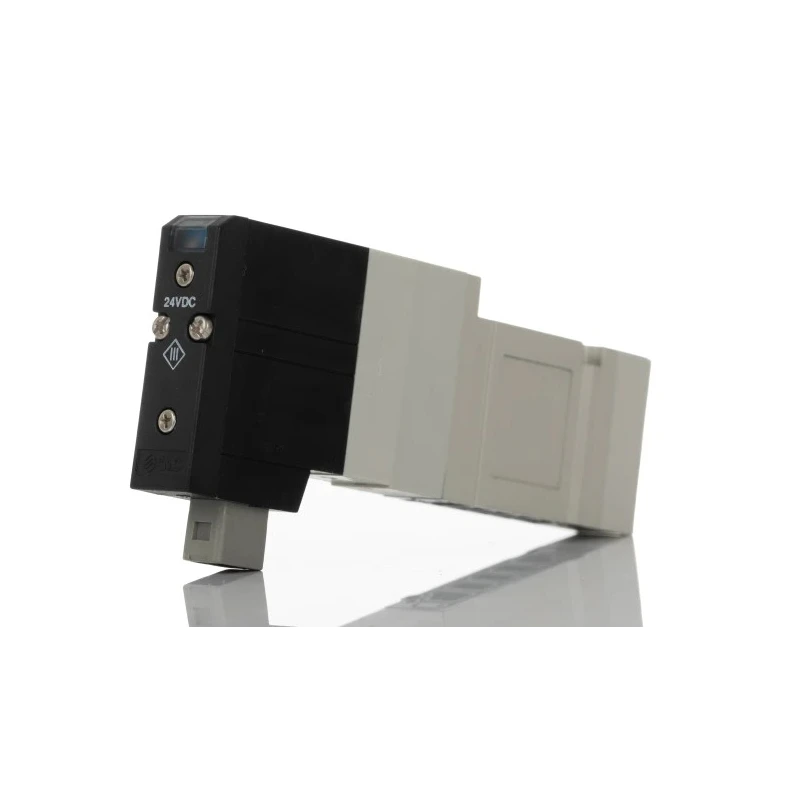

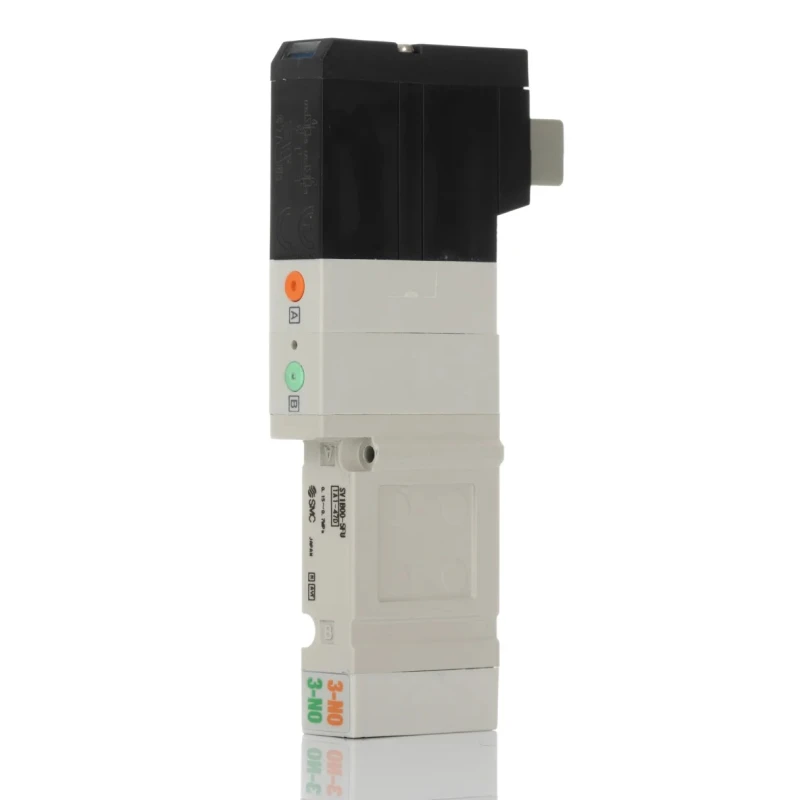

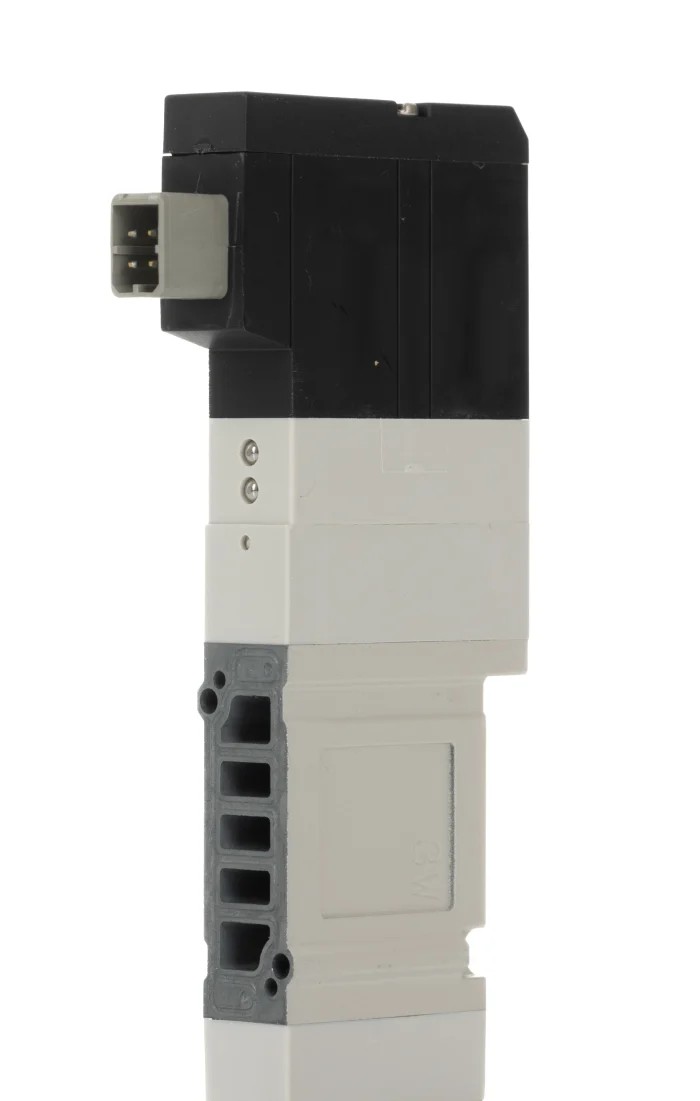

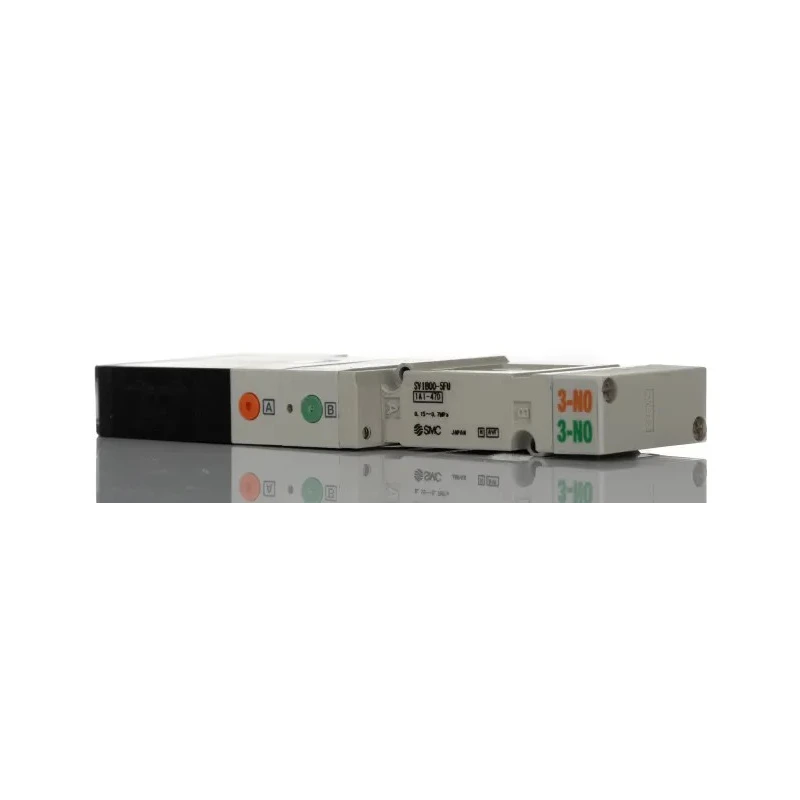

SMC Pneumatic Solenoid Valve 5-Port Base Mount Die Cast Zinc Body 24V DC 0.7 MPa SV1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5-Port Base Mount Die Cast Zinc Body 24V DC 0.7 MPa SV1000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	80mm
Length	97mm
Model	SV1000
Width	40mm
Mount Type	Base
Series	SV1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	276L/min
Minimum Pilot Pressure	0.1MPa
Valve Function	NC
Port Gender	Female

Key Features

The valve features base mounting for easy assembly in manifolds.
It employs nitrile rubber (NBR) seals to ensure durability and leak resistance.
Operating temperature ranges from -10°C up to 50°C for wide industrial applicability.
The valve function is normally closed (NC) with 2 positions for control flexibility.
Compact dimensions of 97mm length, 80mm height, and 40mm width facilitate installation in tight spaces.
The maximum flow rate of 276 L/min ensures efficient pneumatic circuit performance.
Female M5 port connections provide standardized interfacing for pneumatic lines.
Constructed with die cast zinc body material for robustness and corrosion resistance.

Product Description

SMC SV1000 Pneumatic Solenoid Valve is a high-quality solenoid valve designed for controlling pneumatic fluid flow in industrial automation and fluid power systems. Featuring a 5-port base mount design with female M5 ports, this valve ensures versatile system integration. The valve body is made of durable die cast zinc, providing excellent strength and corrosion resistance, suitable for demanding manufacturing or process environments.

This valve operates on 24V DC voltage with a maximum operating pressure of 0.7 MPa, making it ideal for medium-pressure pneumatic applications including assembly automation, material handling, and HVAC systems. It uses nitrile rubber (NBR) seals to maintain reliable sealing and long service life.

The normally closed (NC) valve function with two positions enables precise control of pneumatic actuators and cylinders. The valve supports a maximum flow rate of 276 L/min accommodating rapid pneumatic cycling requirements.

Compact dimensions (97 mm length, 80 mm height, 40 mm width) allow installation within manifold blocks or confined locations. Operating temperature ranges from -10°C to 50°C enabling use in diverse indoor and controlled outdoor environments.

The series incorporates multi-pin connectors facilitating simple manifold replacements and system reconfigurations without major disassembly, minimizing downtime. The valve’s design optimizes ease of maintenance and flexible station configurations in automated systems.

Applications include manufacturing automation, pneumatic controls in laboratories, packaging machinery, and factory pneumatic networks.

This product belongs to the Pneumatic Solenoid Valves category, suitable for industrial fluid power, pneumatic tool control, and automation systems. For additional similar products, explore the Industrial Valves & Valve Fittings section at EnvMart for optimized pneumatic solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of the SMC Pneumatic Solenoid Valve SV1000 is 0.7 MPa.

This model operates on a voltage of 24V DC.

The maximum flow rate of the SV1000 valve is 276 L/min.

The dimensions of the valve are 97 mm in length, 80 mm in height, and 40 mm in width.

This valve features female M5 port connections for standardized interfacing.

The body of the SMC SV1000 is made of die cast zinc, which provides strength and corrosion resistance.

The operating temperature range for this valve is from -10°C to 50°C.

The SV1000 solenoid valve has 5 ports.

The valve function of this model is normally closed (NC) with 2 positions.

The seal material used in the SV1000 valve is nitrile rubber (NBR).

This valve is suitable for applications in manufacturing automation, pneumatic controls in laboratories, packaging machinery, and factory pneumatic networks.

The SV1000 valve uses solenoid actuation.
